Silvus StreamCaster 4240-EP

The following chapter gives a basic overview of the Silvus StreamCaster 4240-EP.

PreviousDeltaQuad ToughbookNextAttaching the Battery

Last updated 7 months ago

Chapter Index:

The DeltaQuad Evo TAC/TAC+ comes with the Silvus StreamCaster 4240-EP, which consists of a handheld radio modem, two omnidirectional antennas, and a detachable battery. A breakout cable is included to establish the connection to the DeltaQuad Toughbook.

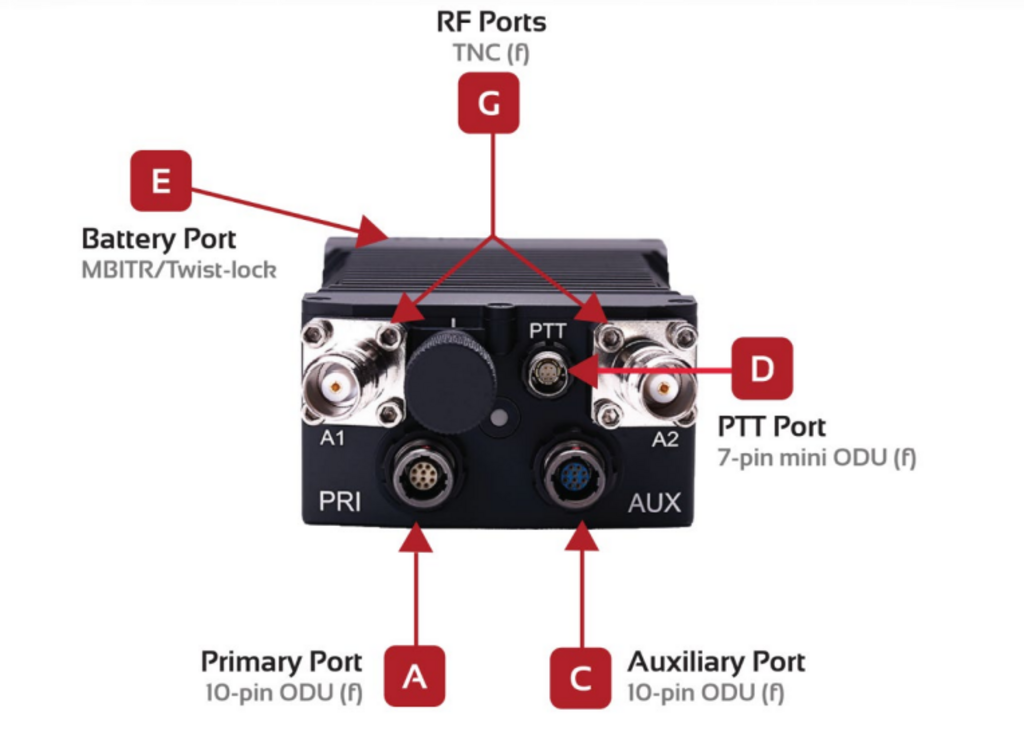

At the top of the radio modem, you find the following connections:

For operation with the DeltaQuad Evo TAC/TAC+, only the RF Ports (G), the Primary Port (A), and the Battery Port (E) will be used.

Attaching the Battery
Attaching the Antennas
Charging the Silvus Battery
Connecting the Breakout Cable
Storing the Silvus StreamCaster
