Advanced

This section provides an overview of the Advanced tab and the items relevant to the operator.

PreviousVehicle OverviewNextController

Last updated 7 months ago

The Advanced tab can be accessed via the AMC menu.

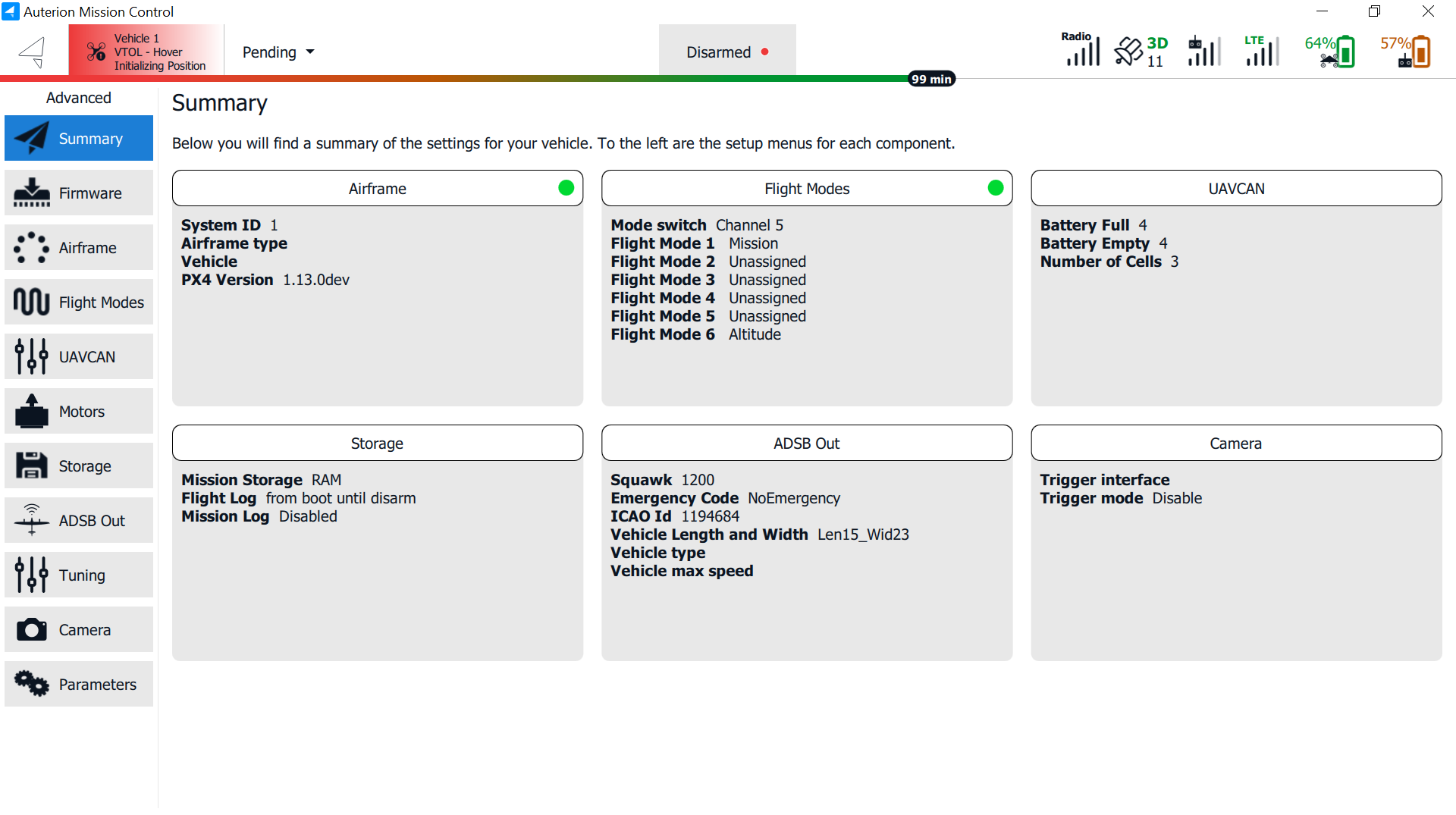

Summary

The first tab is the Summary menu, which displays the vehicle settings. The tabs on the left side are the menus for configuring each of the displayed components.

These settings and menus are not relevant for typical drone operators and should not be changed by end users, except when instructed.

Storage Setup

The Storage Setup is crucial for missions where the collected data must remain confidential under all circumstances.

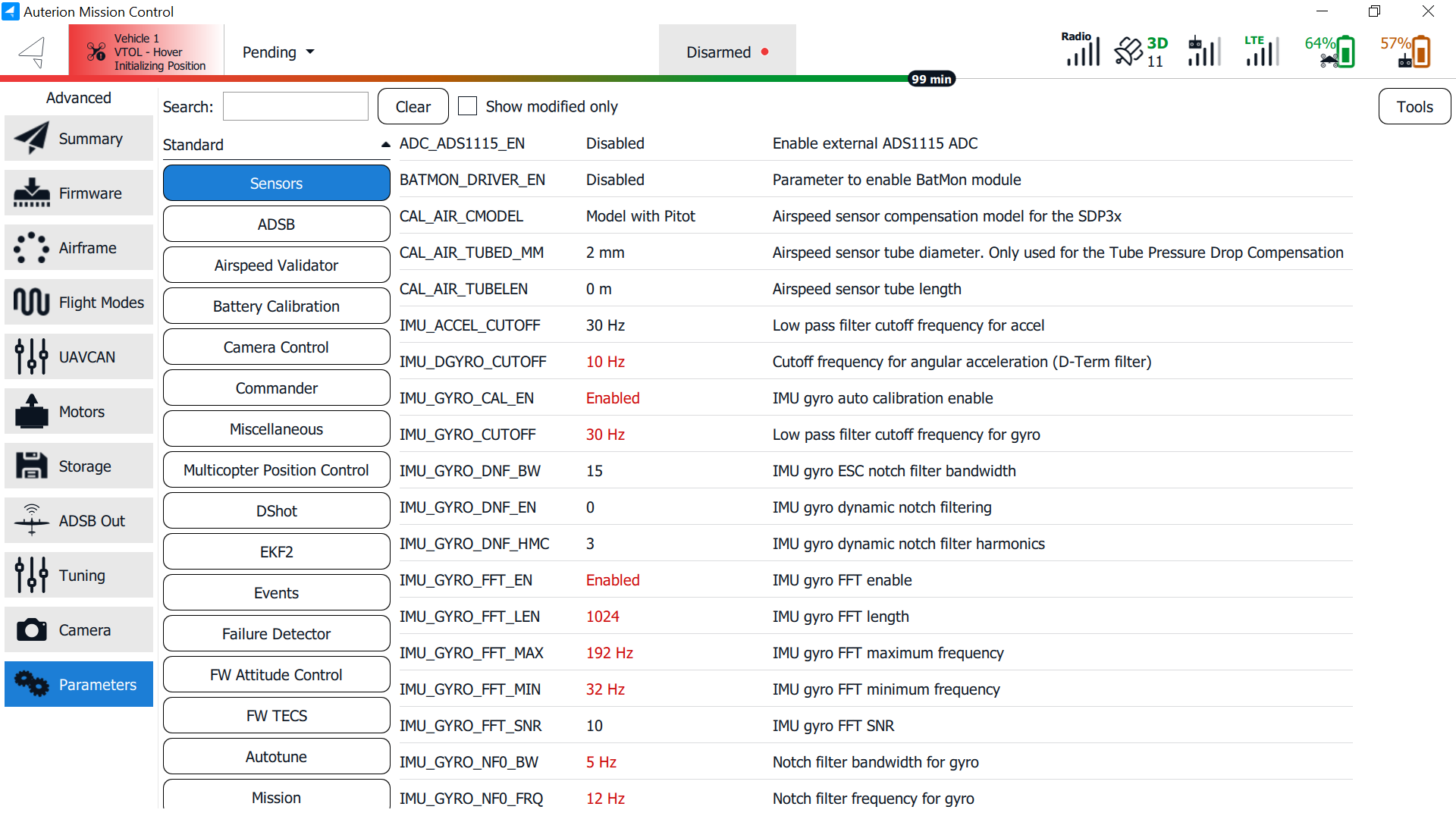

Parameters

In the Parameters tab, you can apply under-the-hood changes to the vehicle settings. This is relevant only for special operations that fall outside the standard user profile, such as Offshore or GPS-denied Operations. For more information on which parameters can be changed, please refer to the Advanced Flight chapter.

For more information about recording Flight Logs and the available options to disable log recording, please read .

here
