  1. Maintenance

Flight Logs

This chapter discusses flight logs and outlines three methods for retrieving log files from the DeltaQuad Evo.

PreviousPropeller ReplacementNextSharing log files via Auterion Suite

Last updated 8 months ago

The DeltaQuad Evo records onboard logs containing extensive information about each flight.

These logs serve multiple purposes, including flight performance analysis and troubleshooting. By examining them, you can assess the drone’s operational efficiency, identify potential issues, and make data-driven decisions to enhance future flights. The following three sections discuss how to retrieve the log files.

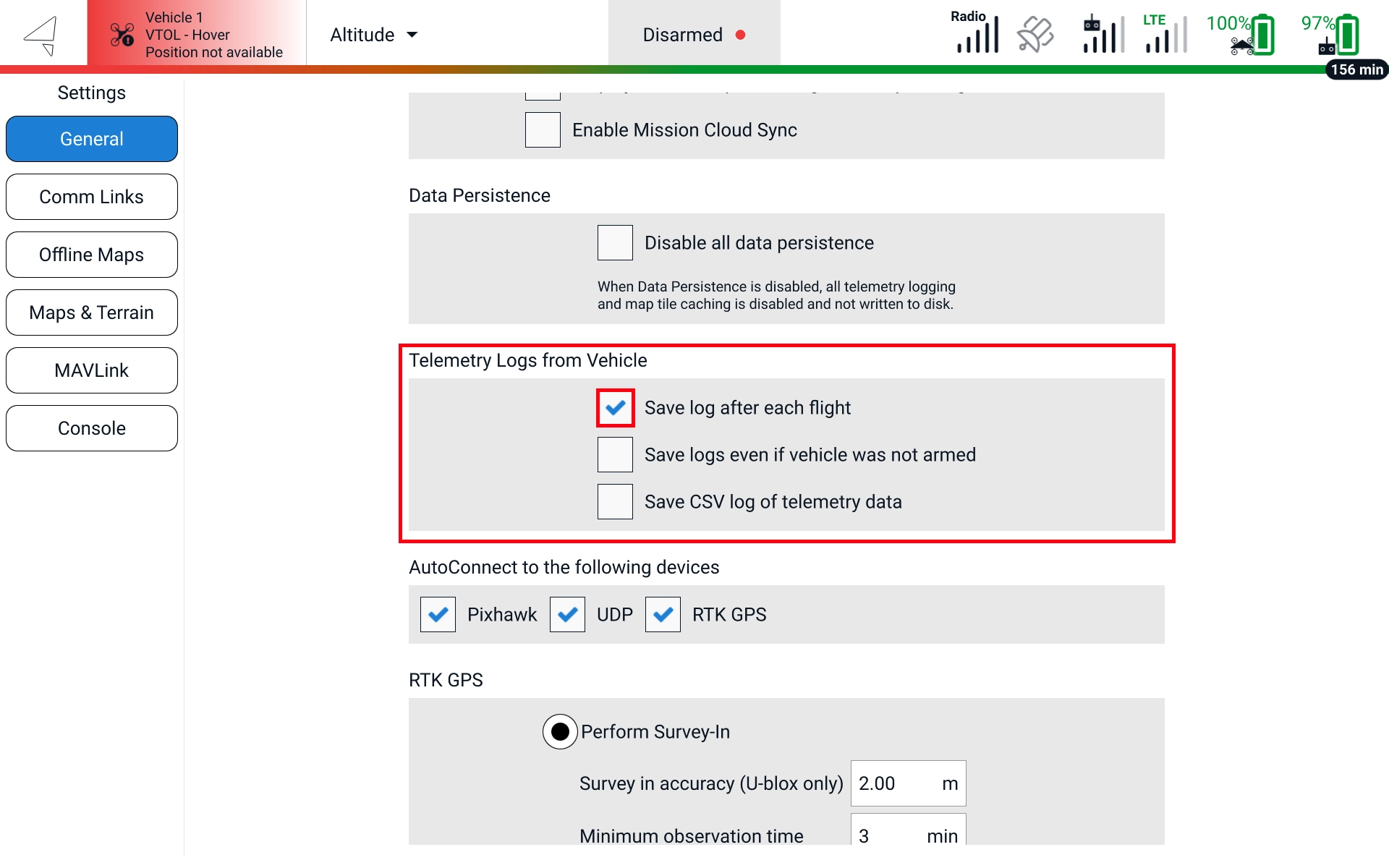

Basic telemetry logging in AMC is enabled by default. To disable it, open AMC, go to AMC Menu -> Settings -> General. Under Telemetry Logs from Vehicle disable Save log after each flight.

On the DeltaQuad Evo TAC/TAC+, more detailed logging on the flight controller is set by default to log without location data and is not encrypted. To turn this logging off or to set it to also log location-related data AMC must run in Advanced Mode (click 5 times on the AMC Menu to get the option).

Go to AMC Menu -> Advanced -> Storage while AMC is connected to the vehicle. Note that this setting persists through vehicle reboots.

Log Location Data can be set to Enabled, Disabled, and Only Local Position.

Warranty claims will only be considered valid and processed if accompanied by the relevant log files documenting the incident in question. Failure to provide the necessary log files may result in the denial of the warranty claim. By submitting a warranty request, you acknowledge and agree that the presence of log files is a mandatory requirement for warranty evaluation and potential fulfillment.

Sharing log files via Auterion Suite
Downloading log files via the GCS
Downloading a log file directly from the DeltaQuad Evo
