AMC Menu

This section provides an overview of all available options and settings in the AMC menu.

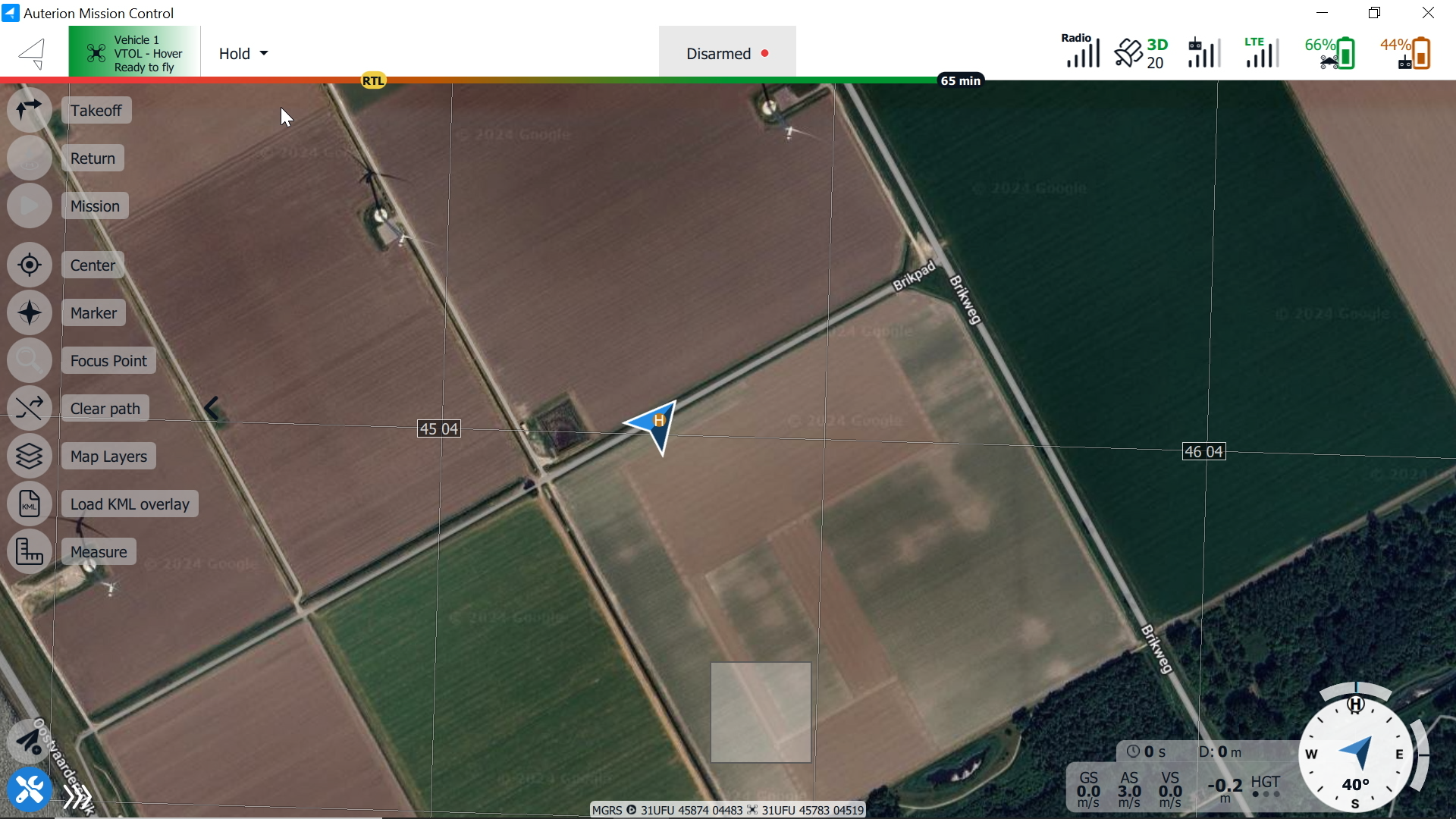

Auterion Mission Control offers two main views. In the Fly View, you execute and monitor missions.

The Plan View is used to plan autonomous missions for your vehicle. Once the mission is planned and uploaded to the DeltaQuad Evo, you switch to the Fly View to perform the Pre-flight Checks and execute the mission.

You can switch between the two views by clicking on the AMC Menu icon.

The following two chapters will explain in detail the Fly View and the Plan View layout.

The AMC Menu gives access to the following sub-menus and settings.

For ease of use, all presented sub-menus and settings are those accessible when operating AMC in Advanced Mode and when the vehicle is powered on and connected to the GCS. If you cannot find a menu, switch to Advanced Mode and connect the vehicle to the GCS.

Tab
Name
Description

Fly

Fly View is used for all operations related to monitoring and controlling vehicle flight. It is the default view displayed on application start.

Plan

Plan View is used to plan autonomous missions, which may include Survey Scans, Corridor Scans, and Geofences.

Vehicle Overview

The Vehicle Overview offers operators an easy way to access the Sensors, Connectivity, and Active Tasks tabs. At the bottom of the window, the automated Preflight Checklist, Safety, and Cloud features are accessible. Under the More tab, GPS Advanced Settings are available if applicable (Tactical and Stealth Editions only).

Advanced

Provides a summary of the vehicle settings and access to sub-menus such as Storage and Parameters. These settings and menus are not relevant for typical drone operators and should not be changed by end users, except when instructed.

Controller

This menu provides the option to test and set up a traditional remote controller or a USB joystick, such as the DeltaQuad Evo handheld controller.

Photos

View photos and videos downloaded from the vehicle. The file location on the GCS can be accessed with a single click.

Analyze

Gives access to Log Download, GeoTag Images, MAVLink Console, and MAVLink Inspector. These settings and menus are not relevant for typical drone operators and should not be changed by end users, except when instructed.

User Acount

Log in or log out of your Auterion account. This associates pilots with flights on the Auterion Suite and is only relevant when using the cloud service.

Settings

Gives access to the Application Settings.
