Land Mode Settings (Advanced Mode)

This section covers the Land Mode Settings.

PreviousGeofence Failsafe TriggerNextAir Unit Radio Swap

Last updated 7 months ago

It is recommended to leave these settings unchanged.

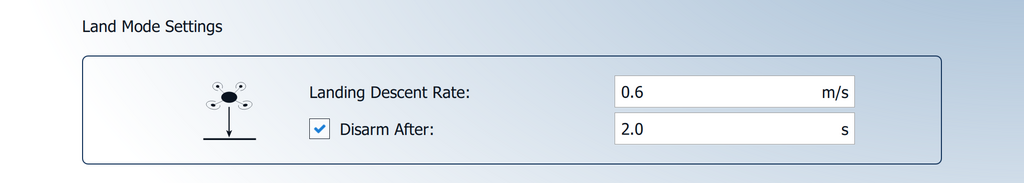

The Land Mode Settings control the landing behavior of the DeltaQuad Evo.

Default Landing Descent Rate: 0.6 m/s

Default Disarm After: 2 s (enabled)

In windy conditions, the vehicle will automatically adjust to a lower descent rate to improve stability.

The DeltaQuad Evo goes through three stages during the descent in multirotor mode:

  • Stage 1: The vehicle descends from the set landing altitude to 8 meters above ground at a maximum of 1.5 m/s.

  • Stage 2: The vehicle descends from 8 meters to 2 meters, reducing its descent speed to 0.6 m/s at 2 meters above the ground.

  • Stage 3: The vehicle continues its descent from 2 meters to 30 cm above the ground, reaching a descent speed of 0.3 m/s. From 30 cm until touchdown, the DeltaQuad Evo enters crawl speed to ensure a soft landing. This is achieved using the distance sensor in the DeltaQuad Evo.
