  1. Setup

Connecting a Second GCS

This section explains how to connect a secondary GCS to the primary GCS.

PreviousAir Unit Radio SwapNextADS-B Receiver

Last updated 6 months ago

You can connect a secondary GCS to the primary GCS using a Wi-Fi network, a hotspot, or a USB connection. A secondary GCS on-site is useful when both a camera operator and a pilot are needed.

Wi-Fi Connection - Prerequisites

  • DeltaQuad Evo and the GCS must be powered on.

  • A connection between the vehicle and GCS must be established.

  • A laptop or any other device with AMC installed.

  • The primary and secondary GCS must be connected to the same Wi-Fi network or hotspot.

  1. On the primary GCS, open the Evo Control Panel app located on the desktop.

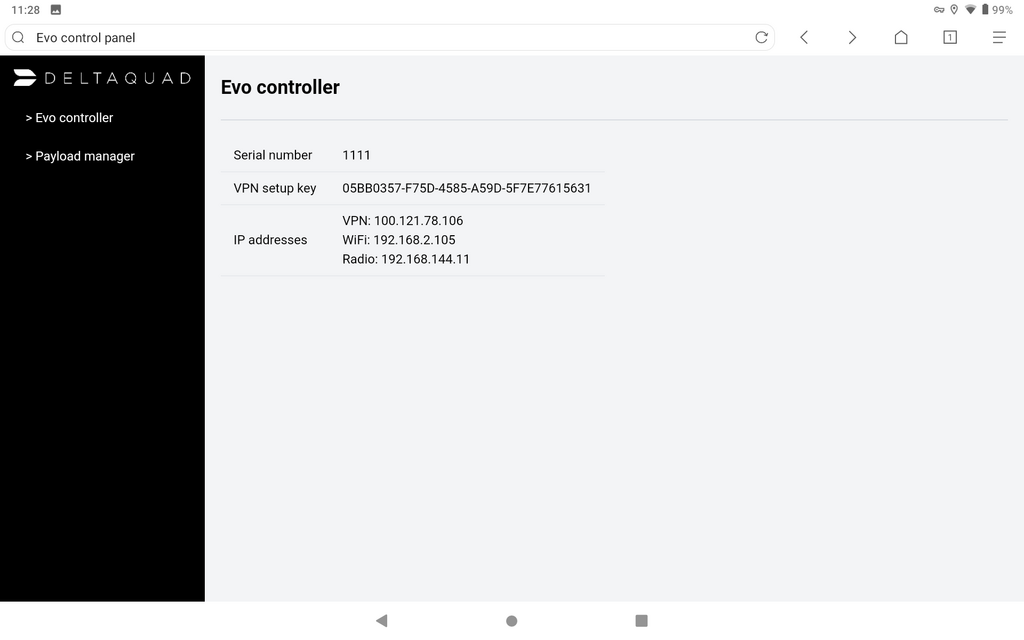

  1. The Evo Controller window will open. Copy the WiFi IP address—in our case, 192.168.2.105.

  1. On the secondary GCS, open AMC. Navigate to AMC Menu > Settings > Comm Links. Click on Add.

  1. Enter the following items and click OK.

  • Name: Enter any name

  • Type: UDP

  • Listening Port: 14550

  • Target Host: <Wi-Fi IP adress>:5760

    • In our case 192.168.2.105:5760

  1. Click on the newly created comm link and Connect.

  1. After a few seconds the secondary GCS connects to the primary GCS. The vehicle status should be indicated in the upper left corner of AMC.

USB Connection - Prerequisites

  • DeltaQuad Evo and the GCS must be powered on.

  • A connection between the vehicle and GCS must be established.

  • A laptop or any other device with AMC installed.

  • The primary and secondary GCS must be connected via a USB cable.

  1. On the primary GCS, open the Evo Control Panel app located on the desktop.

  1. The Evo Controller window will open. Copy the USB IP address—in our case, 192.168.42.129.

  1. On the secondary GCS, open AMC. Navigate to AMC Menu > Settings > Comm Links. Click on Add.

  1. Enter the following items and click OK.

  • Name: Enter any name

  • Type: UDP

  • Listening Port: 14550

  • Target Host: <USB IP adress>:5760

    • In our case192.168.42.129:5760

  1. Click on the newly created comm link and Connect.

  1. After a few seconds the secondary GCS connects to the primary GCS. The vehicle status should be indicated in the upper left corner of AMC.
