  1. DeltaQuad Evo Payloads
  2. NextVision ISR Payloads

Nighthawk2-V/UZ

This section gives general information about the Nighthawk2 payload and how to install it.

PreviousRaptor 360NextControlling the Camera

Last updated 6 months ago

Nighthawk2

The Nighthawk2 is an EO/IR stabilized camera with a mere weight of 250 grams. The Nighthawk2 delivers powerful thermal observation alongside long-range visible imagery.

Nighthawk2-V

The Nighthawk2-V is a small-size dual EO-IR stabilized camera turret enabling long-range observation. Implementing technology breakthroughs makes the Nighthawk2-V the best camera in its weight class.

Nighthawk2-UZ

Nighthawk2-UZ is a dual EO-IR stabilized camera turret crafted for long-range observation applications that demand very low weight. Embodying technology innovations, Nighthawk2-UZ provides unmatched capabilities.

Nighthawk2
Nighthawk2-V
Nighthawk2-V/UZ

ZOOM

X40 (X20+X2 digital)

X40 (X20 + X2 digital)

X40 (X20 + X2 digital)

FOV

60° WFOV – 3° WFOV – 1.5° DFOV

60° WFOV – 3° NFOV – 1.5° DFOV

60° WFOV – 3° NFOV – 1.5° DFOV

THERMAL RESOLUTION

640×480

640×480

1280×720

EO-IR

Single

Dual

Dual

PITCH FOR

-45° to +135°

-45° to +135°

-45° to +135°

YAW/ROLL FOR

-180° to +180°

-180° to +180°

-180° to +180° Optional 360° Continuous

WEIGHT

670 grams

740 grams

770 grams

Installing the Payload

The Nighthawk2 can be installed in a single payload configuration or together with the auxiliary battery payload.

When using the Nighthawk2 in a single payload configuration, it must be installed in payload slot 1 at the rear of the vehicle (near the pusher motor).

When using the Nighthawk2 with the auxiliary battery, the auxiliary battery must be installed in payload slot 1, as it is the heaviest payload, and the Nighthawk2 must be installed in payload slot 2.

DeltaQuad Evo Payload Slot Layout
  • Slot 1: Located at the rear end of the fuselage, closest to the pusher propeller.

  • Slot 2: Located at the front end of the fuselage, closest to the nose of the vehicle.

Each payload box features two arrows on top of each handle, corresponding to arrows on each side of the DeltaQuad Evo's payload bay. The arrows on the payload boxes must align with those in the payload bay, always pointing toward the front (nose) of the vehicle.

Removing a Payload Box

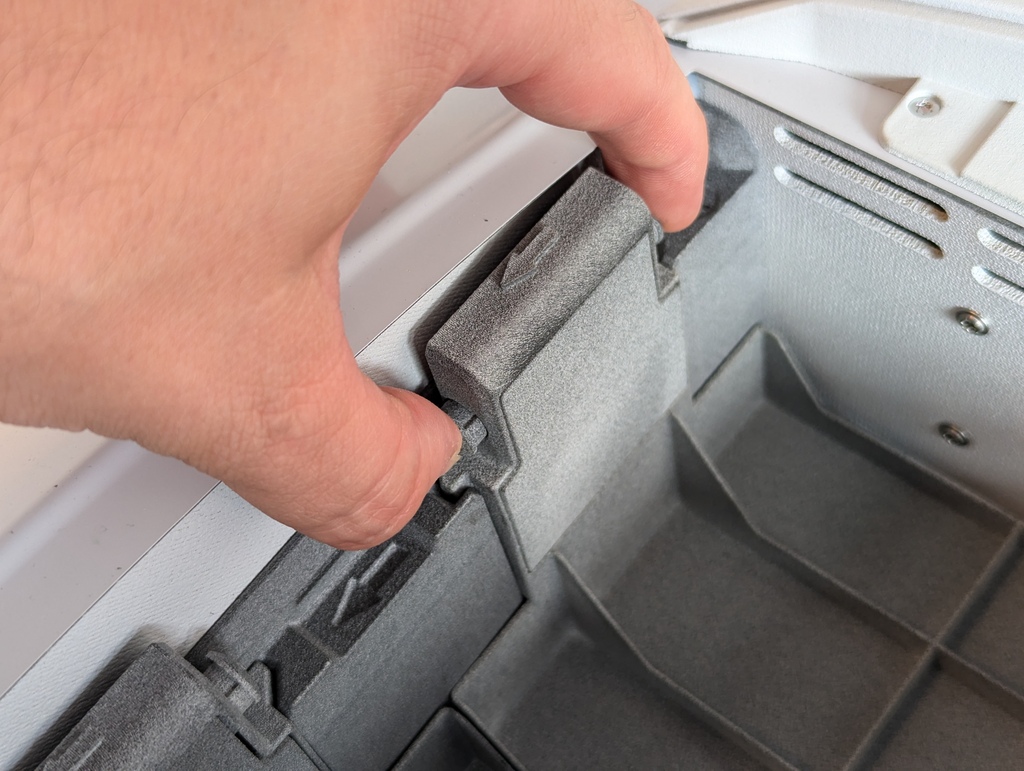

Each payload box has handles with two locking pins positioned opposite each other. To remove the payload box, grasp the handles with both hands, press the locking pins inward, and pull the payload box out.

Trip 2

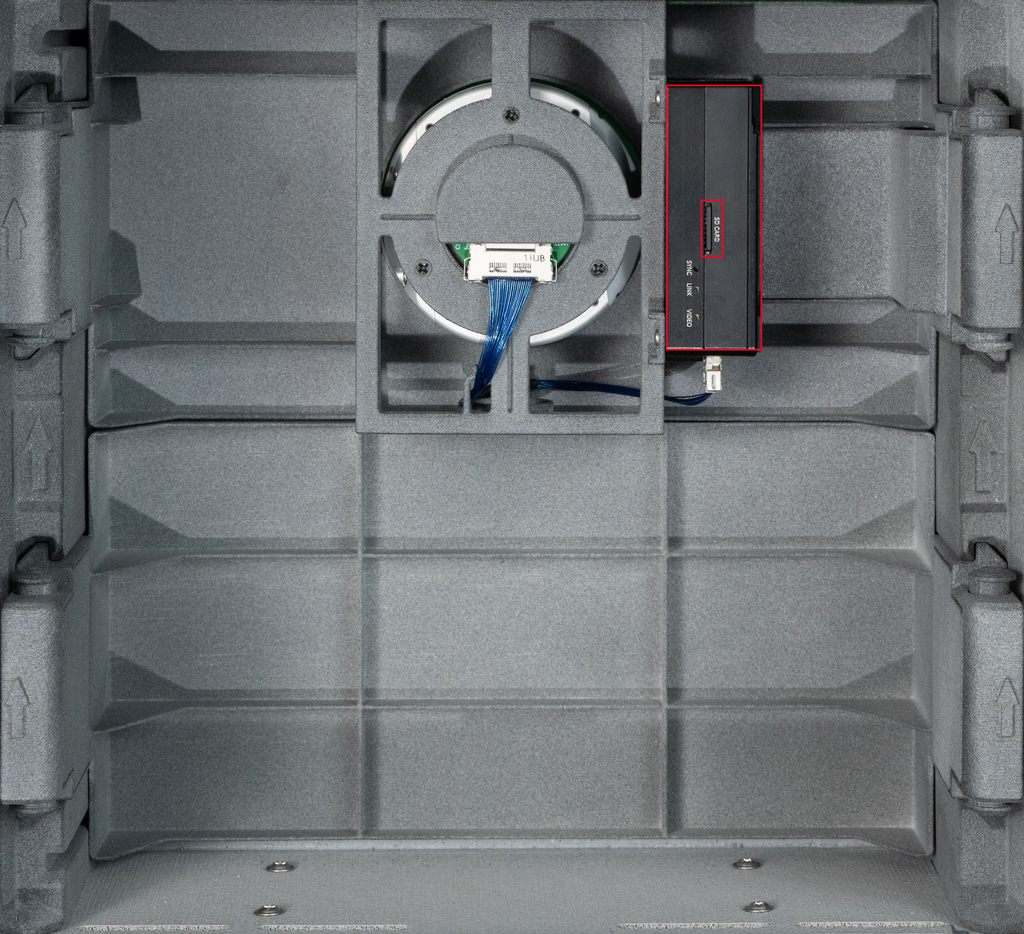

The payload box contains the camera and its onboard computer, the Trip 2. On top of the Trip 2, there is a micro SD card slot that accommodates cards of up to 32GB for onboard storage.

If onboard media storage is required, ensure that a compatible micro SD card is installed in the Trip 2 board computer and has sufficient available storage space.

For more information please review the chapter .

Auxiliary Battery Placement
Single payload configuration

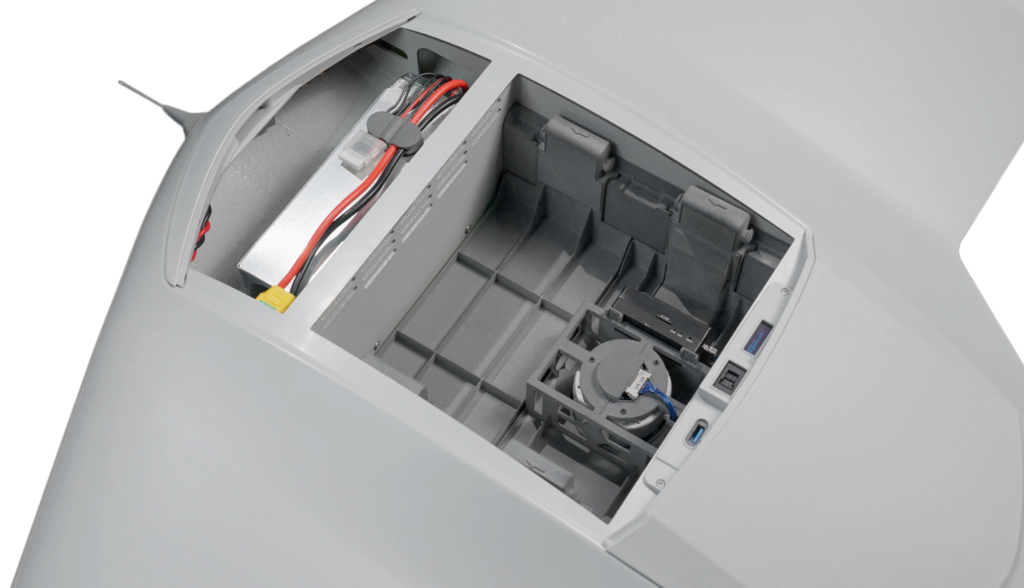

Dual payload configuration with auxiliary battery
