  1. Setup
  2. DeltaQuad Evo Battery

Empty Payload Box

This section will discuss the empty payload box and its functionality.

PreviousAuxiliary Battery PlacementNextPowering the Vehicle

Last updated 6 months ago

Every DeltaQuad Evo comes with an empty payload box.

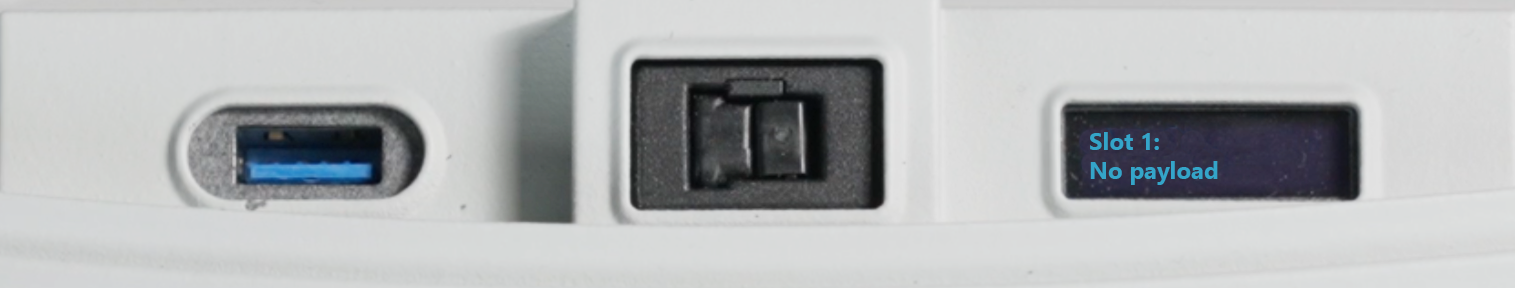

Before takeoff, the payload bay must be fully loaded with either two single payload boxes or one double payload box. Otherwise, the OLED screen above the avionics bay will display one of the following messages:

If payload slot 1 is occupied by, for example, the Raptor 360, then payload slot 2 must be filled with the empty payload box that comes with every DeltaQuad Evo.

The vehicle will not initialize if the payload bay is either not fully loaded or incorrectly loaded.

No payloads found
Slot 1: No payload
Slot 2: No payload
