Sharing log files via Auterion Suite

This section will discuss how to share log files via Auterion Suite.

Sharing log files via Auterion Suite

The DeltaQuad Evo records onboard logs that contain vast amounts of information regarding the flights. These onboard logs will be uploaded to Auterion Suite through cloud connectivity. The log files can be reviewed and shared via Auterion Suite if the following criteria are met:

• Registered Auterion Suite account

• Vehicle must be activated in Auterion Suite

• Vehicle is connected to the cloud

For registering an Auterion Suite account and vehicle activation, please read here.

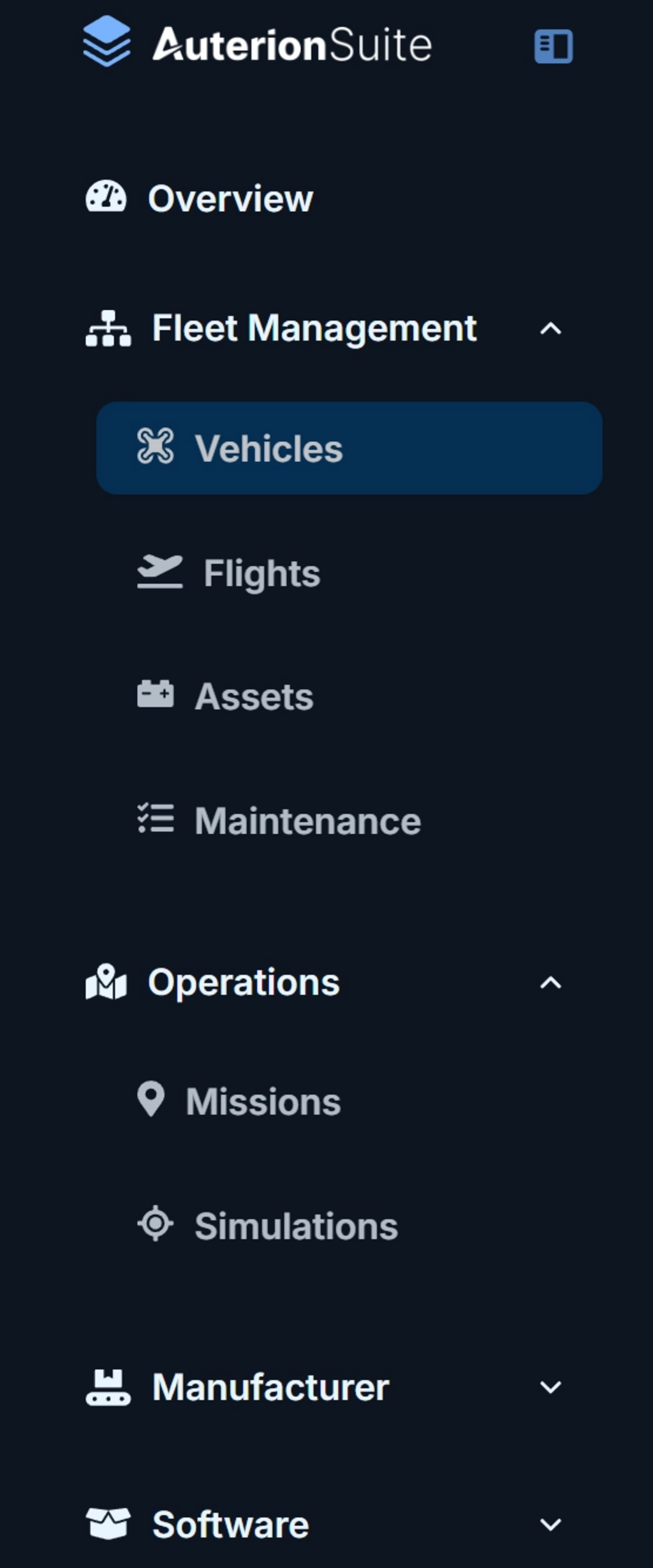

1. Log in to your Auterion Suite account and navigate to Fleet Management -> Vehicles on the left side of the screen.

1. Select the vehicle you want to download a log file from.

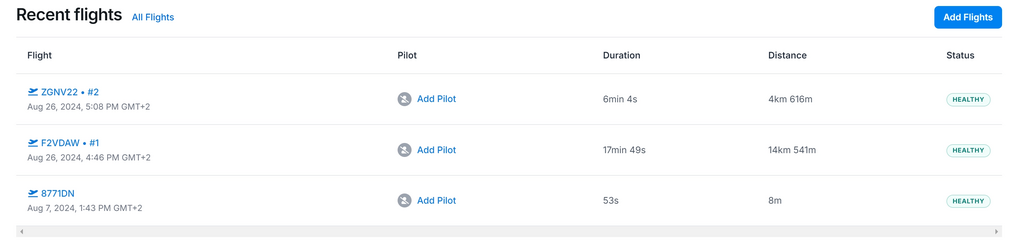

1. On the Vehicle Summary page, all registered flights are listed. Scroll down and select the flight from which you want to access the log file.

1. On the Flight details page, you can access the log analytics by clicking the button on the right side of the screen.

1. To share a log file with DeltaQuad for analysis, please enable the option Share with Manufacturer.

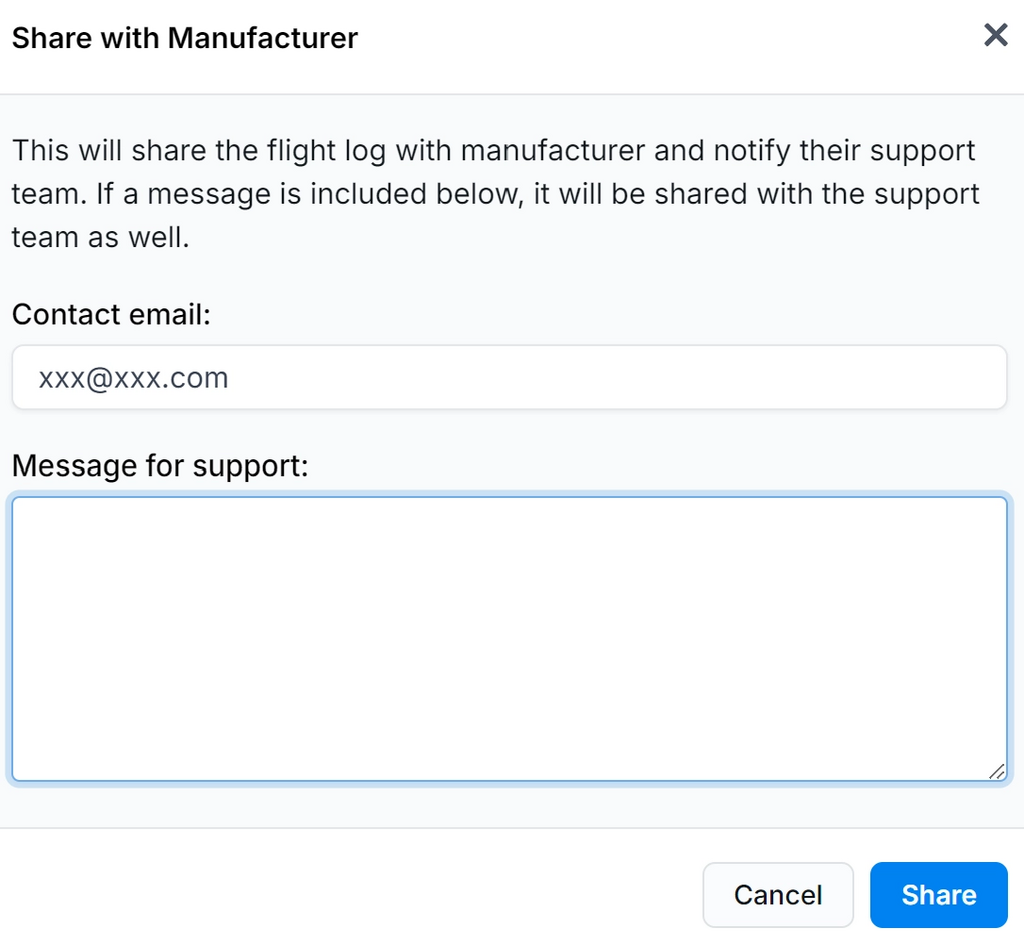

1. A message window will pop up, where you can leave your email address and a message. Fill in the form and click on Share.

After you share the log files with DeltaQuad, the support team will review them and provide you with an analysis.
