Controller

The following section outlines the options available in the Controller tab.

PreviousAdvancedNextPhotos

Last updated 7 months ago

The Controller tab can be accessed via the AMC menu.


Radio Tab

The DeltaQuad Evo Tactical Edition does not utilize a traditional radio controller. Instead, the DeltaQuad Evo handheld controller functions as a joystick. Consequently, all controller settings can be configured under the Joystick tab. The Radio tab is irrelevant for the DeltaQuad Evo Tactical.


Joystick Tab

Changing the settings in the Joystick tab is recommended only for experienced operators with sufficient knowledge of the subject matter.

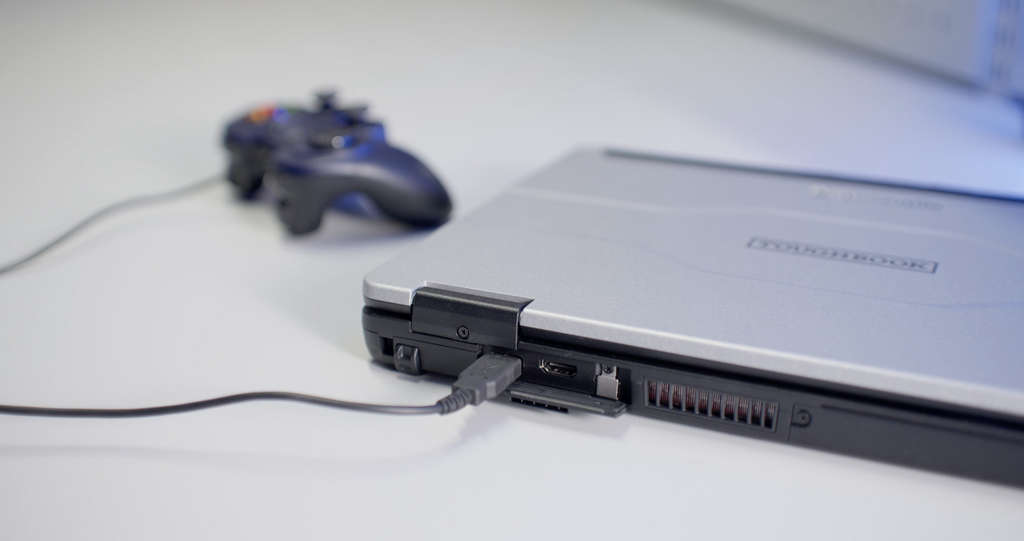

To verify stick input and assign actions to controller buttons, ensure the handheld controller is connected to the Toughbook. Both the GCS and the vehicle must also be powered on and connected.


In the General tab, the joystick can be enabled, and the stick input can be verified by moving the controller sticks.


In the Button Assignment tab, commands can be applied to the available buttons on the handheld controller. When you press a button on the controller, the corresponding field will light up, and an action can be assigned.

Actions or commands will be executed immediately upon being triggered by the controller buttons. Assign actions to the controller buttons with caution, as commands like Emergency Shutdown are irreversible. When triggered in mid-air, a crash is imminent.

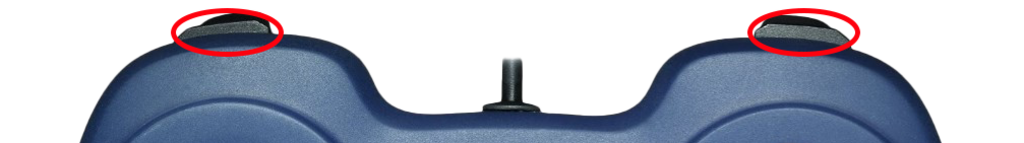

By default, only the controller's shoulder buttons are assigned for the zoom functionality of the ISR payloads.


Calibration

If required, the controller sticks can be calibrated. After clicking Start, you will be guided through the process.


Settings

The Settings tab provides additional options for configuring the controller. We recommend leaving these settings at their default values. These options may become relevant when using a traditional remote controller as a USB input device.

The DeltaQuad Evo handheld controller comes pre-configured and works as a plug-and-play device. For more information about stick and button assignments, please read .
