DeltaQuad Toughbook

The following section provides a basic overview of the DeltaQuad Toughbook, and the handheld controller.

PreviousGround Control Station (GCS)NextSilvus StreamCaster 4240-EP

Last updated 7 months ago

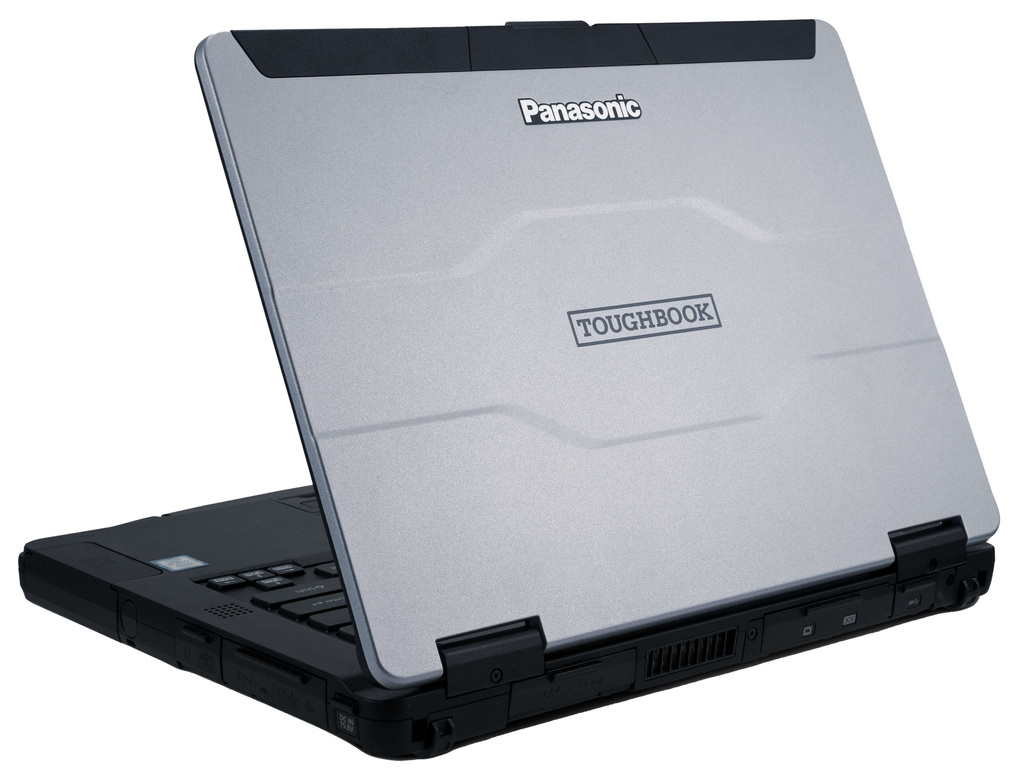

The DeltaQuad Evo Tactical comes with the DeltaQuad Toughbook, which has Auterion Tactical Mission Control pre-installed. This software provides the communication link between your UAV and the ground systems. The DeltaQuad Military Toughbook is a MIL-STD ruggedized touch-screen laptop, built using the Panasonic TOUGHBOOK FZ-55 with a magnesium chassis, flexible configurations, and a universal bay.

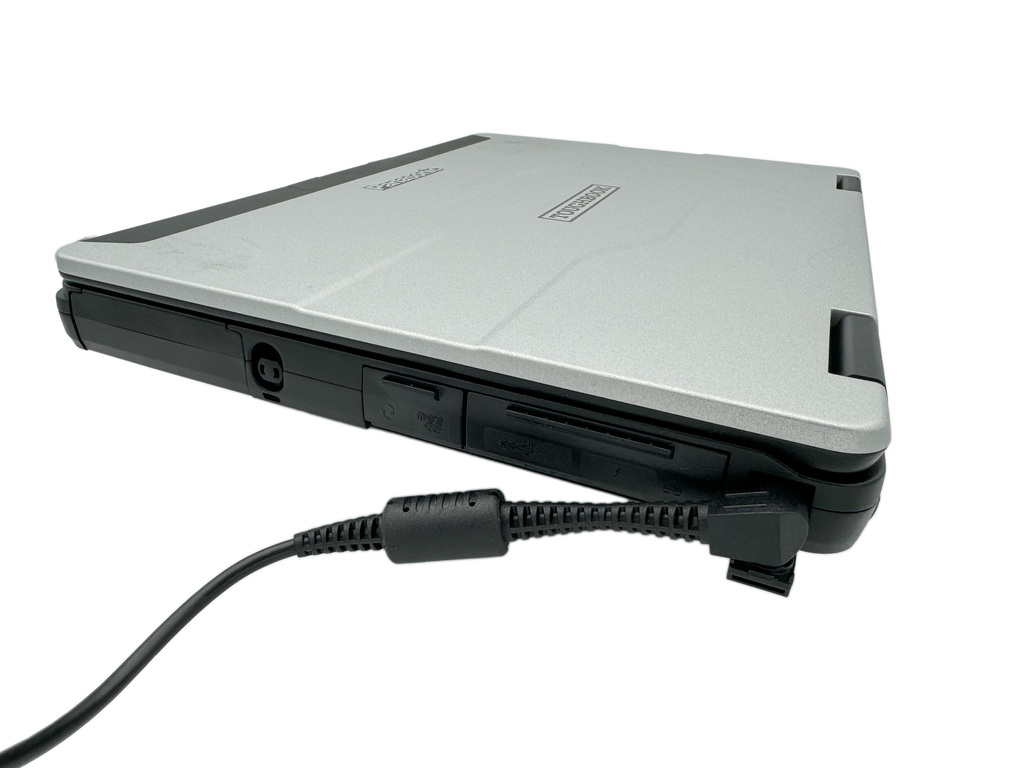

To charge the Toughbook, please use the provided power adapter.

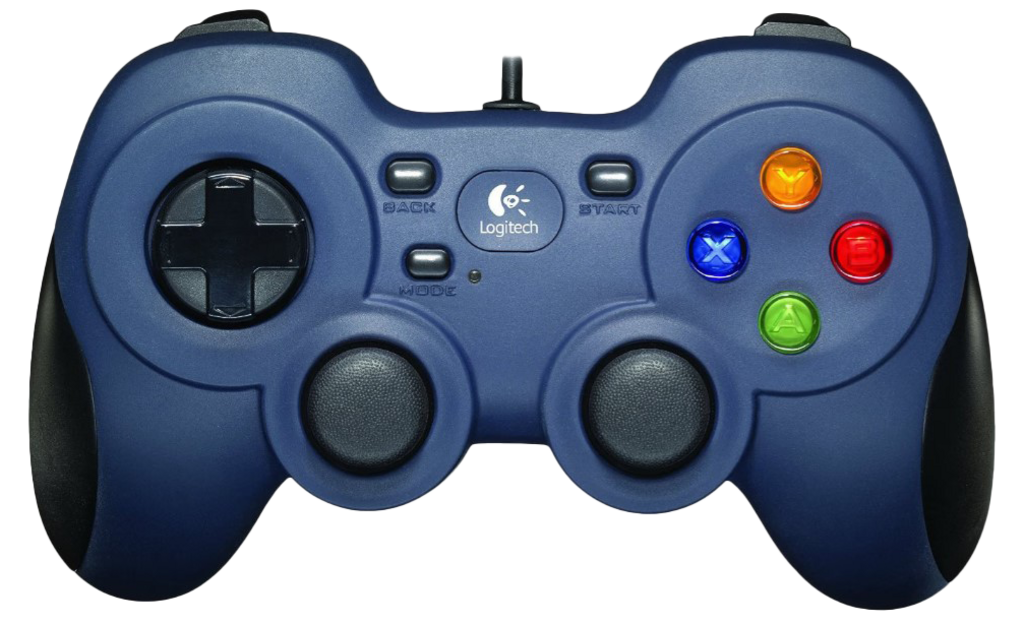

The handheld controller enables manual override, precision landing, and camera gimbal control during fixed-wing flight.

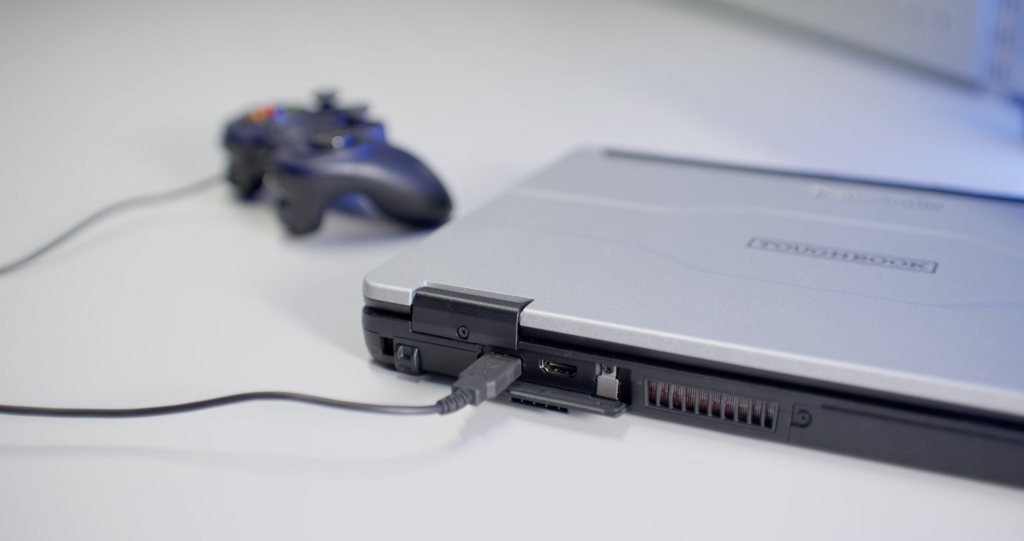

To connect the handheld controller to the Toughbook, plug the USB connector of the controller to any of the USB ports of the Toughbook.

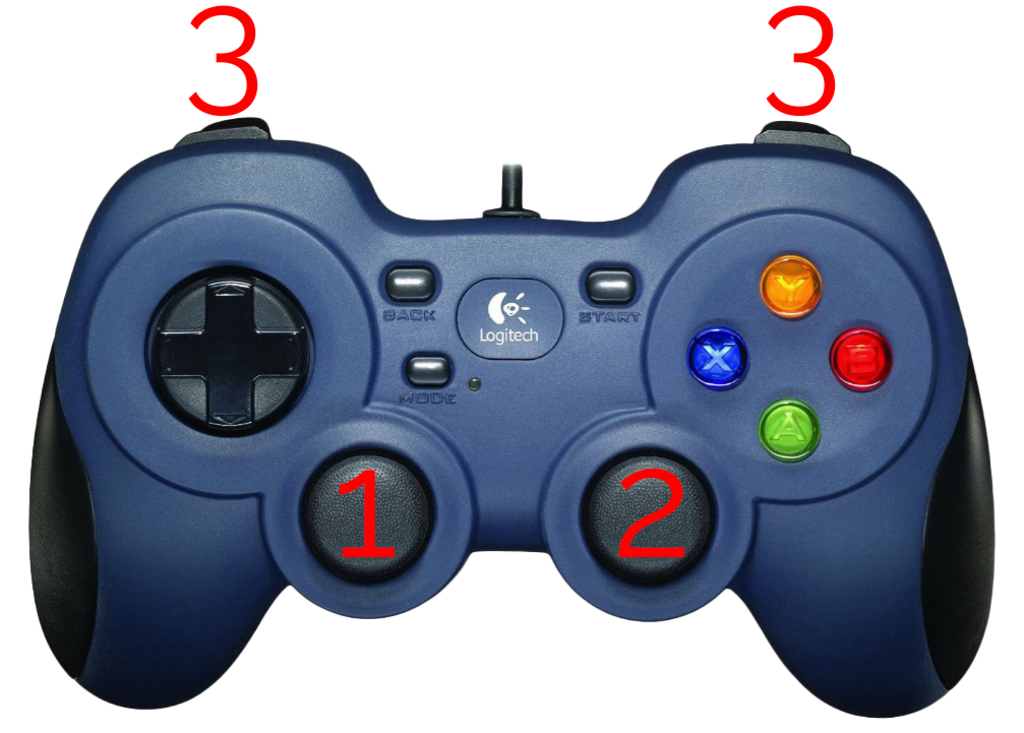

Number

Type

Function

1

Left joystick

In hover mode

Stick up: climb

Stick down: descend

Stick left: yaw left

Stick right: yaw right

In fixed-wing mode (payload dependent)

Stick up: gimbal up

Stick down: gimbal down

Stick left: gimbal left

Stick right: gimbal right

2

Right joystick

In hover mode

Stick up: move forward

Stick down: move backward

Stick left: move left

Stick right: move right

In fixed-wing mode

Stick up: descend (nose down)

Stick down: climb (nose up)

Stick left: bank left

Stick right: bank right

3

Shoulder buttons L1 and R1

Gimbal zoom for ISR payloads
