  1. Setup

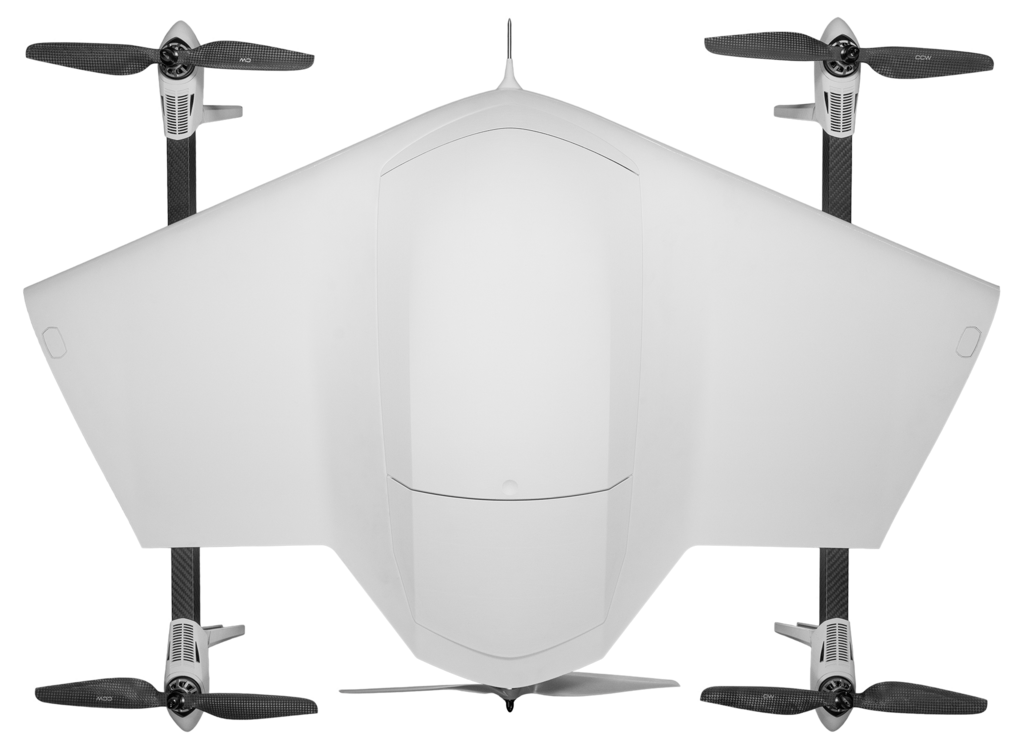

DeltaQuad Evo Flight Case

This section will discuss how the DeltaQuad Evo Tactical and its accessories are stored in the flight case. It gives an overview of the package contents.

PreviousSetupNextField Deployment Kits

Last updated 6 months ago

The DeltaQuad Evo and its accessories are stored in a rugged flight case.

The DeltaQuad Evo must always be stored in the flight case with the landing gear legs deployed.

Five compartments will be accessible by removing the DeltaQuad Evo's fuselage from the flight case.

Upper compartment

  • Dual battery charger

Right compartment

  • Upper layer: Silvus radio and GCS controller, two omnidirectional Silvus antennas

  • Lower layer: Chargers for Toughbook and Silvus radio, Silvus charging dock, Silvus breakout cable

Lower compartment

  • 4 DeltaQuad Evo lithium-ion batteries

Left compartment

  • Payloads: Can hold up to 4 single payloads or 2 dual payloads.

Bottom compartment

  • Toughbook - Ground Control Station (GCS)

Package contents

1 x DeltaQuad Evo Tactical Fuselage
2 x Wings
1 x DeltaQuad Evo Dual Charger with power cable (depending on the order US/EU plug)
1 x Silvus StreamCaster 4240-EP
  • 1 x Silvus StreamCaster battery

  • 1 x Silvus StreamCaster charging dock

  • 1 x Silvus StreamCaster power adapter and power cable

  • 2 x Silvus StreamCaster omnidirectional antennas

  • 1 x Silvus StreamCaster breakout cable

1 x Toughbook (GCS)
  • 1 x Toughbook power adapter with power cable

  • 1 x controller

4 x DeltaQuad Evo lithium-ion batteries
1 x empty payload box
1 x auxiliary battery payload box
1 x NextVision Raptor 360 payload
1 x Aerial Payload Deployment System (APDS - optional depending on order)
1 x Aerial Payload Deployment System with auxiliary battery (optional depending on order)
