Connecting the Breakout Cable

This section describes how to connect the breakout cable to the radio modem.

The Silvus StreamCaster comes with a breakout cable.

1. Remove the protective cap from the Primary Port (PRI).

1. Connect the end of the cable with one plug to the PRI Port on the radio modem.

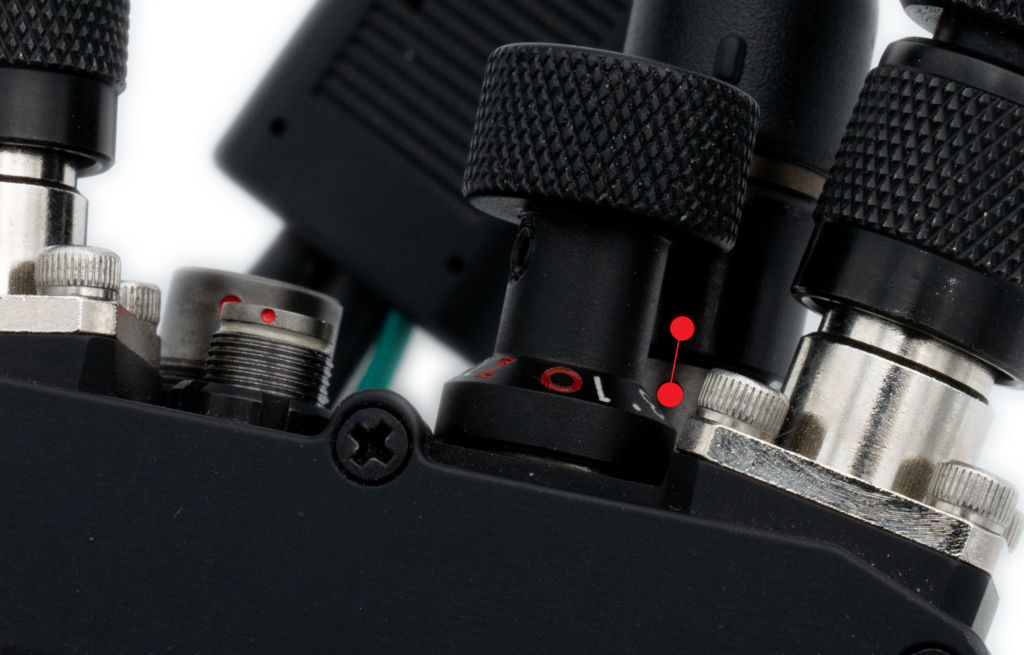

1. To properly connect the plug to the socket, ensure that the red dots on both are aligned.

1. To detach the cable for storage, simply pull the plug out of the PRI socket by gripping the base of the plug and pulling it upward.
