  1. Maintenance

Diagnostics report

The following section describes how to compile and download the diagnostics report.

PreviousDownloading log files via USBNextFirmware update

Last updated 8 months ago

In some cases, it might be necessary to provide a diagnostic report of your DeltaQuad Evo for further analysis of the flight performance and overall functionality.

For this, you will need:

  • A USB-A to USB-C cable

  • A USB-A to USB-C adapter (provided with the DeltaQuad Evo)

  • The DeltaQuad Evo with a flight battery

  • A laptop

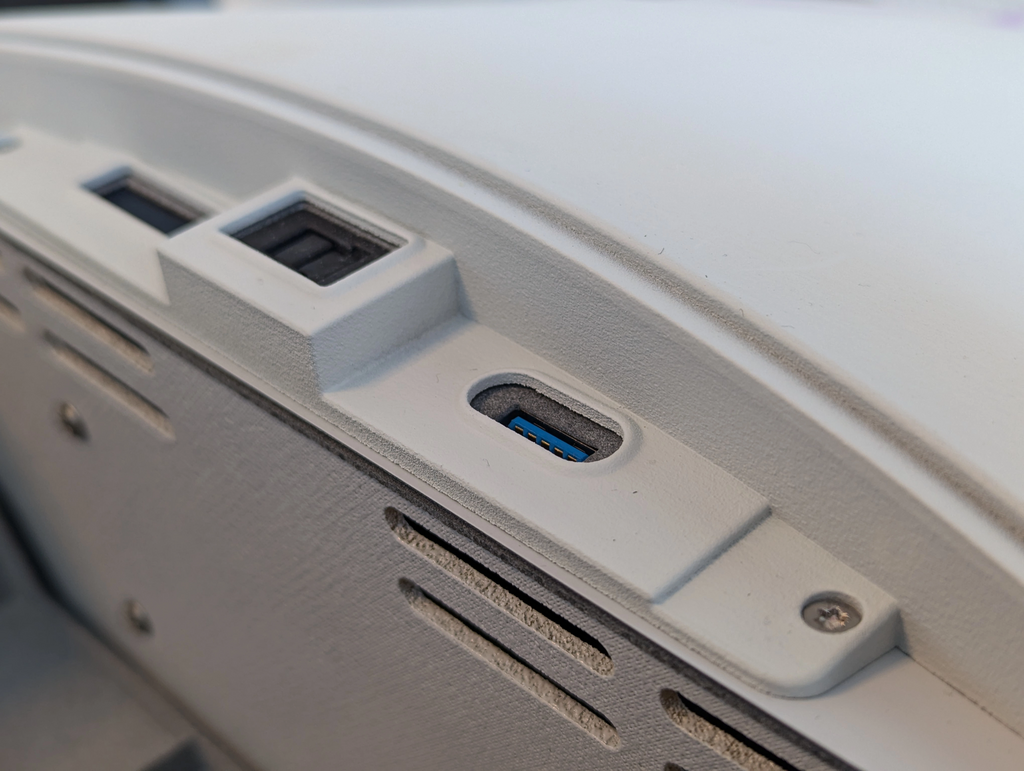

  1. Remove the hatch of the DeltaQuad Evo. Above the avionics bay, where the hatch's closing mechanism and the LCD are located, you will find a USB socket.

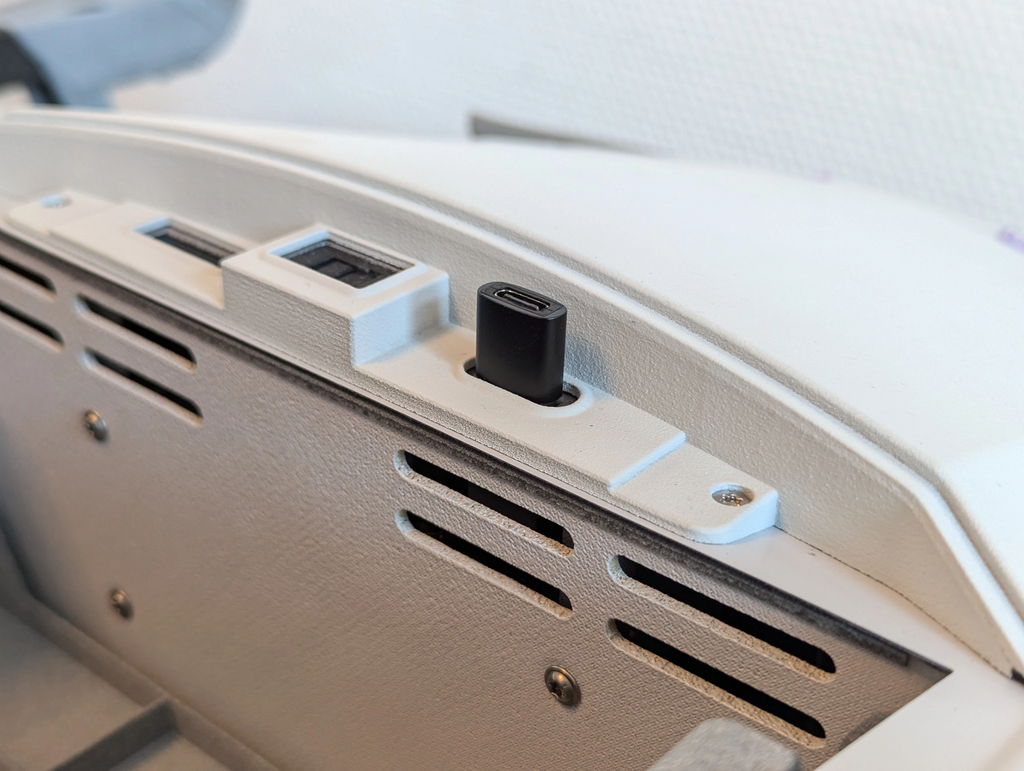

  1. Install the USB-A to USB-C adapter, which is included in your vehicle's accessories. In some cases, it may already be plugged into the USB socket.

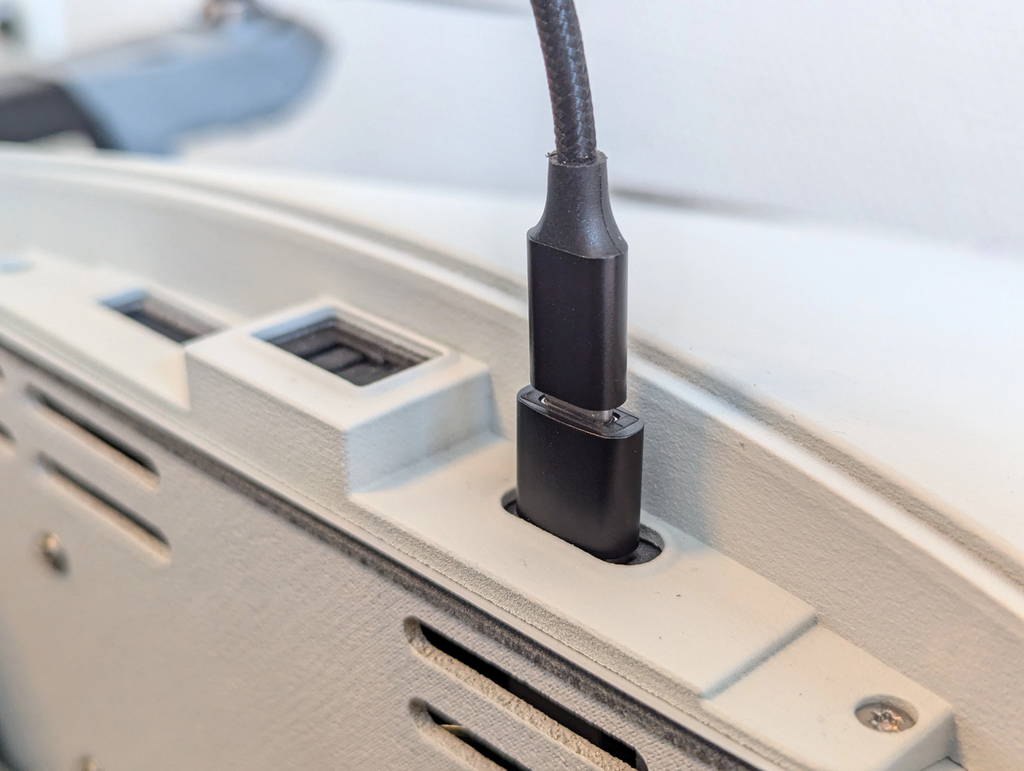

  1. Connect the USB cable to the USB-C connector.

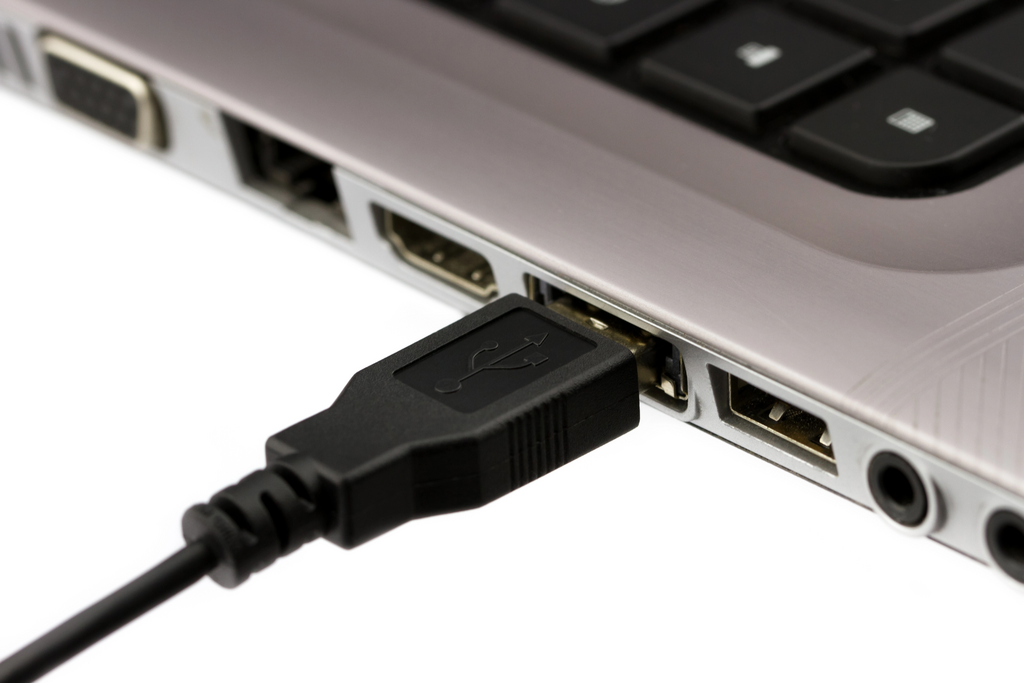

  1. Connect the other end of the cable to your laptop.

  • Power on the laptop.

  • Power on the DeltaQuad Evo.

Power on the DeltaQuad Evo only after connecting the USB cable to both, the vehicle and the laptop.

  1. On the laptop open a browser and type in the following address: http://10.41.1.1

If your computer can't connect to the vehicle after following the steps above, please try a different USB cable.

  1. Scroll to the bottom of the page and click on Show additional information.

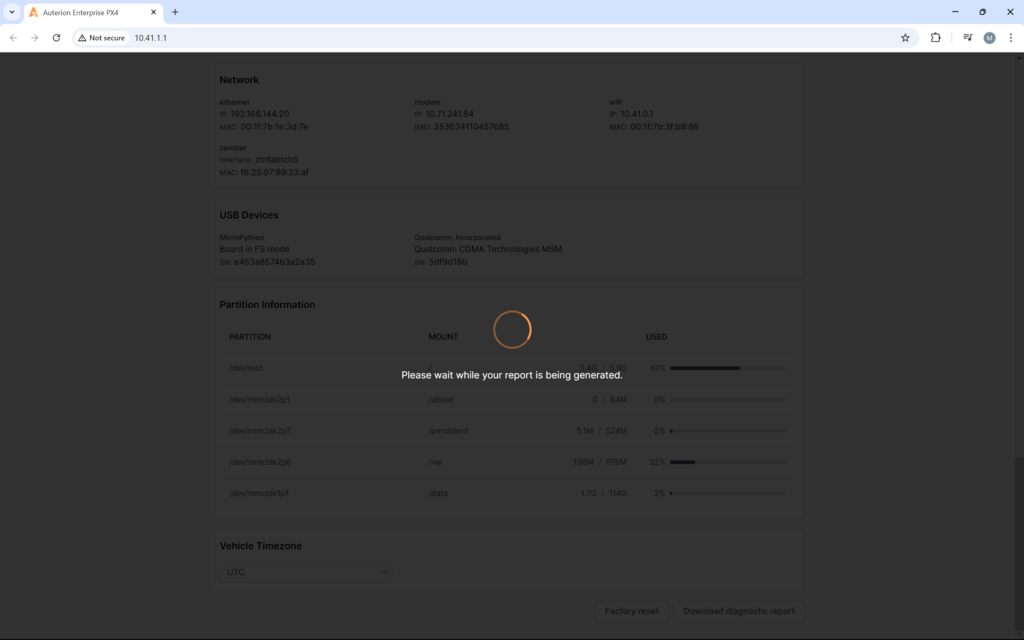

  1. In the right corner at the bottom of the page click on Download diagnostic report. The report will be generated.

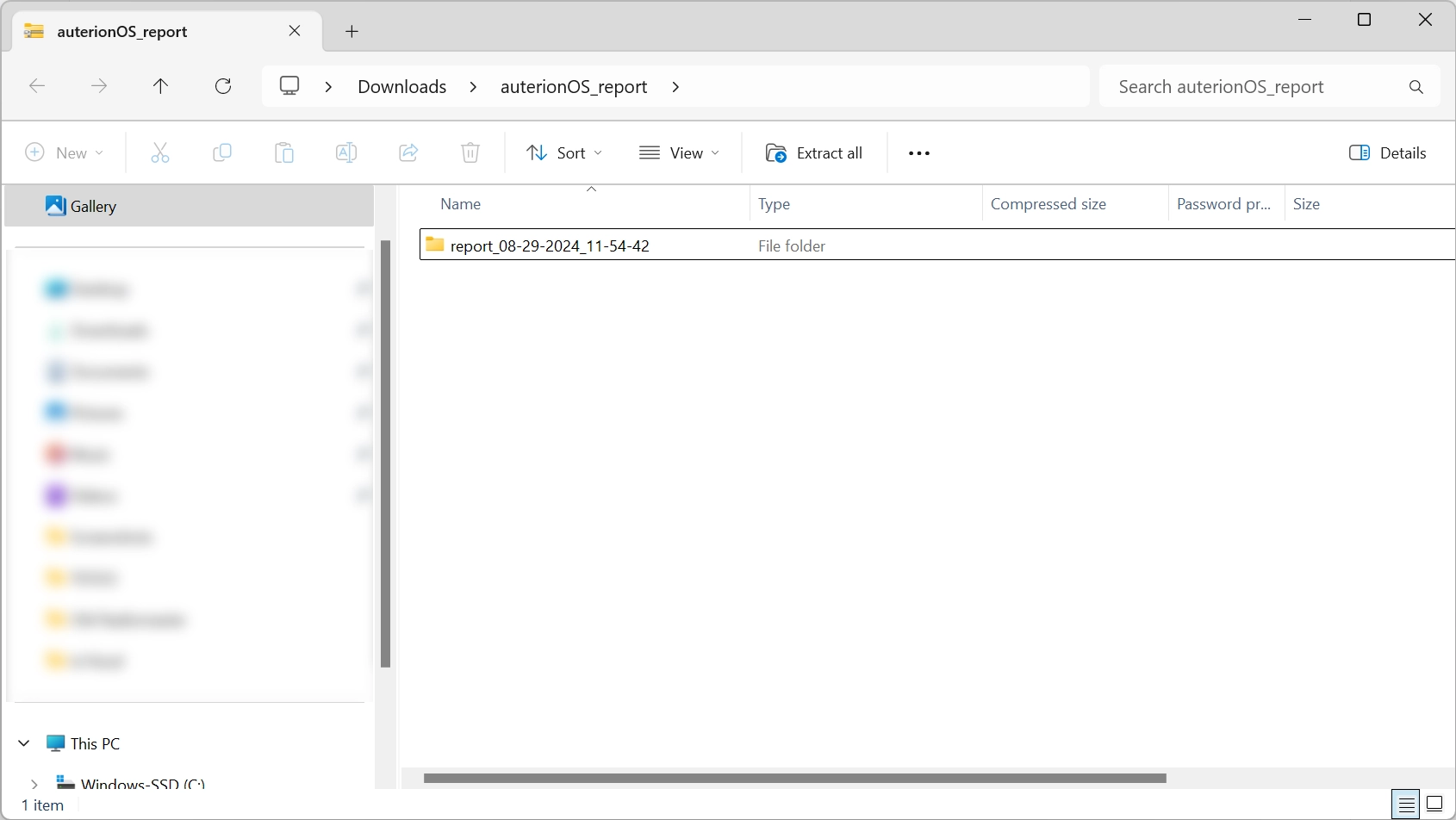

  1. After the report has been generated a download will commence. You will find the diagnostics report in the download folder of your system.

Please share the diagnostics report with the DeltaQuad support team at [email protected].
