Downloading log files via USB

This section explains how to download log files directly from the DeltaQuad Evo via USB.

If the cloud service of Auterion Suite is unavailable, the log files can be downloaded directly from the DeltaQuad Evo via USB.

For this, you will need:

• A USB-A to USB-C cable

• A USB-A to USB-C adapter (provided with the DeltaQuad Evo)

• The DeltaQuad Evo with a flight battery

• A laptop

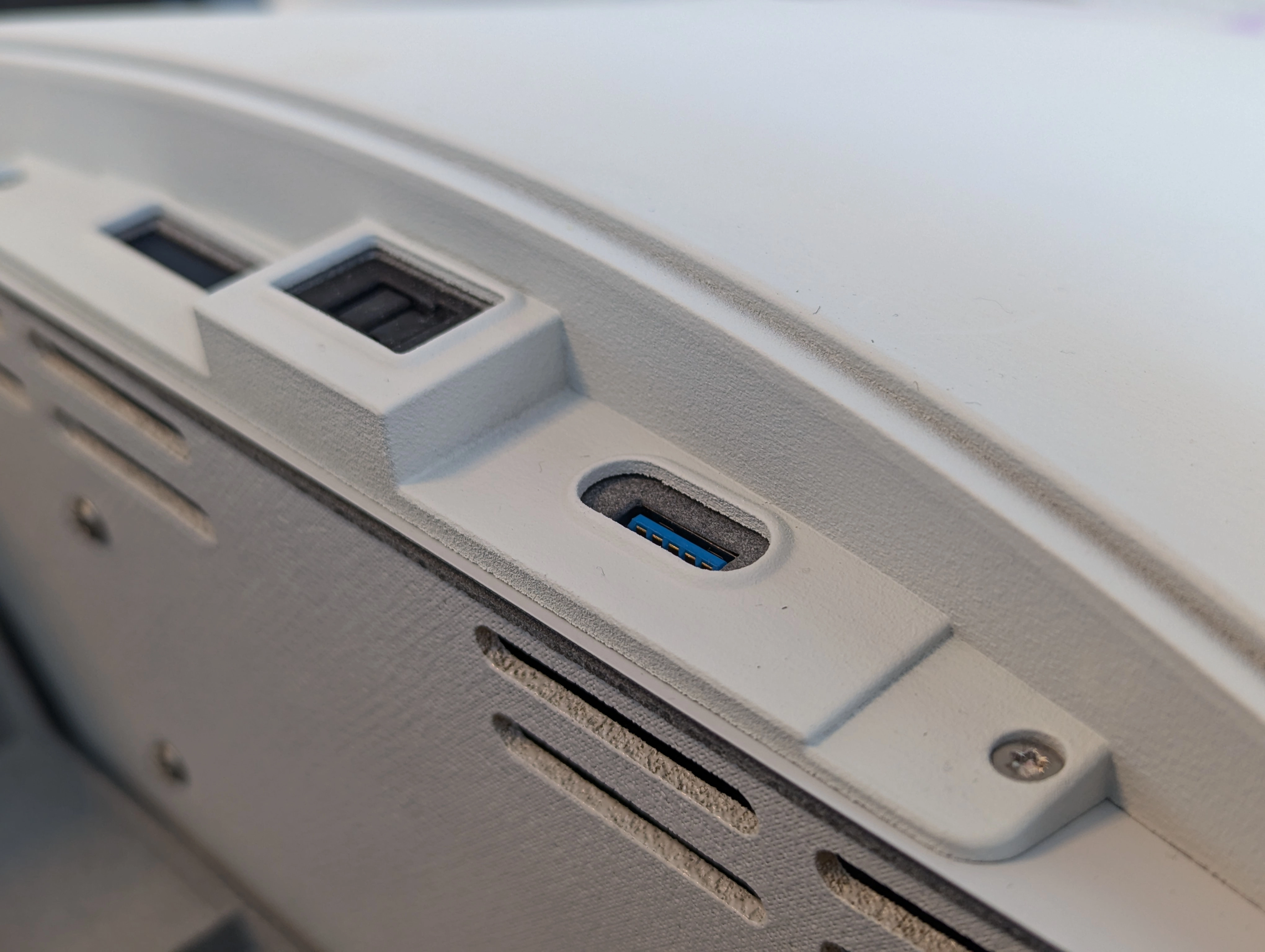

1. Remove the hatch of the DeltaQuad Evo. Above the avionics bay, where the hatch's closing mechanism and the LCD are located, you will find a USB socket.

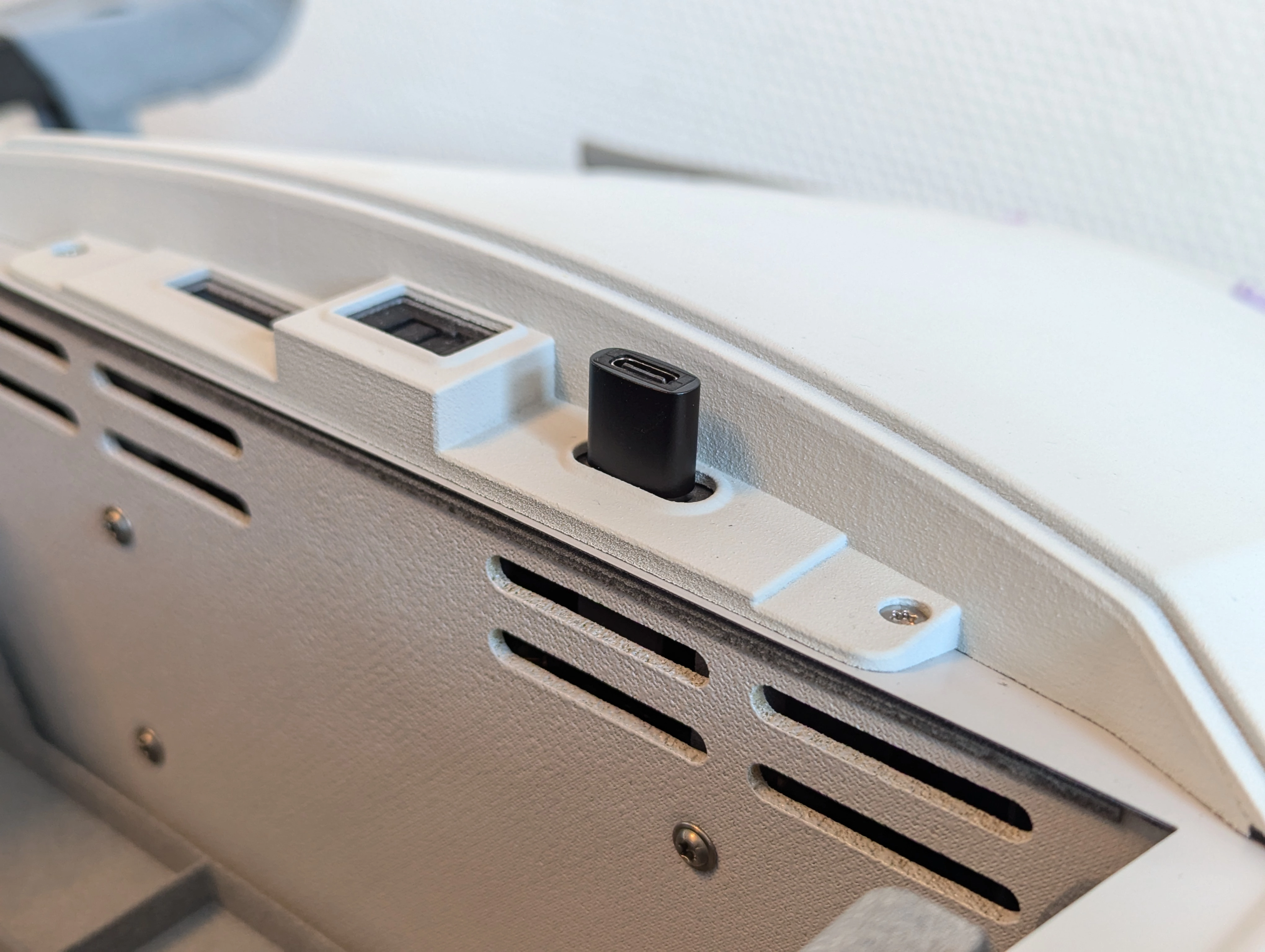

1. Install the USB-A to USB-C adapter, which is included in your vehicle's accessories. In some cases, it may already be plugged into the USB socket.

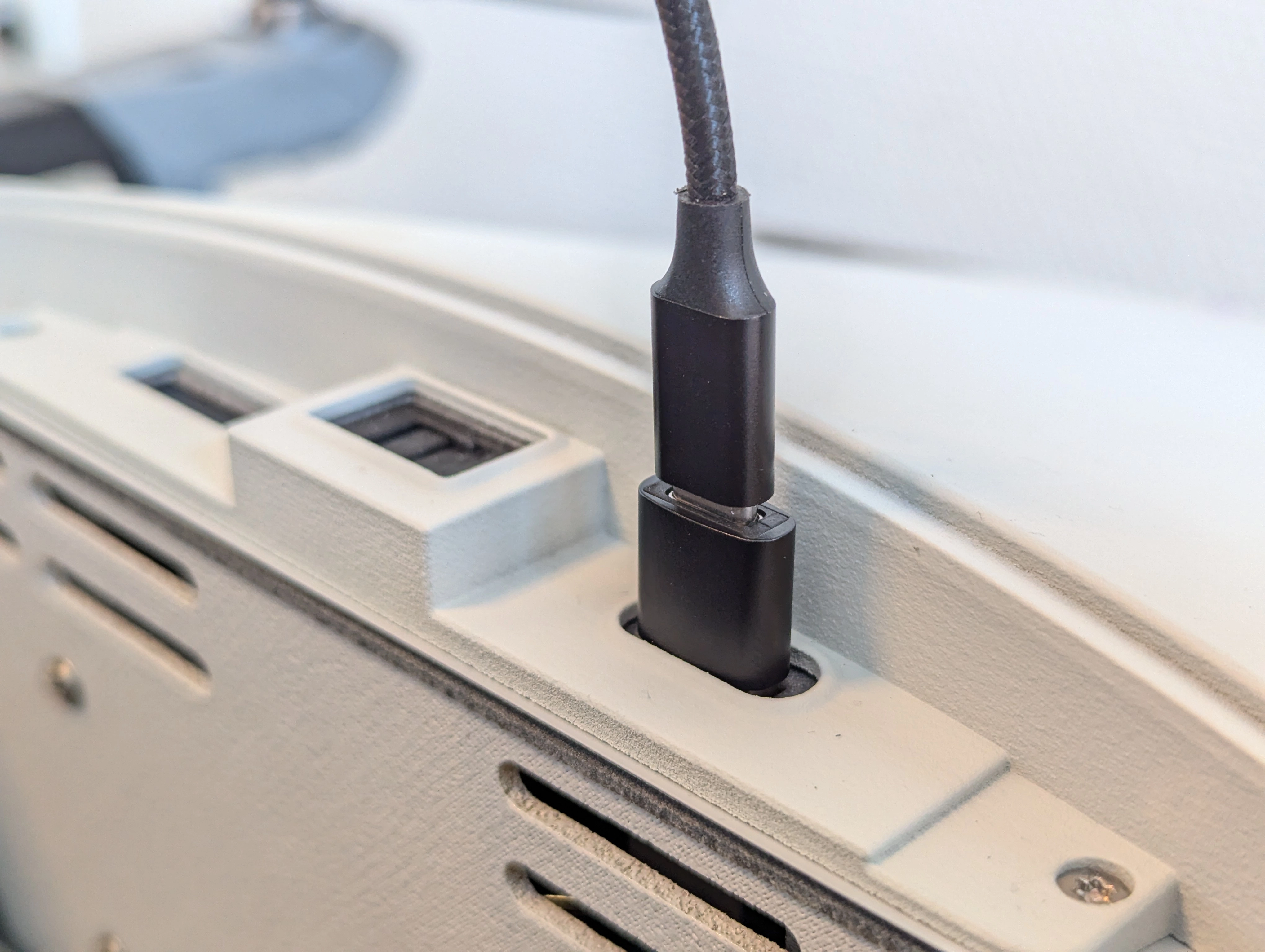

1. Connect the USB cable to the USB-C connector.

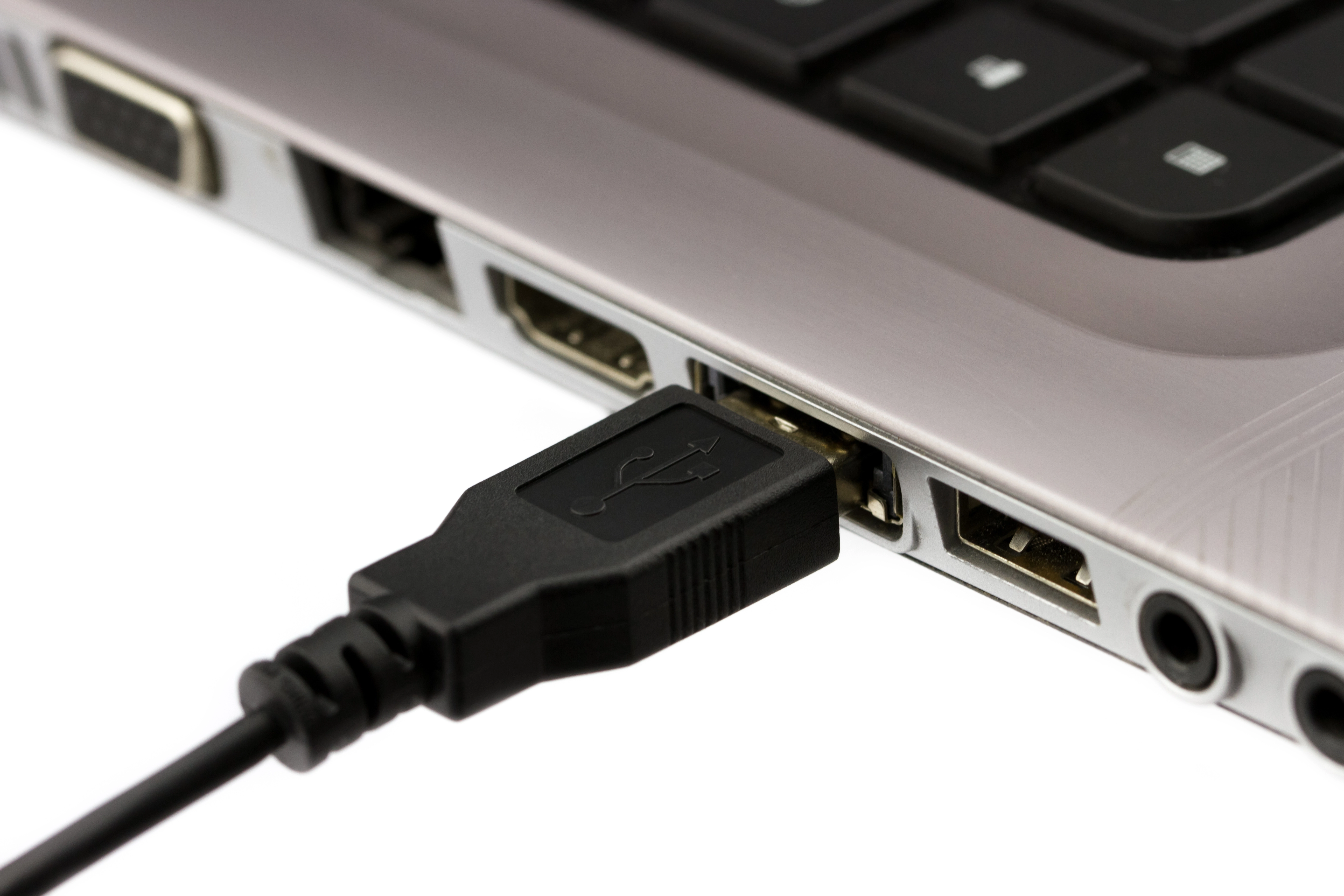

1. Connect the other end of the cable to your laptop.

1. Power on the laptop.

2. Power on the DeltaQuad Evo.

Power on the DeltaQuad Evo only after connecting the USB cable to both, the vehicle and the laptop.

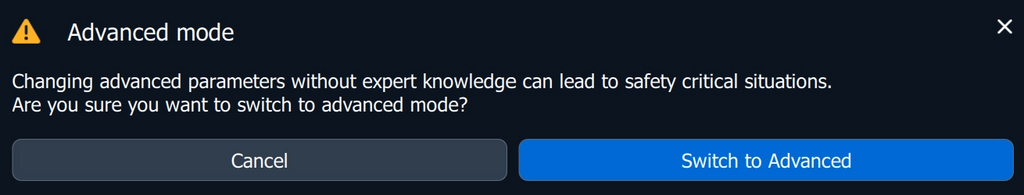

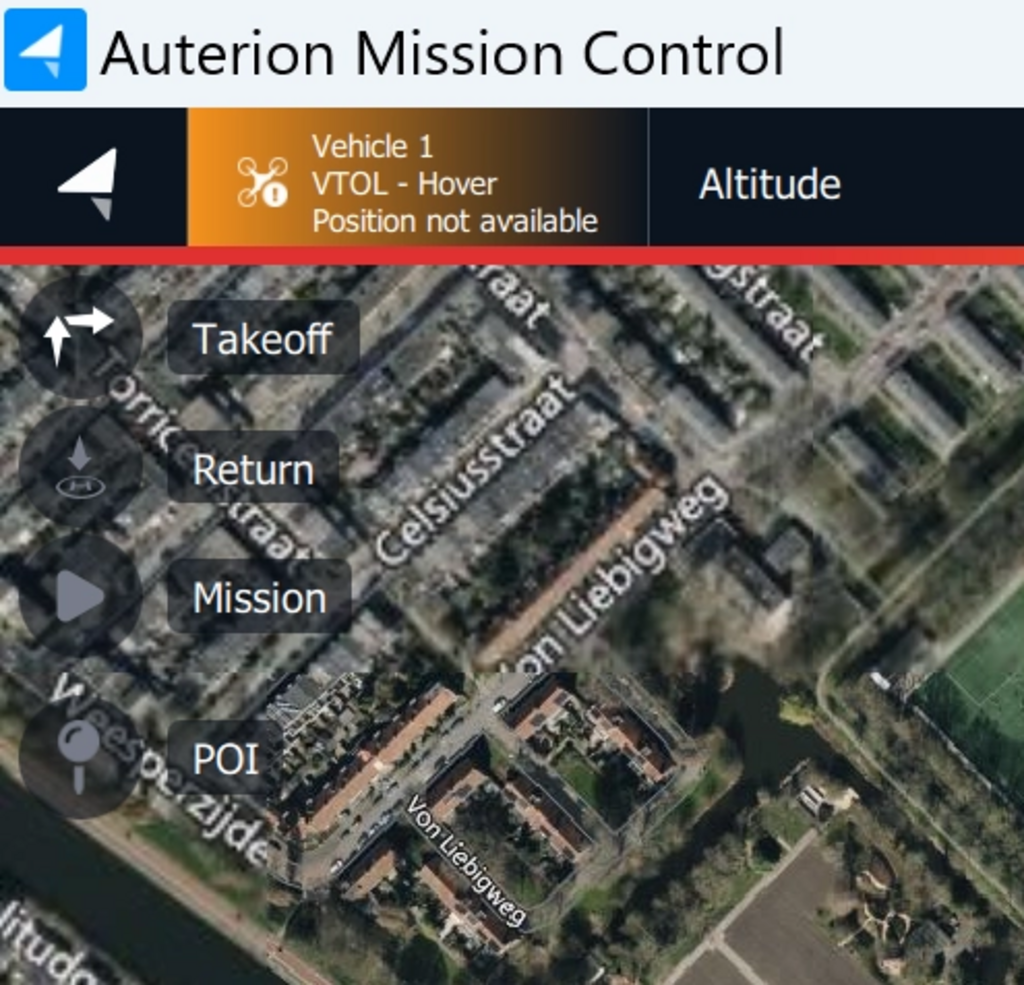

1. On the laptop open Auterion Mission Control (AMC). After a few seconds, AMC connects to the vehicle. Switch to Advanced Mode by clicking the Auterion Menu icon in the upper left corner of the screen five times.

If AMC does not connect to the vehicle after following the steps above, please try using a different USB cable.

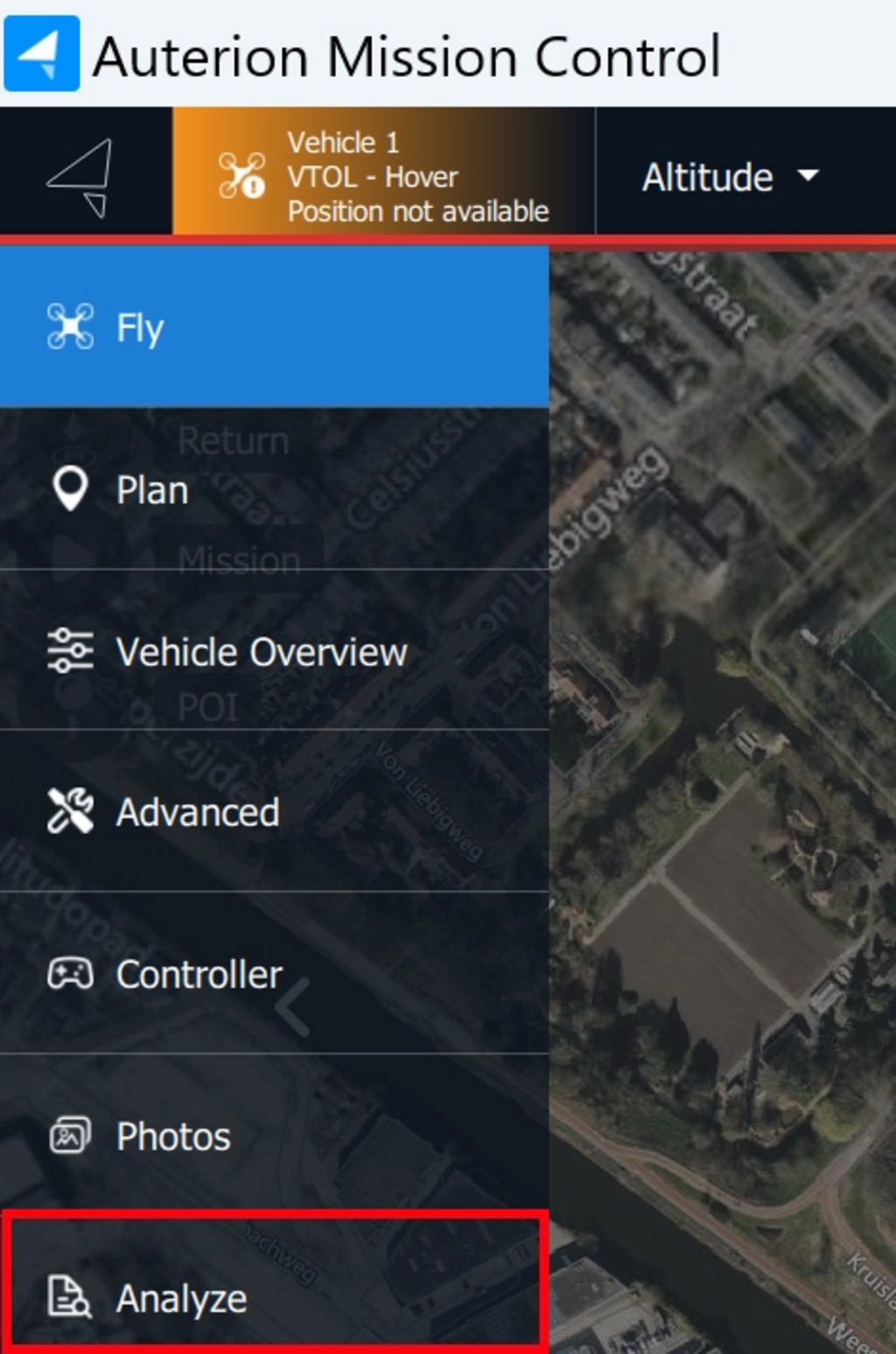

1. Click the Auterion Menu icon and select the Analyze tool.

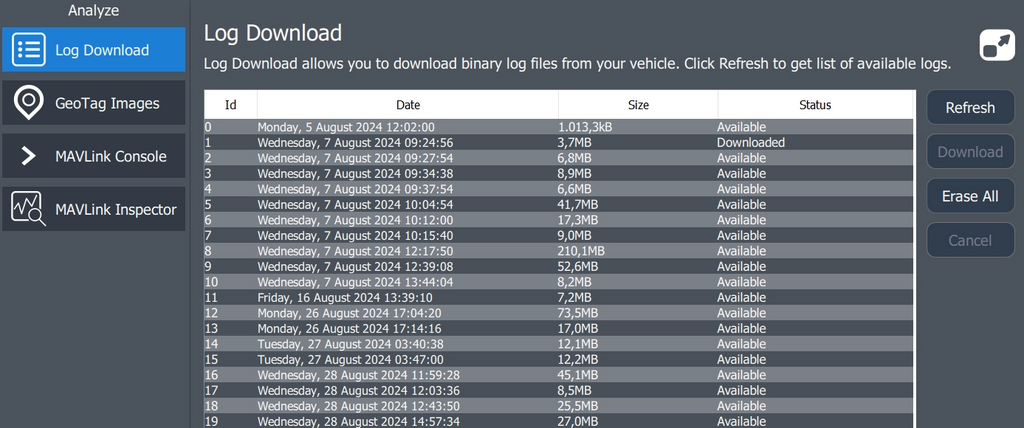

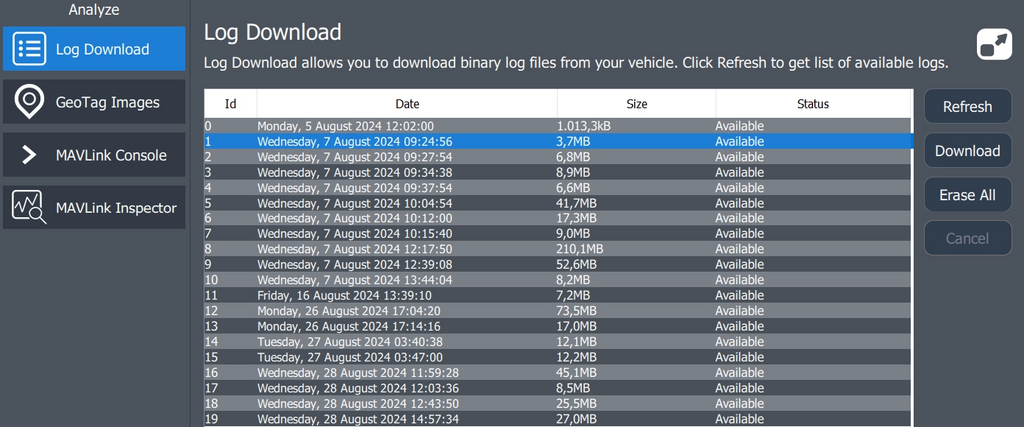

1. Under the first tab, Log Download, you can download and erase log files from the vehicle. If no log files are available, click on Refresh. Select a log file or a batch of log files, you wish to download and click on Download.

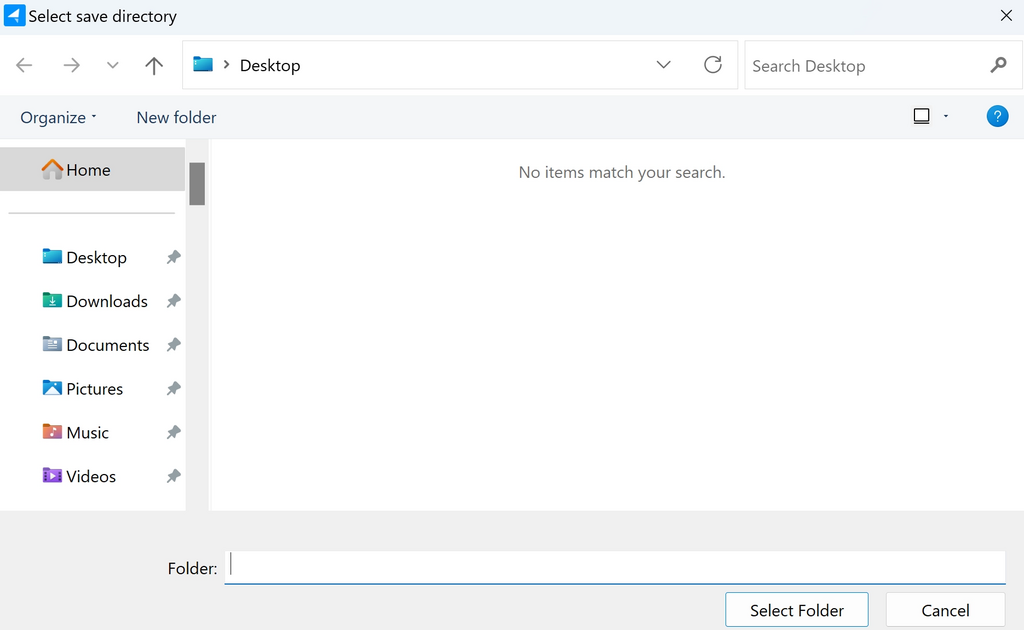

1. A window will open prompting you to select a folder on your computer to store the log file. Choose a location and click Select Folder.

1. AMC will indicate a successful download by displaying Downloaded under Status.

You can find the log file in the storage location of your choice. For a log analysis please share the log file with the DeltaQuad support team [email protected].
