Attaching the Battery
This section describes how to attach the Silvus battery to the radio modem.
Take the Silvus StreamCaster 4240-EP and the Silvus battery out of the upper right compartment of the flight case.
Connect the top of the battery to the bottom of the radio modem.
Align the battery in a 45-degree angle.
Connect both units and turn to align them. The battery locking mechanism will make an audible click sound.

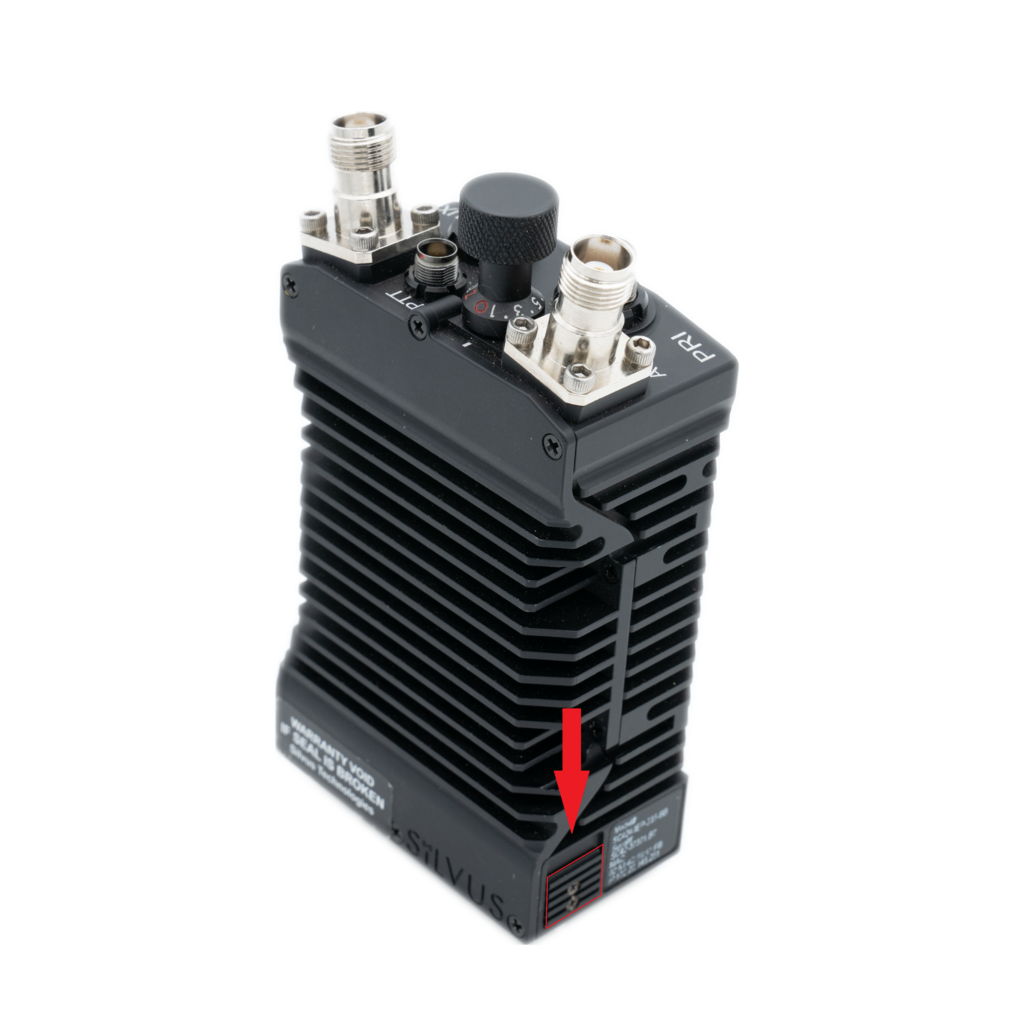

To detach the battery for storage or charging, pull up the battery release latch on the side of the radio modem and turn the battery until it is released.
