  1. DeltaQuad Evo Payloads
  2. NextVision ISR Payloads

Raptor 360

This section gives general information about the Raptor 360 payload and how to install it.

PreviousNextVision ISR PayloadsNextNighthawk2-V/UZ

Last updated 6 months ago

The Raptor is a lightweight long-range dual EO-IR stabilized camera turret. It features a significant IR range increase and an X80 EO zoom.

ZOOM

X80 (X40 + X2 digital)

FOV

60° WFOV – 1.5° NFOV – 0.75° DFOV

THERMAL RESOLUTION

1280×720

PITCH FOR

-45° to +80°

YAW/ROLL FOR

360° Continuous

WEIGHT

850 grams (complete payload)

Installing the Payload

The Raptor 360 can be installed in a single payload configuration or together with the auxiliary battery payload.

When using the Raptor 360 in a single payload configuration, it must be installed in payload slot 1 at the rear of the vehicle (near the pusher motor).

When using the Raptor 360 with the auxiliary battery, the auxiliary battery must be installed in payload slot 1, as it is the heaviest payload, and the Raptor 360 must be installed in payload slot 2.

DeltaQuad Evo Payload Slot Layout
  • Slot 1: Located at the rear end of the fuselage, closest to the pusher propeller.

  • Slot 2: Located at the front end of the fuselage, closest to the nose of the vehicle.

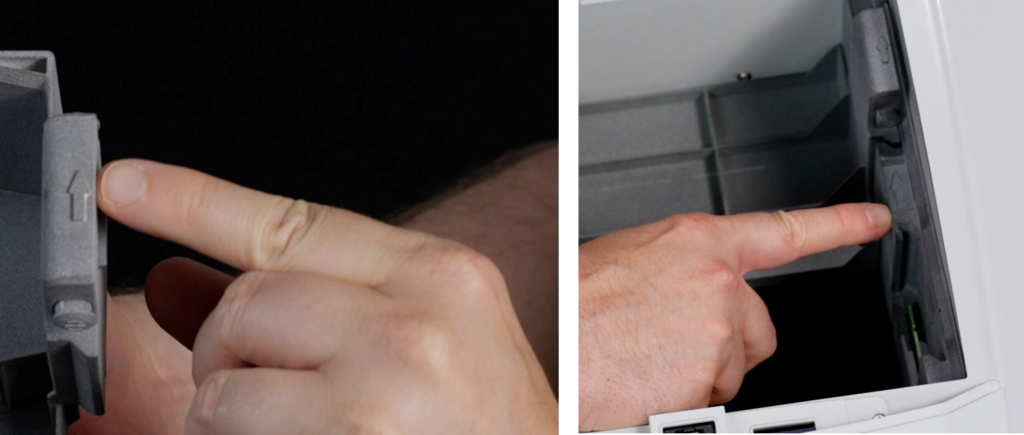

Each payload box features two arrows on top of each handle, corresponding to arrows on each side of the DeltaQuad Evo's payload bay. The arrows on the payload boxes must align with those in the payload bay, always pointing toward the front (nose) of the vehicle.

Removing a Payload Box

Each payload box has handles with two locking pins positioned opposite each other. To remove the payload box, grasp the handles with both hands, press the locking pins inward, and pull the payload box out.

Trip 2

The payload box contains the camera and its onboard computer, the Trip 2. On top of the Trip 2, there is a micro SD card slot that accommodates cards of up to 32GB for onboard storage.

If onboard media storage is required, ensure that a compatible micro SD card is installed in the Trip 2 board computer and has sufficient available storage space.

For more information please review the chapter .

Auxiliary Battery Placement
Raptor 360 in a single payload configuration.
Raptor 360 in a dual payload configuration with an auxiliary battery.
