Payload Manager

This section explains the functionality of the Payload Manager.

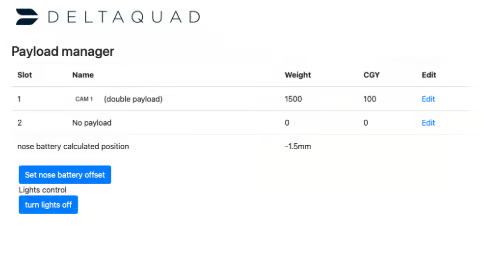

The Payload Manager provides an overview of the installed payloads and allows you to edit their settings. It also displays the offset of the main battery in the nose of the vehicle, with the option to adjust the value. Additionally, you can enable or disable the white navigation lights on the Evo's wing tips.

• Power up the vehicle and the GCS.

• Open the WebUI: 10.41.1.1:5001 after a connection between the Evo and the GCS has been established.

The Payload Manager can be used to verify whether all payloads are registered by the system. Payloads integrated by DeltaQuad are preconfigured and require no additional changes. For Custom Payload Kits, relevant values can be added in the Payload Manager for the respective payload. The nose battery offset is set during production and only needs to be adjusted if hardware in the avionics bay is changed.
