DeltaQuad Evo flight case

PreviousSetupNextAssembly

Last updated 12 months ago

The DeltaQuad Evo and its accessories are stored in a rugged flight case.

Package contents

  • 1 x Fuselage

  • 2 x Wing

  • 4 x DeltaQuad Evo Semi Solid-State Li-ion battery

  • DeltaQuad Dual Battery Charger

  • 1x auxiliary battery payload box

  • 1x empty payload box

  • Ground Control Station (Controller or ruggedized laptop) and accessories

  • Optional payloads

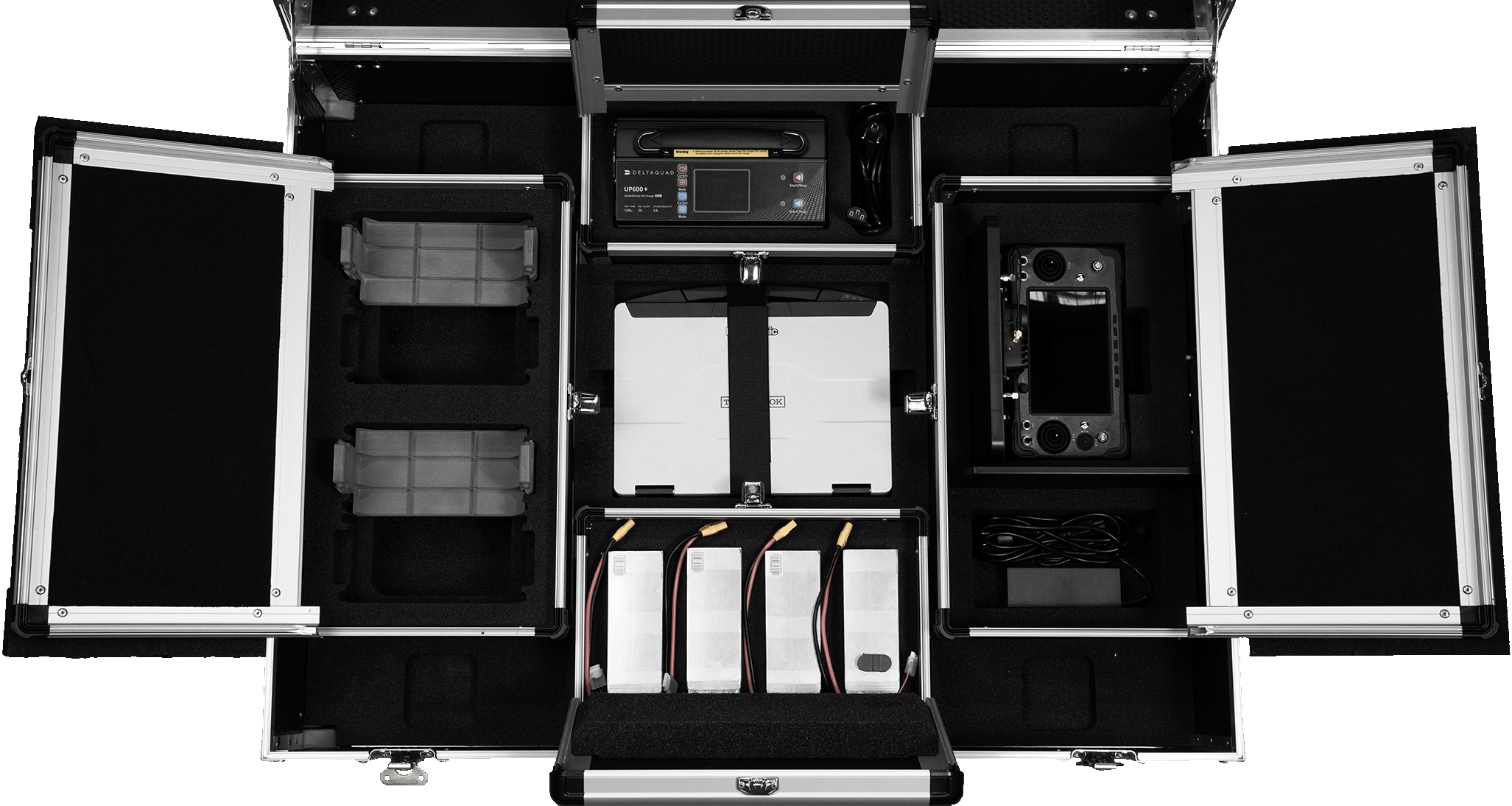

When removing the fuselage from the flight case you gain access to five extra compartments

Nr.
Compartment

1

Controller* and accessories

2

Battery compartment

3

Payload compartment

4

Dual Charger compartment

5

Ruggedized laptop*

*Depending on the Evo version, the Ground Control Station can be either a hand controller or a ruggedized laptop. The functionality and use of this equipment will be discussed in a later chapter of this manual.
