# DeltaQuad Toughbook

{% hint style="info" %}

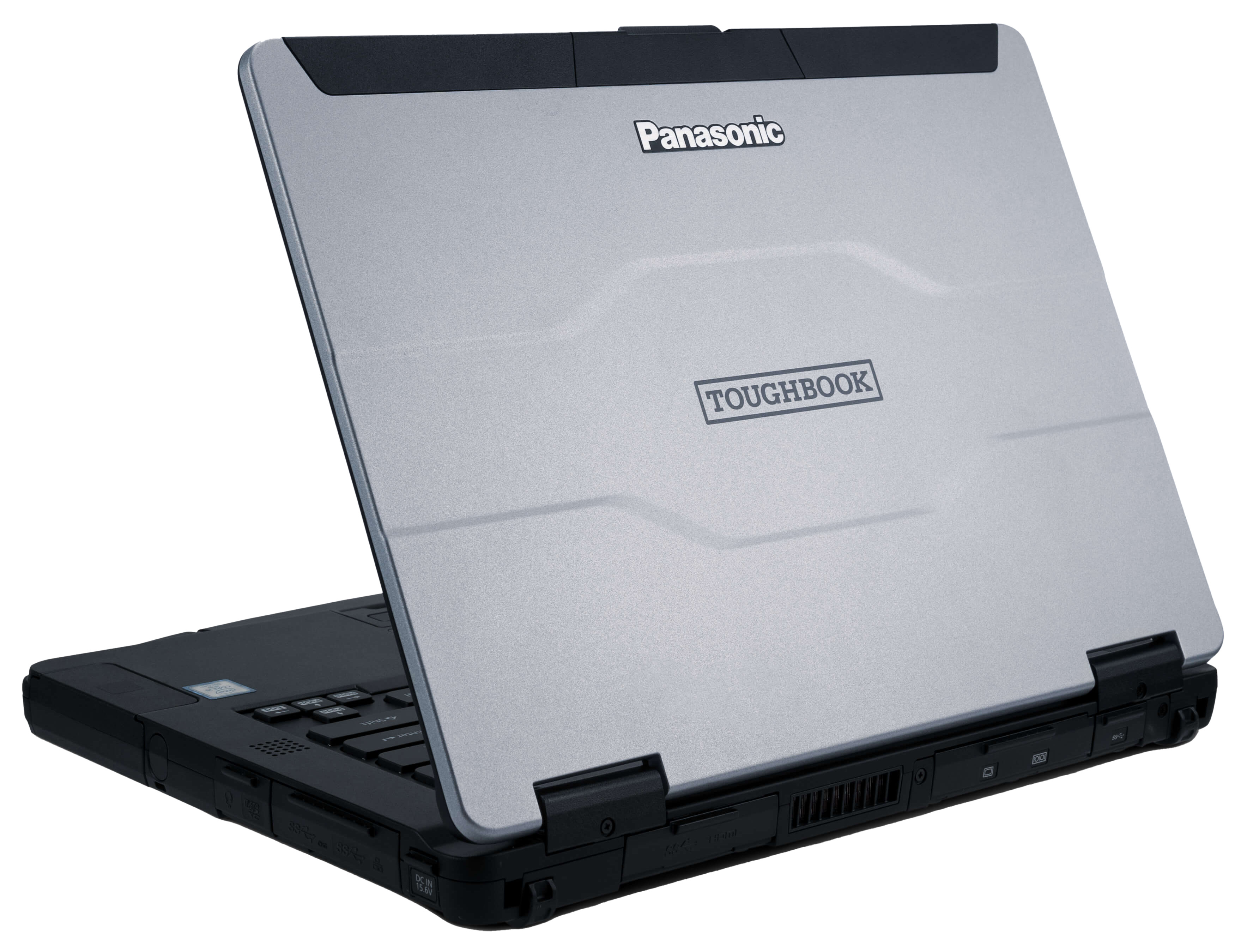

The DeltaQuad Evo GOV comes with the **DeltaQuad Toughbook**, which has Auterion Mission Control pre-installed. This software provides the communication link between your UAV and the ground systems. The DeltaQuad Military Toughbook is a MIL-STD ruggedized touch-screen laptop, built using the Panasonic TOUGHBOOK FZ-55 with a magnesium chassis, flexible configurations, and a universal bay.
{% endhint %}

<figure><img src="/files/vEfl40ZcXVYhADgxvPVq" alt="" width="563"><figcaption></figcaption></figure>

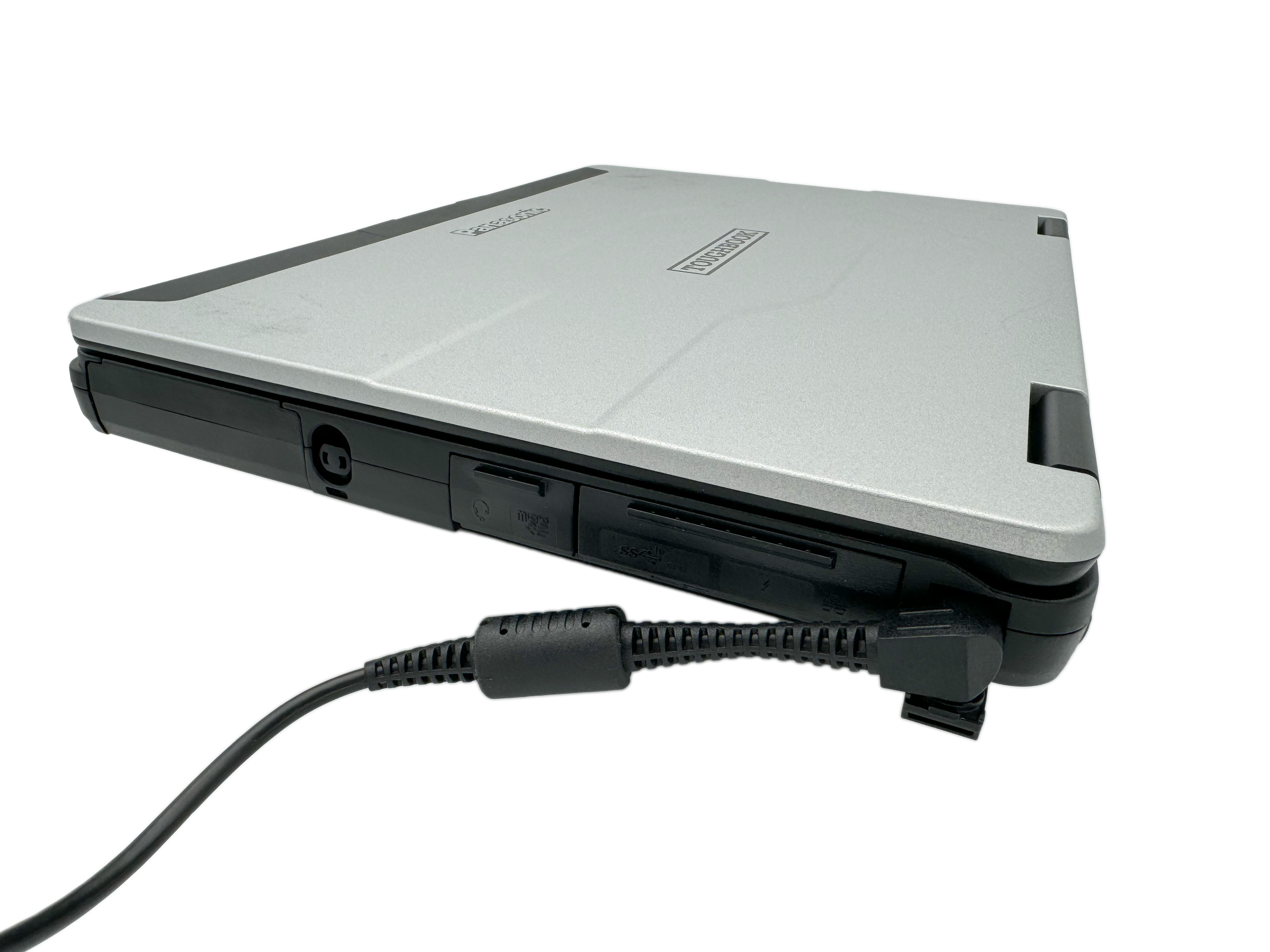

To charge the Toughbook, please use the provided power adapter.

<figure><img src="/files/KNUB6mKcLYvXfNONygbT" alt="" width="563"><figcaption></figcaption></figure>

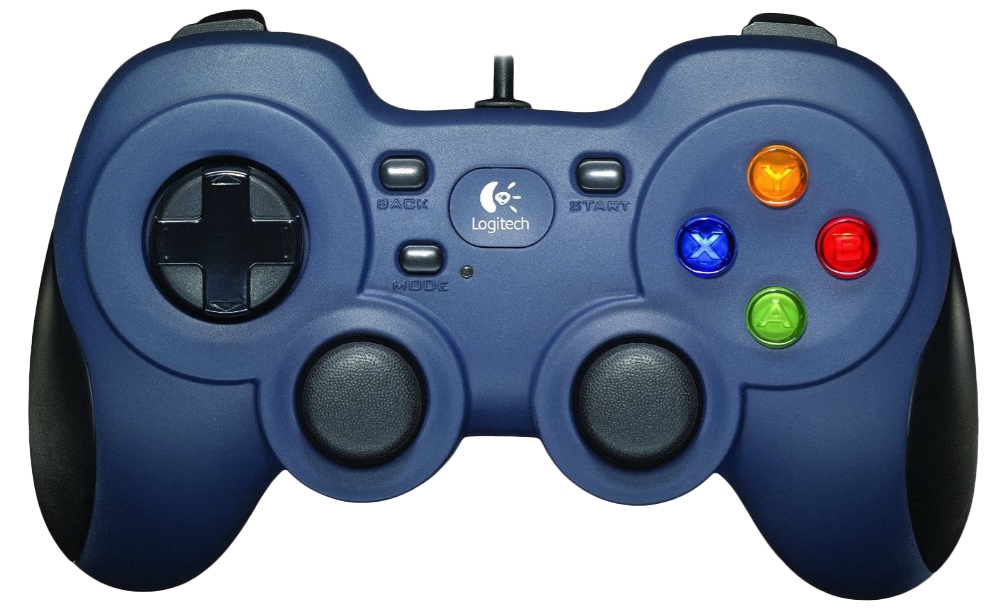

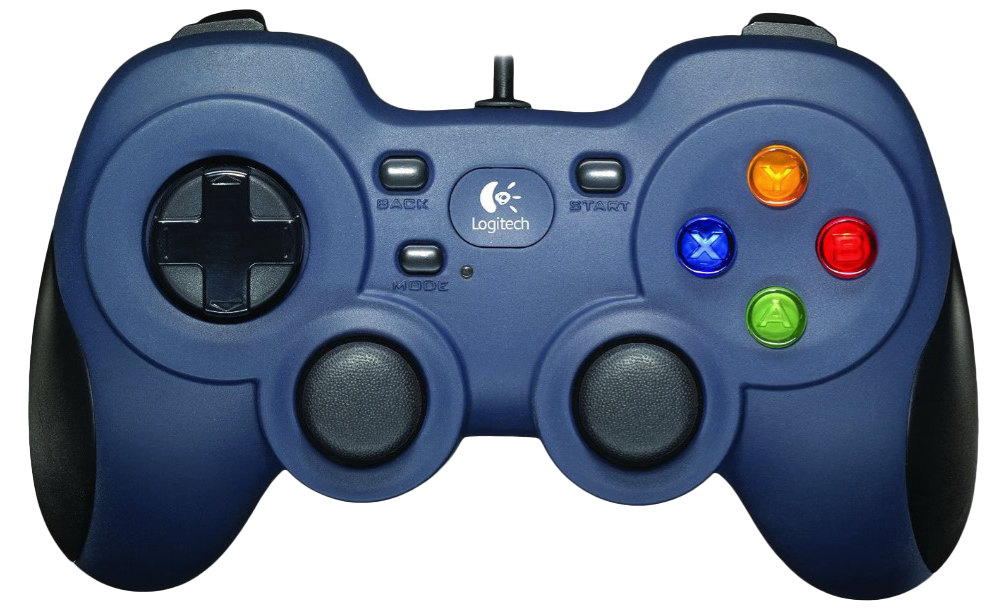

The handheld controller enables manual override, precision landing, and camera gimbal control during fixed-wing flight.

<figure><img src="/files/hreQPO6VtIUktu3RgaCi" alt="" width="563"><figcaption></figcaption></figure>

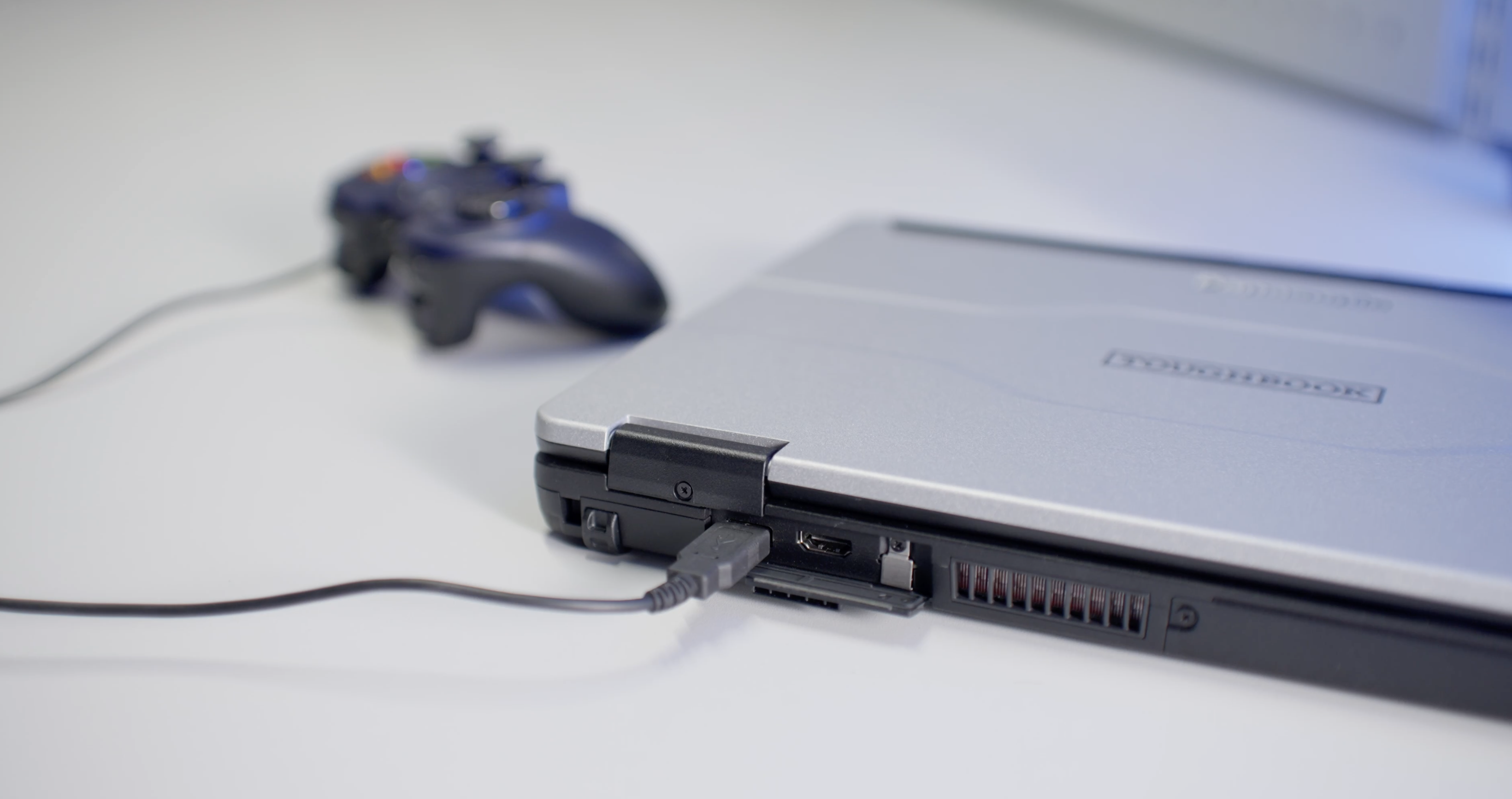

To connect the handheld controller to the Toughbook, plug the USB connector of the controller to any of the USB ports of the Toughbook.

<figure><img src="/files/3h8WUnUNDBEvXsBTTEwx" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/mvkYd30qHhXV2kUhtuV2" alt="" width="563"><figcaption></figcaption></figure>

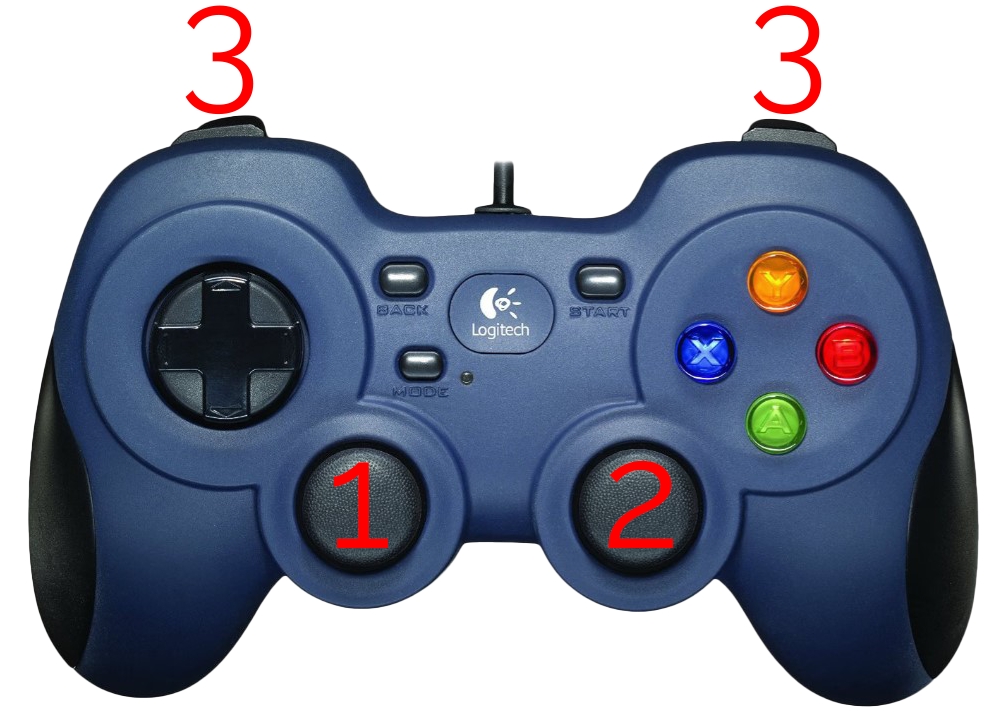

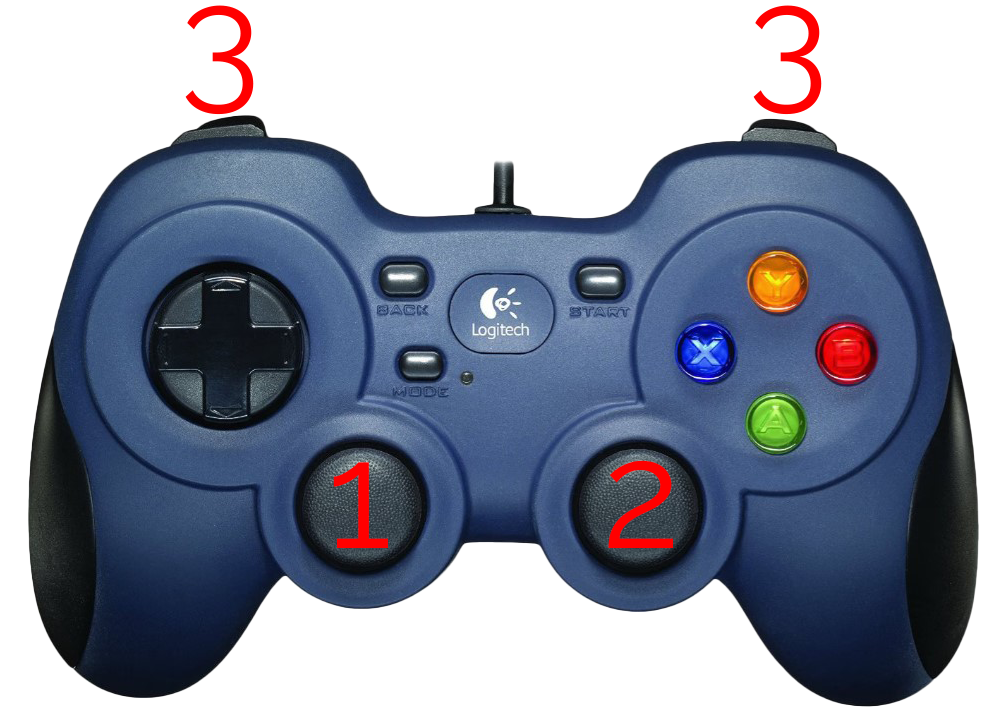

| Number | Type                       | Function                                                                                                                                                                                                                                                                                                                                             |
| ------ | -------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| 1      | Left joystick              | <p><strong>In hover mode</strong></p><p>Stick up: climb</p><p>Stick down: descend</p><p>Stick left: yaw left</p><p>Stick right: yaw right</p><p></p><p><strong>In fixed-wing mode (payload dependent)</strong></p><p>Stick up: gimbal up</p><p>Stick down: gimbal down</p><p>Stick left: gimbal left</p><p>Stick right: gimbal right</p>             |
| 2      | Right joystick             | <p><strong>In hover mode</strong></p><p>Stick up: move forward</p><p>Stick down: move backward</p><p>Stick left: move left</p><p>Stick right: move right</p><p></p><p><strong>In fixed-wing mode</strong></p><p>Stick up: descend (nose down)</p><p>Stick down: climb (nose up)</p><p>Stick left: bank left</p><p>Stick right: bank right</p><p></p> |
| 3      | Shoulder buttons L1 and R1 | Gimbal zoom for ISR payloads                                                                                                                                                                                                                                                                                                                         |


---
