  1. Setup

DeltaQuad Evo flight case

PreviousSetupNextAssembly

Last updated 1 year ago

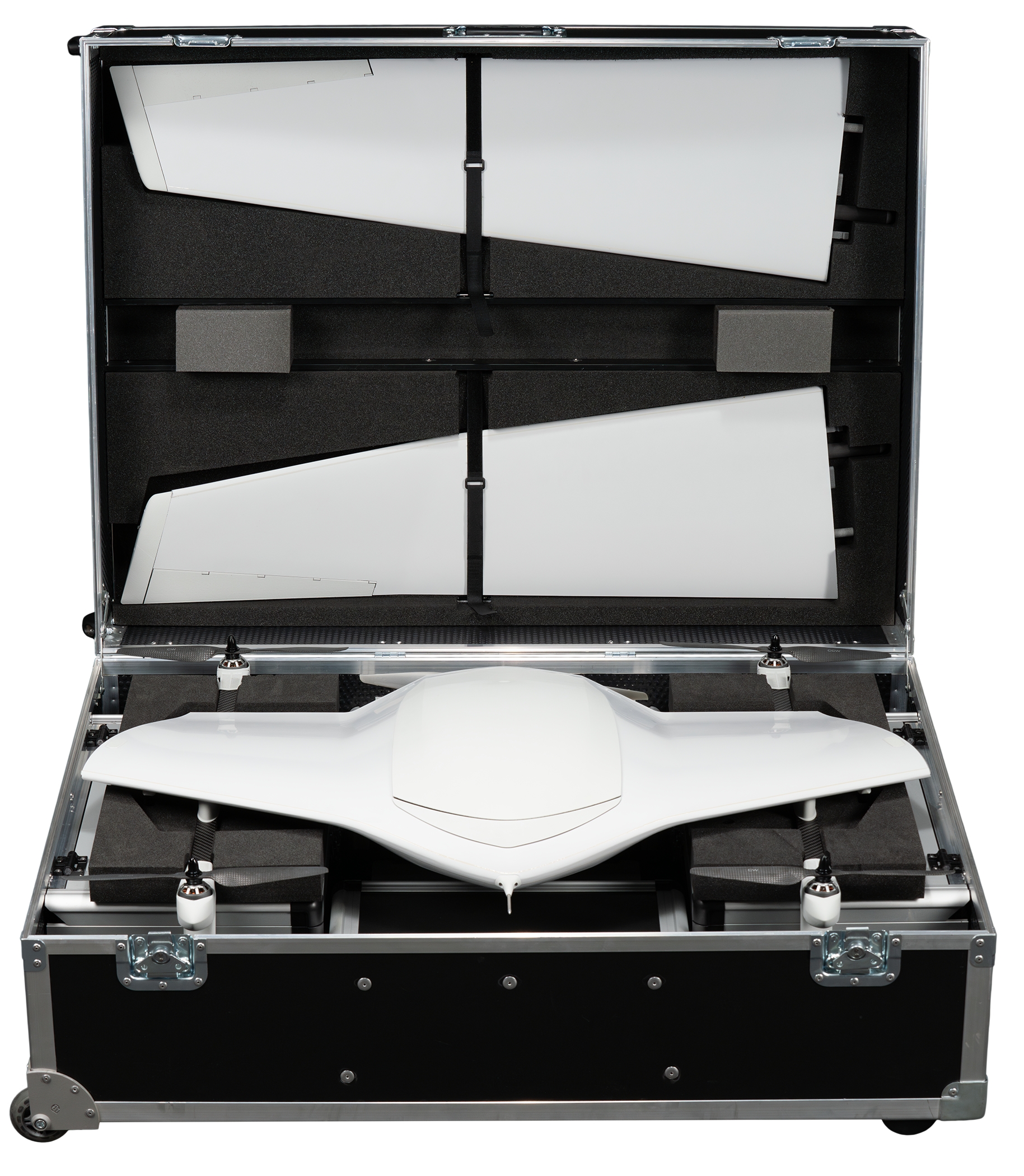

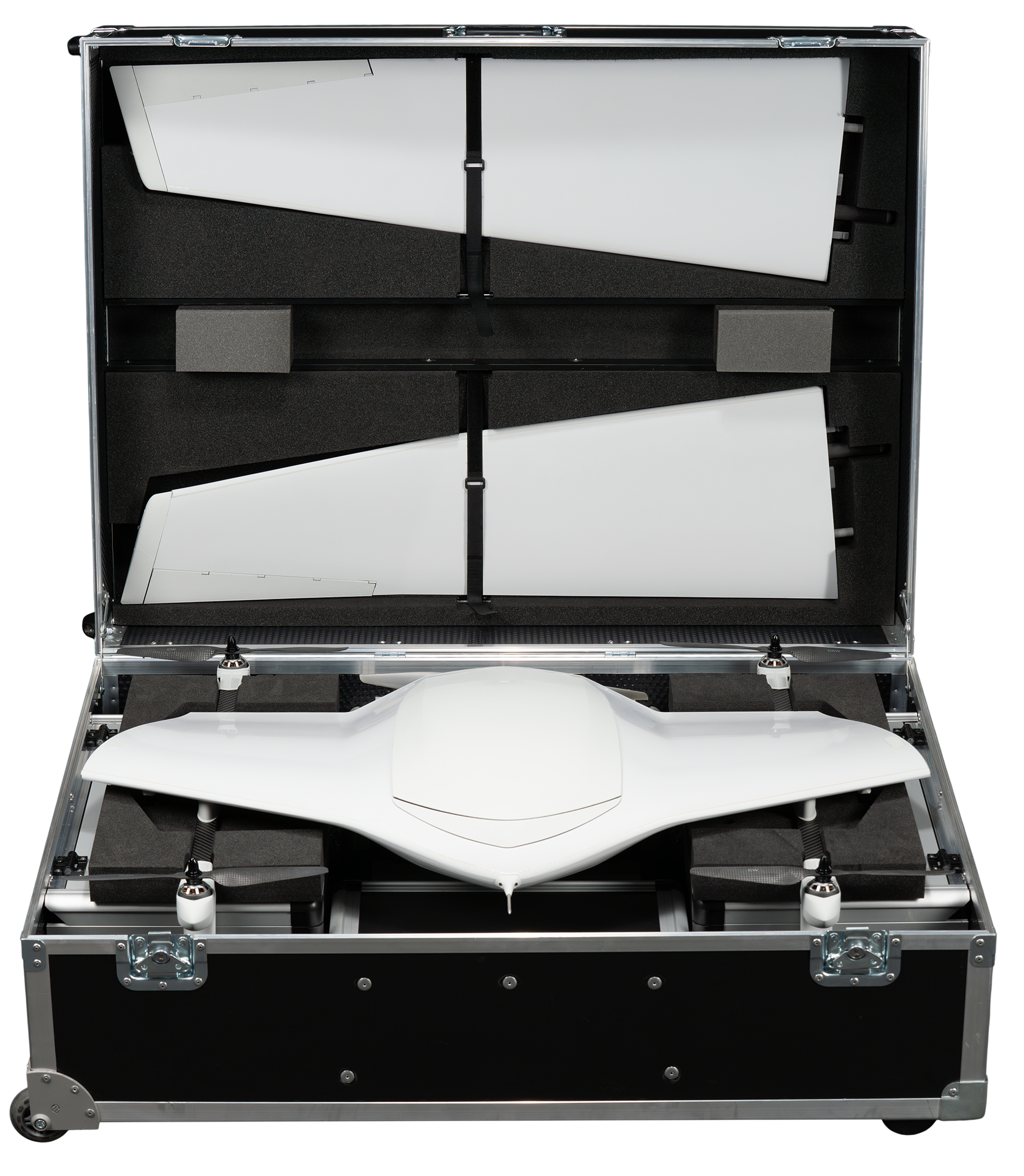

The DeltaQuad Evo and its accessories are stored in a rugged flight case.

Package contents

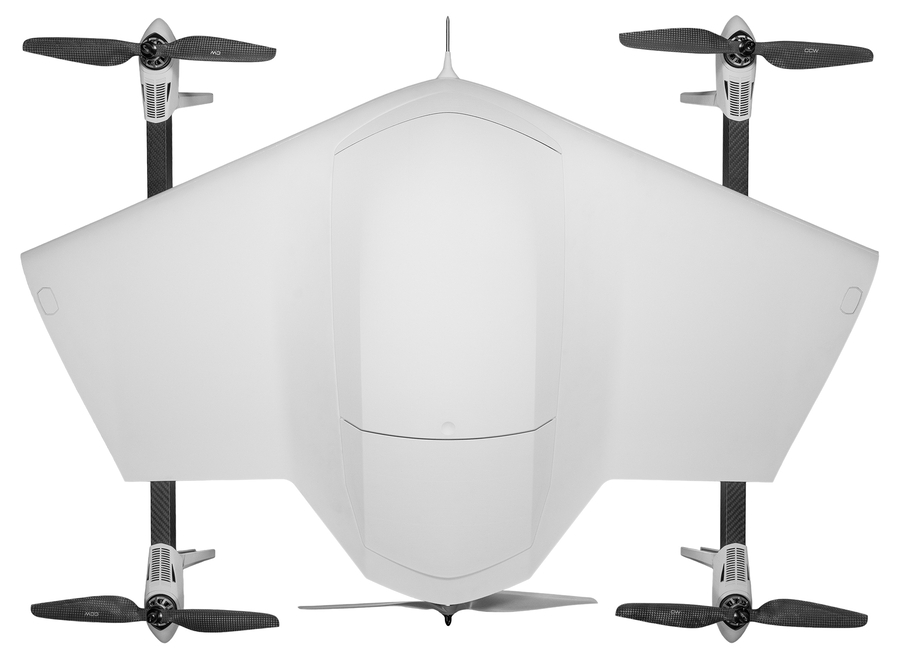

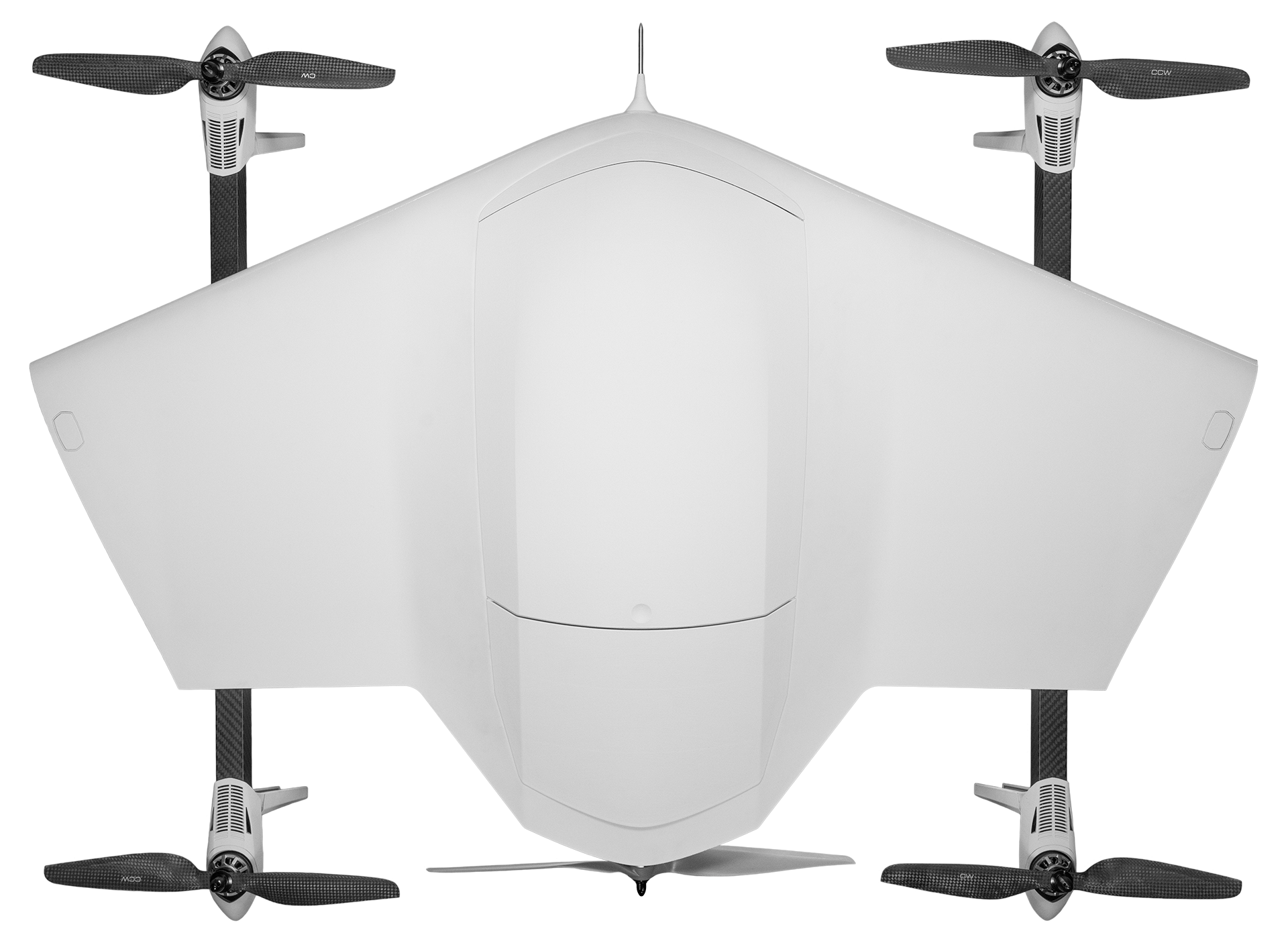

  • 1 x Fuselage

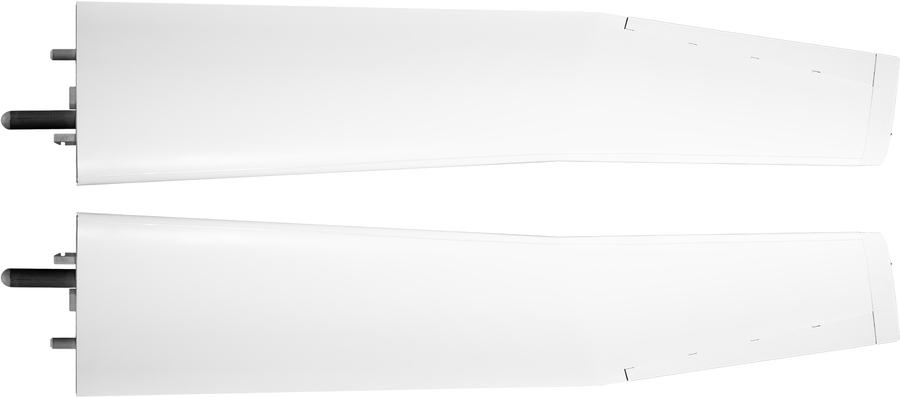

  • 2 x Wing

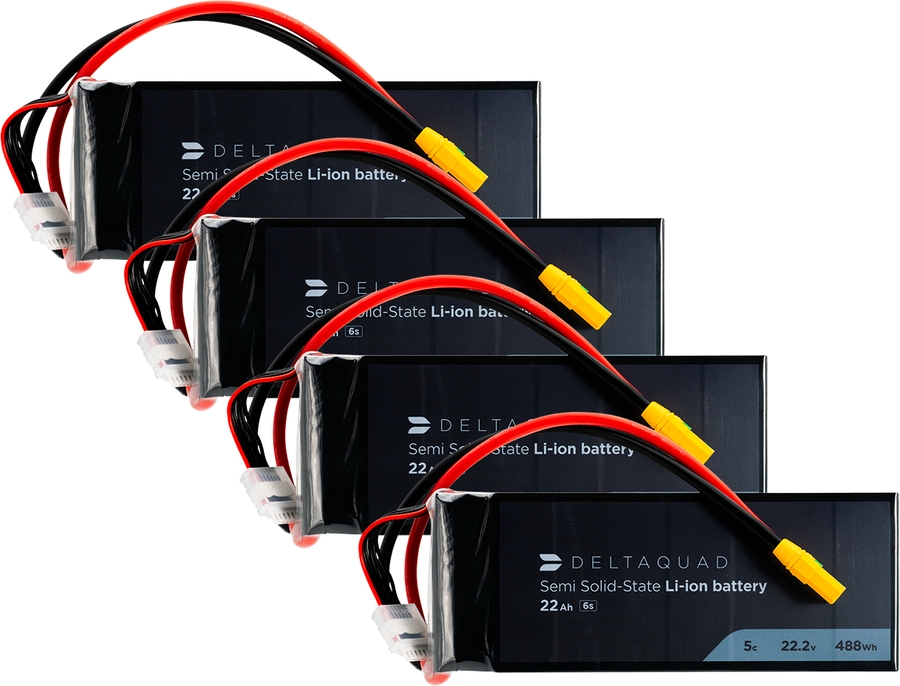

  • 4 x DeltaQuad Evo Semi Solid-State Li-ion battery

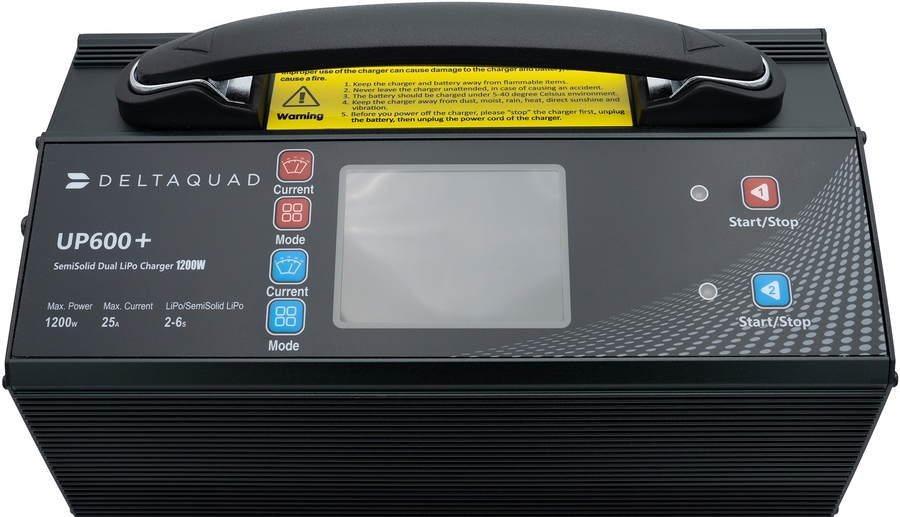

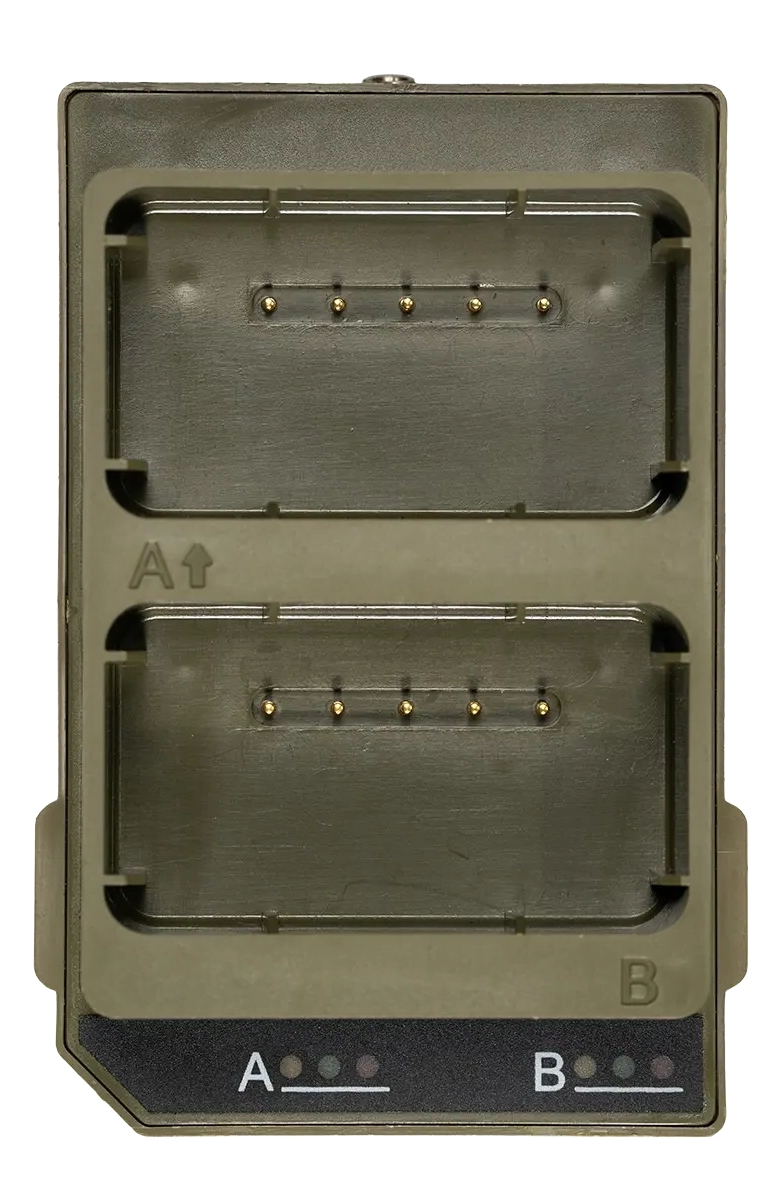

  • DeltaQuad Dual Battery Charger

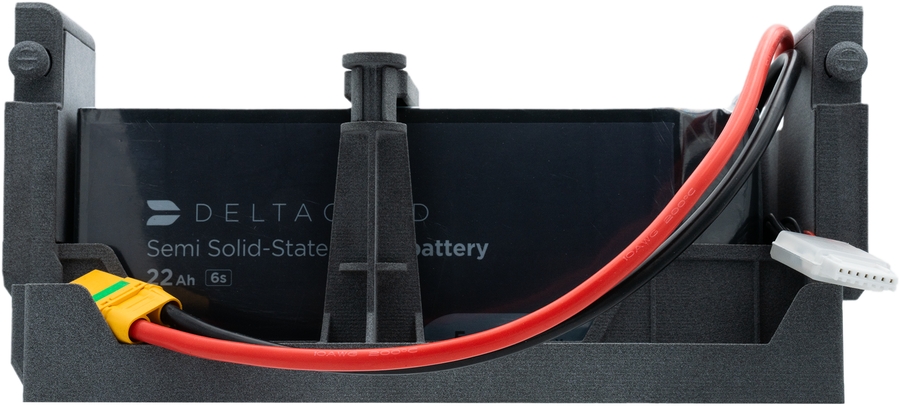

  • 1x auxiliary battery payload box

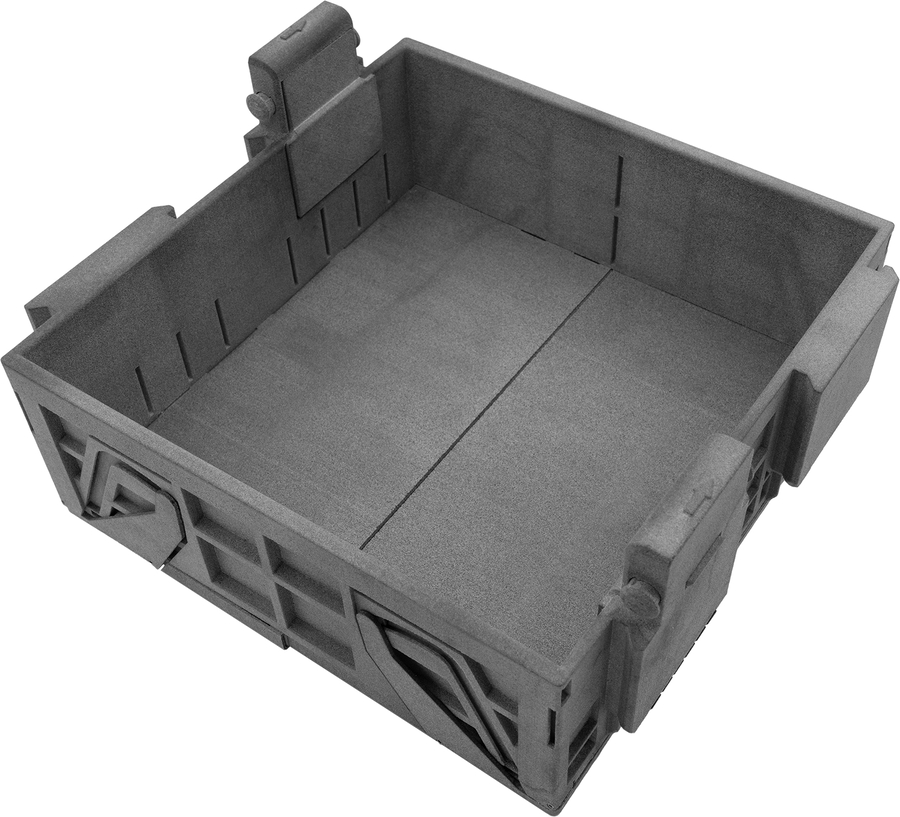

  • 1x empty payload box

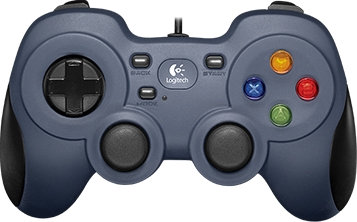

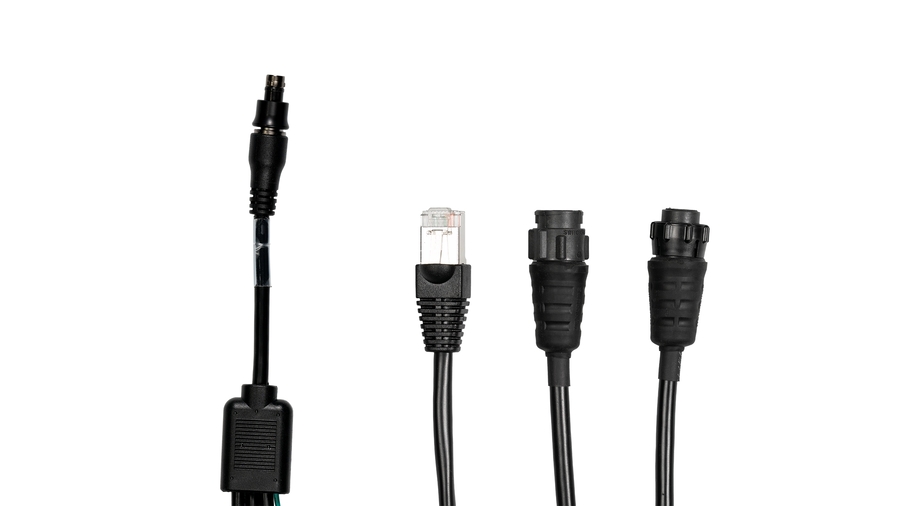

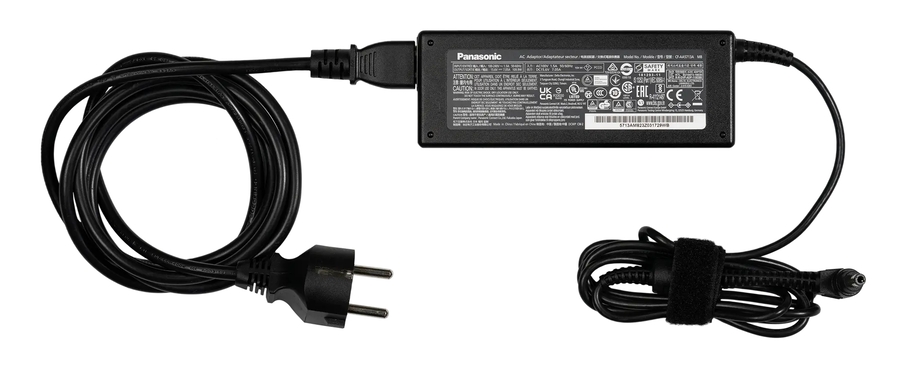

  • Ground Control Station (Controller or ruggedized laptop) and accessories

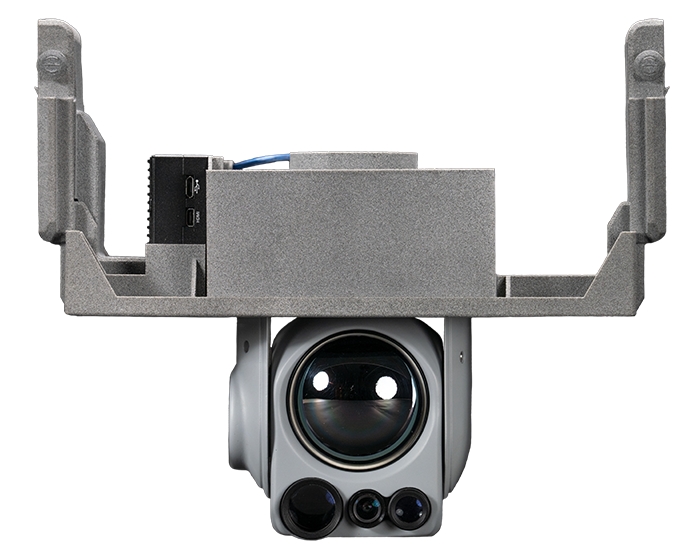

  • Optional payloads

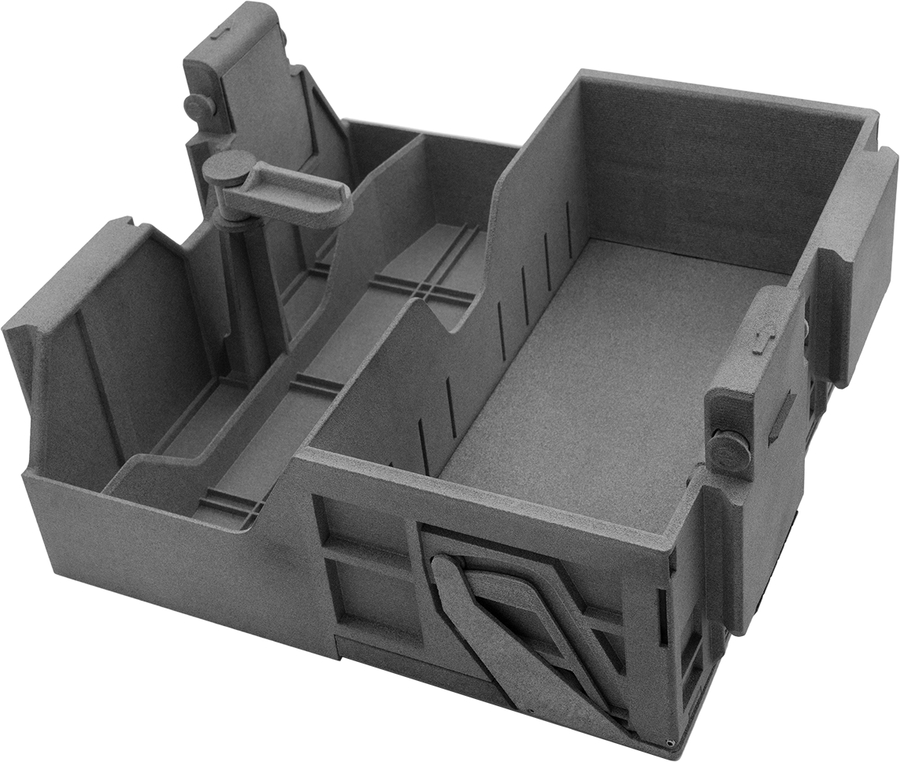

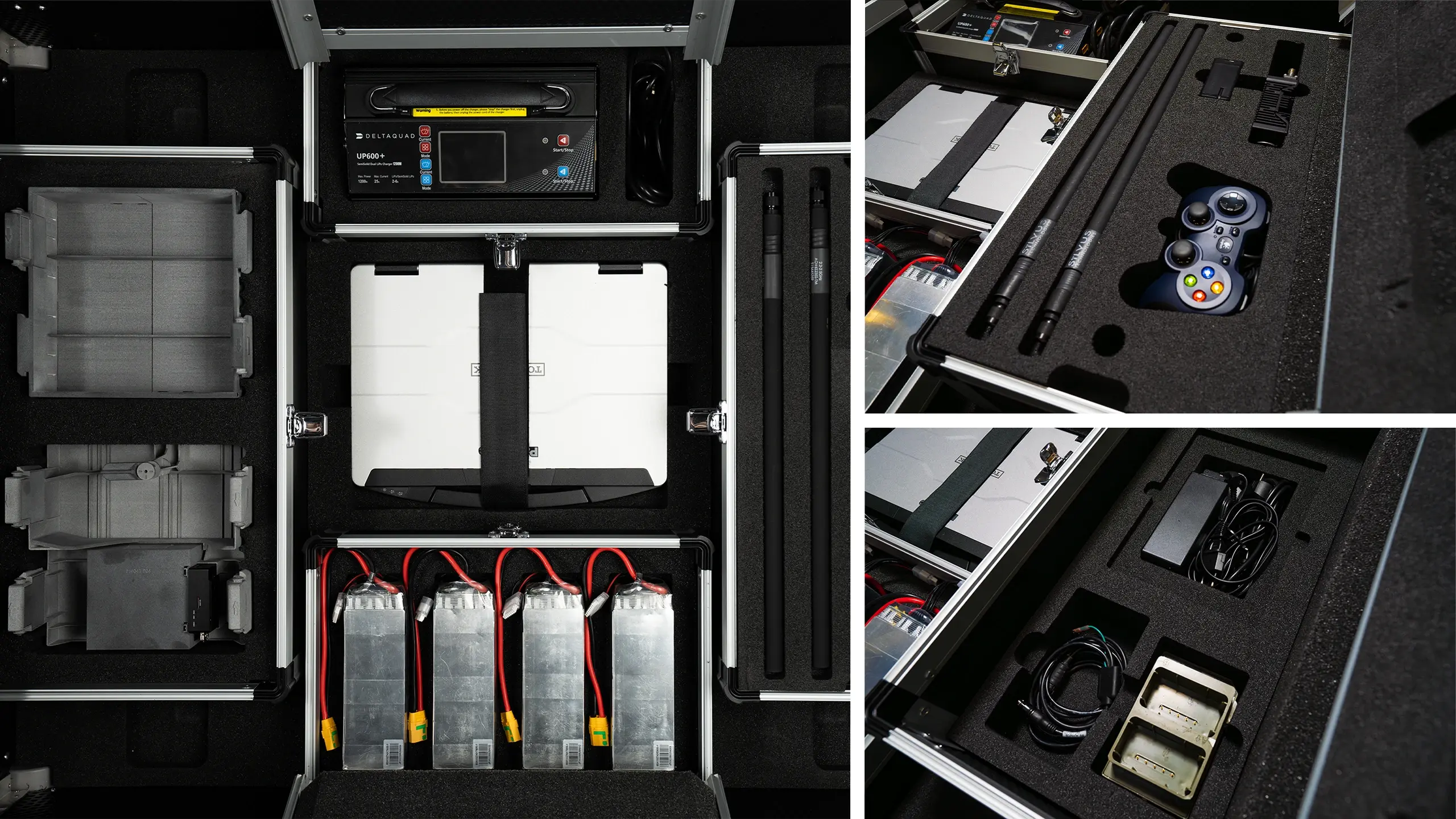

When removing the fuselage from the flight case you gain access to five extra compartments

Nr.
Compartment

1

Controller* and accessories

2

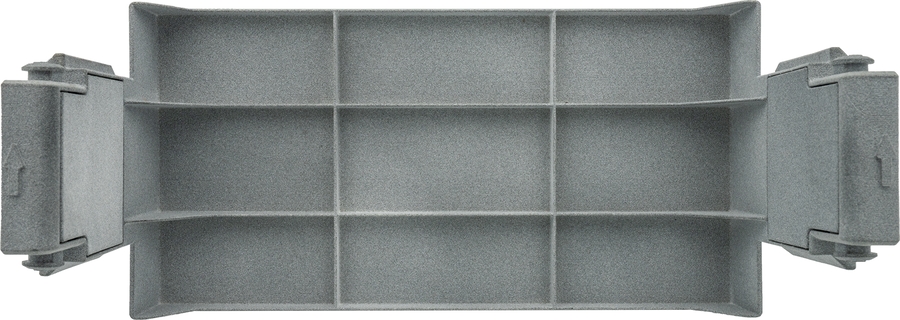

Battery compartment

3

Payload compartment

4

Dual Charger compartment

5

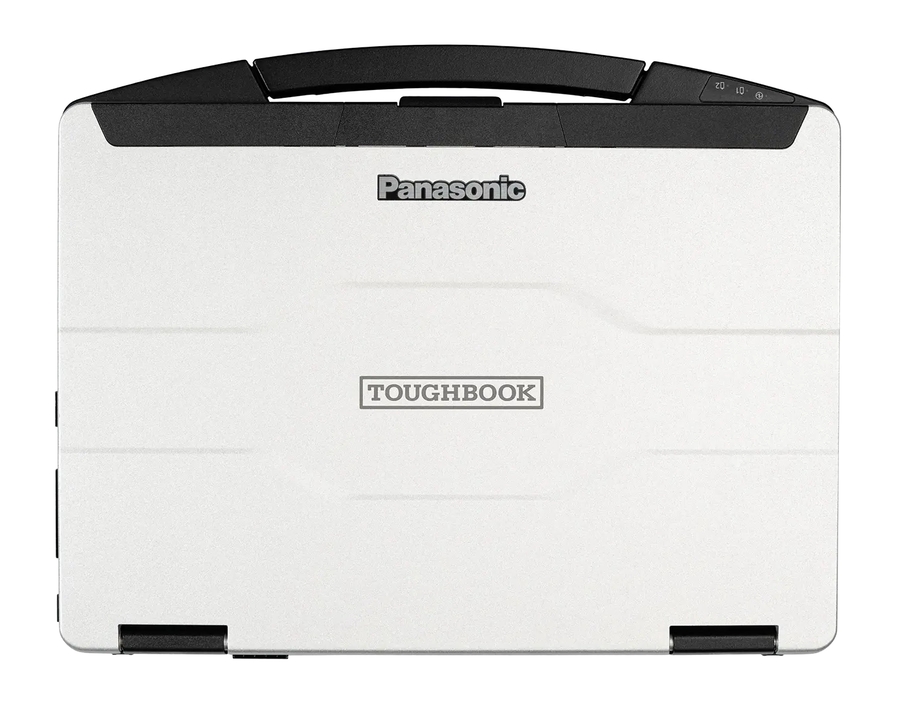

Ruggedized laptop*

*Depending on the Evo version, the Ground Control Station can be either a hand controller or a ruggedized laptop. The functionality and use of this equipment will be discussed in a later chapter of this manual.
