# Main Battery Placement

{% hint style="warning" %}
Always fly with a fully charged battery **(at least 95%)**.
{% endhint %}

## Placing the Main Battery

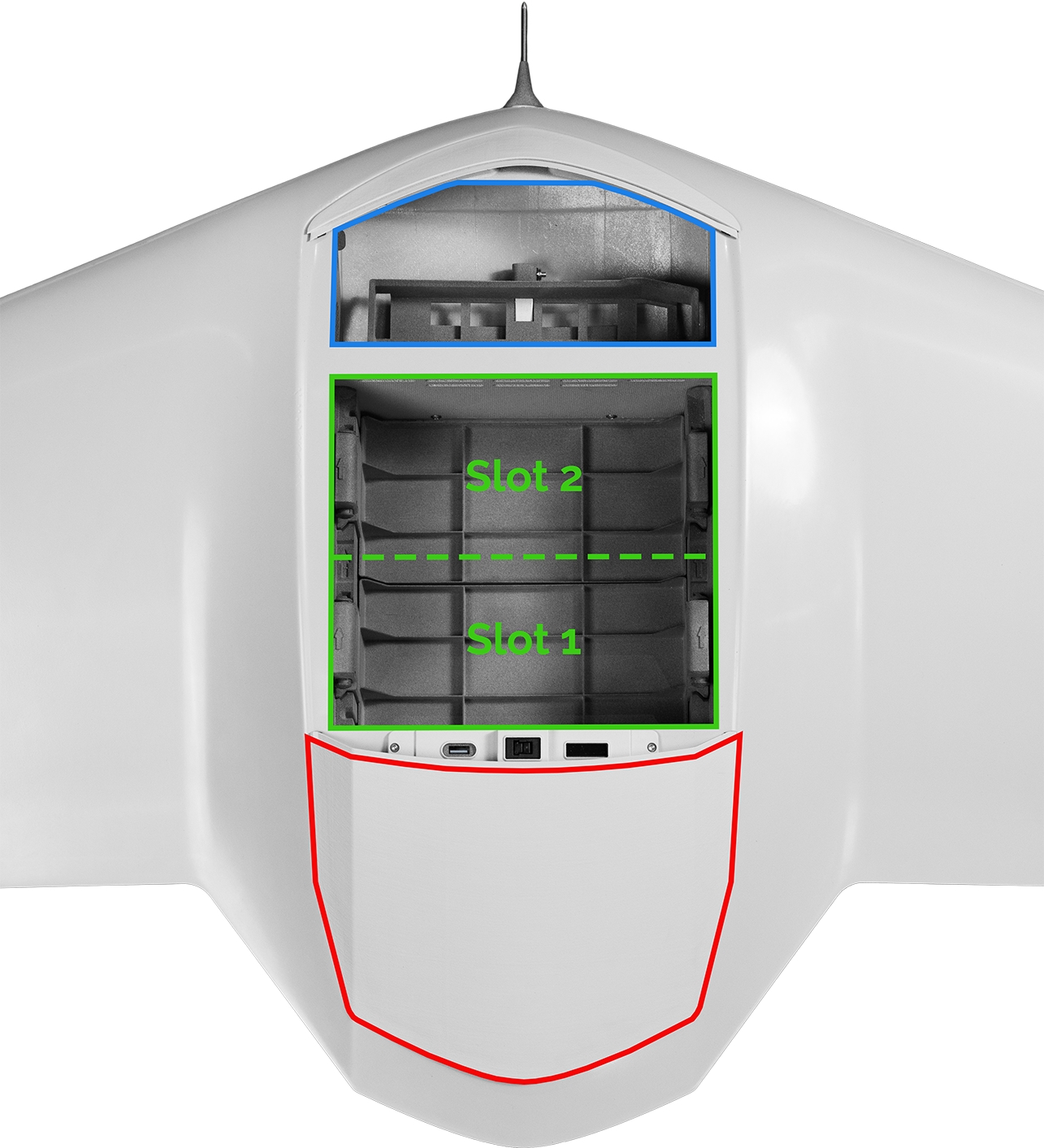

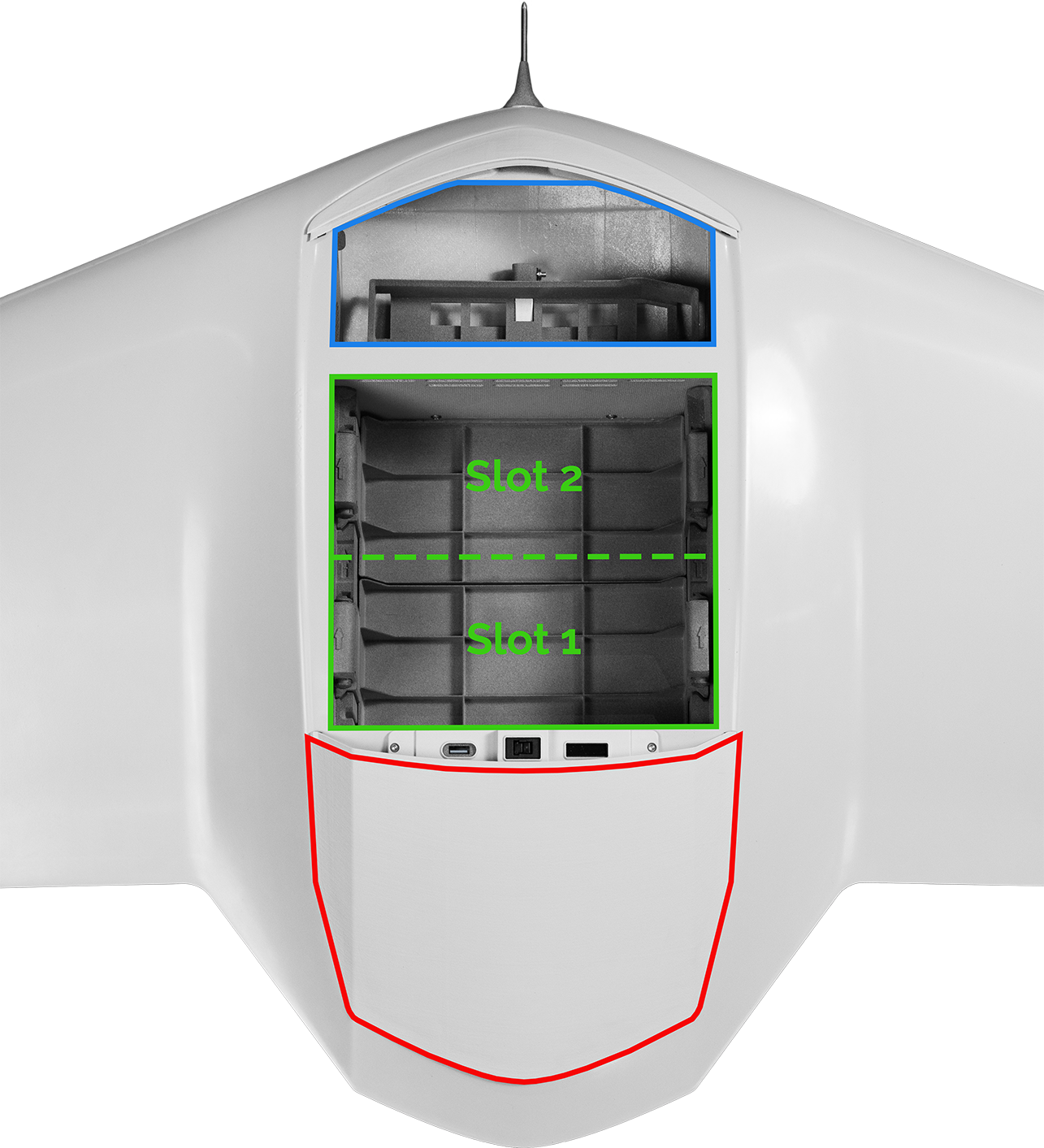

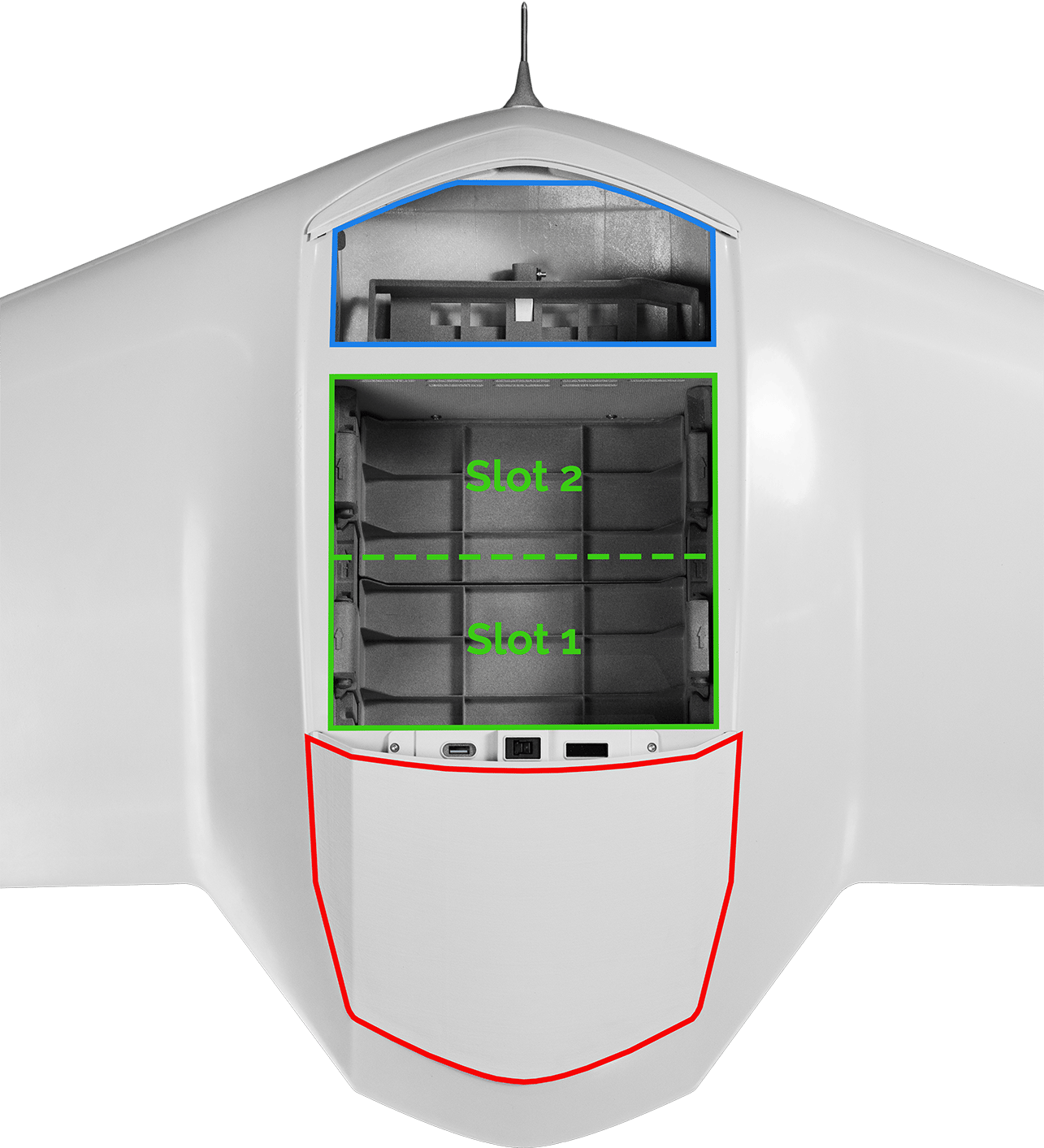

The DeltaQuad Evo has a battery bay (blue), a payload bay (green), and an avionics bay (red).

<figure><img src="/files/kvgGcqWdkyPqpjm33UcF" alt="" width="563"><figcaption></figcaption></figure>

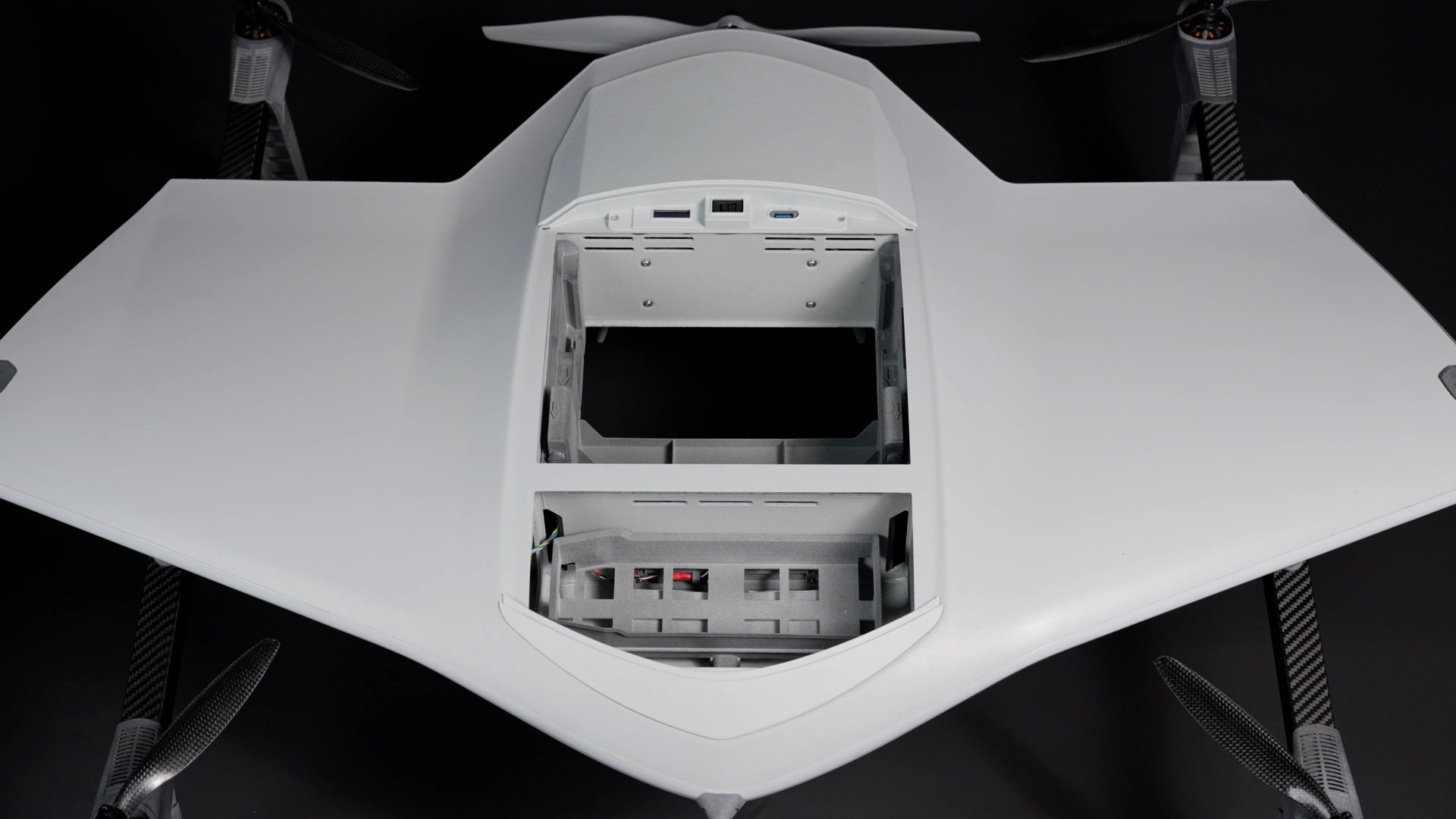

The main battery needs to be placed on the tray in the battery bay which is located at the front of the fuselage.&#x20;

<figure><img src="/files/ka4YsxOujhO1Cv4fBykz" alt=""><figcaption></figcaption></figure>

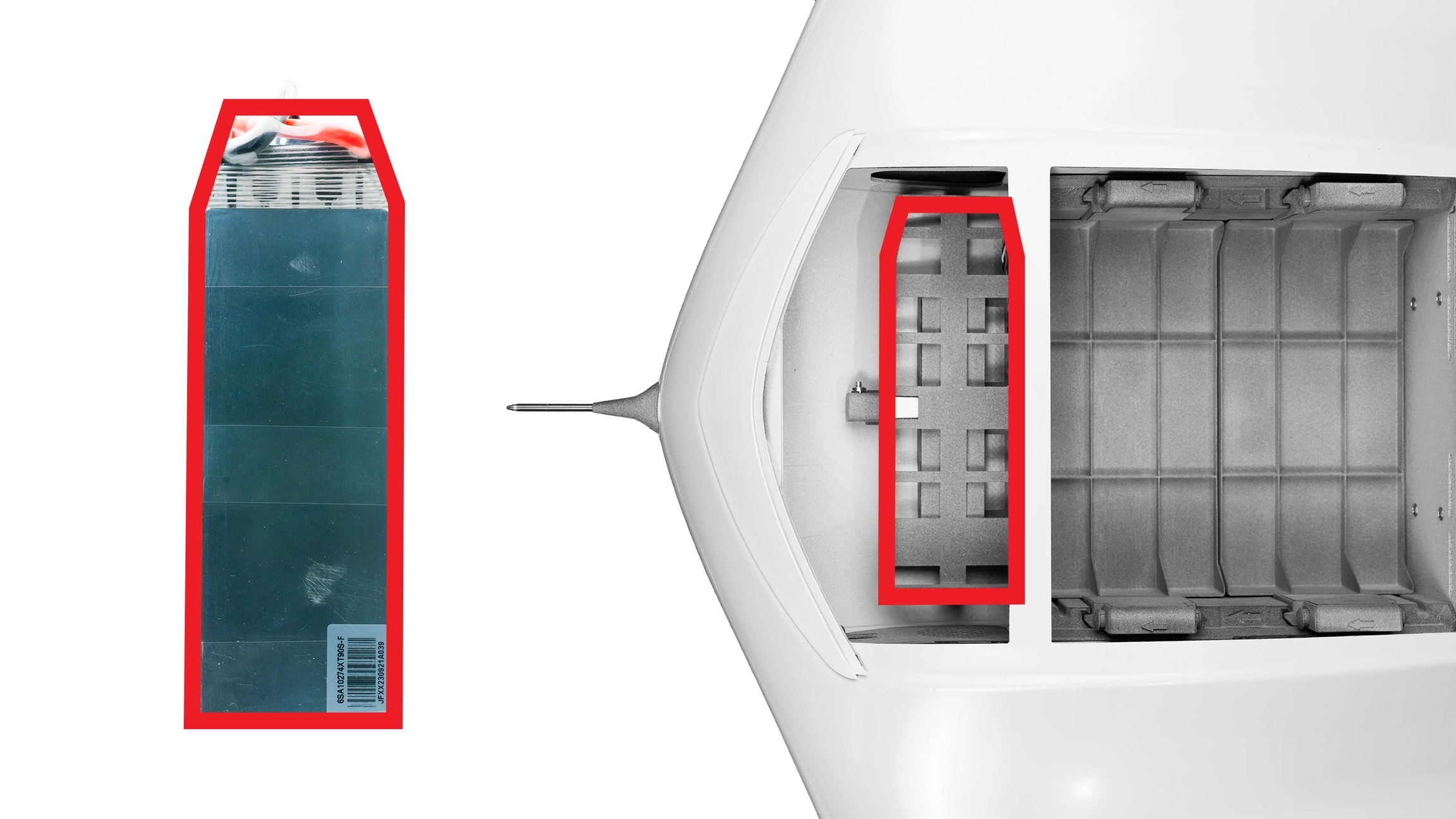

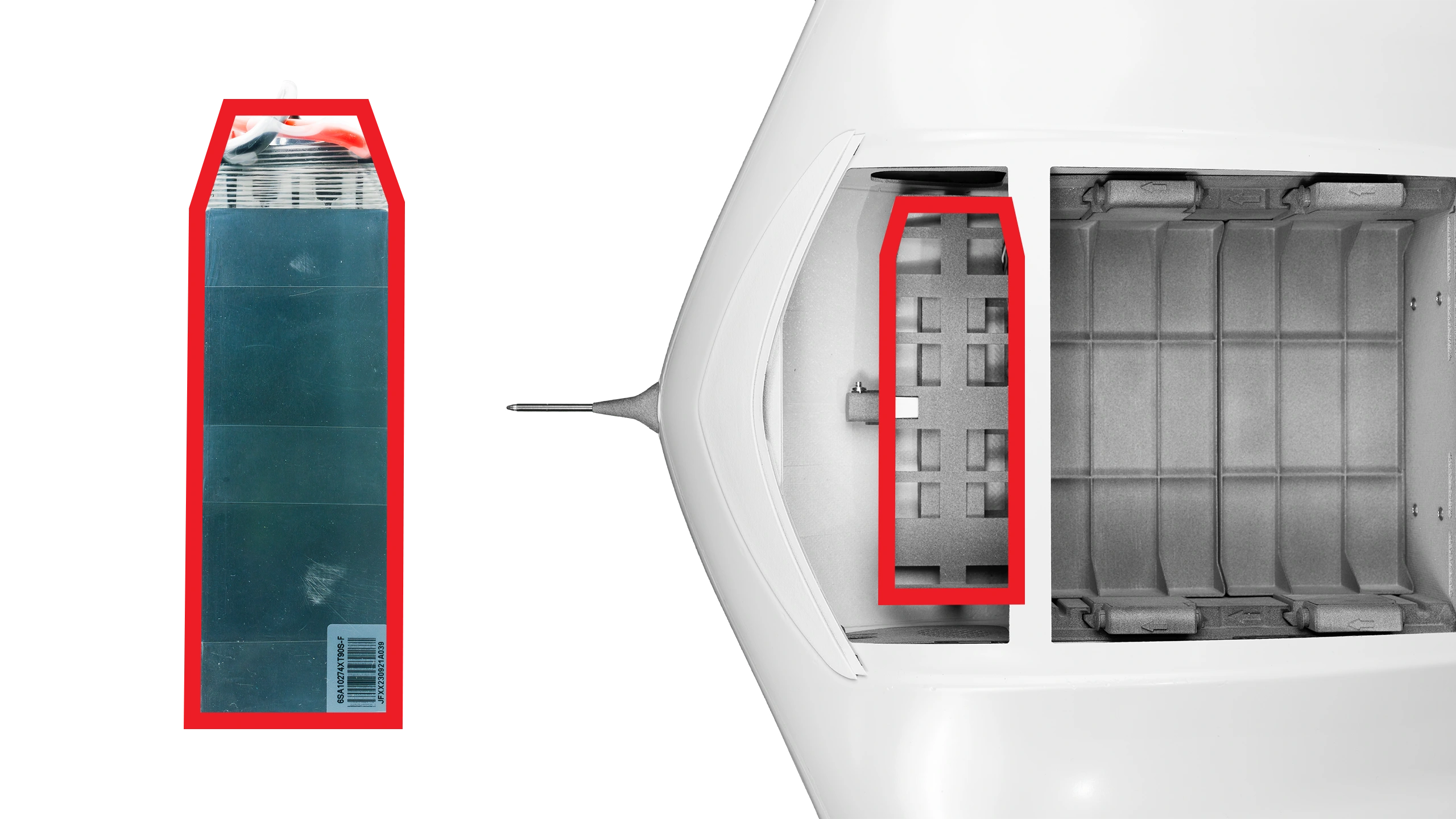

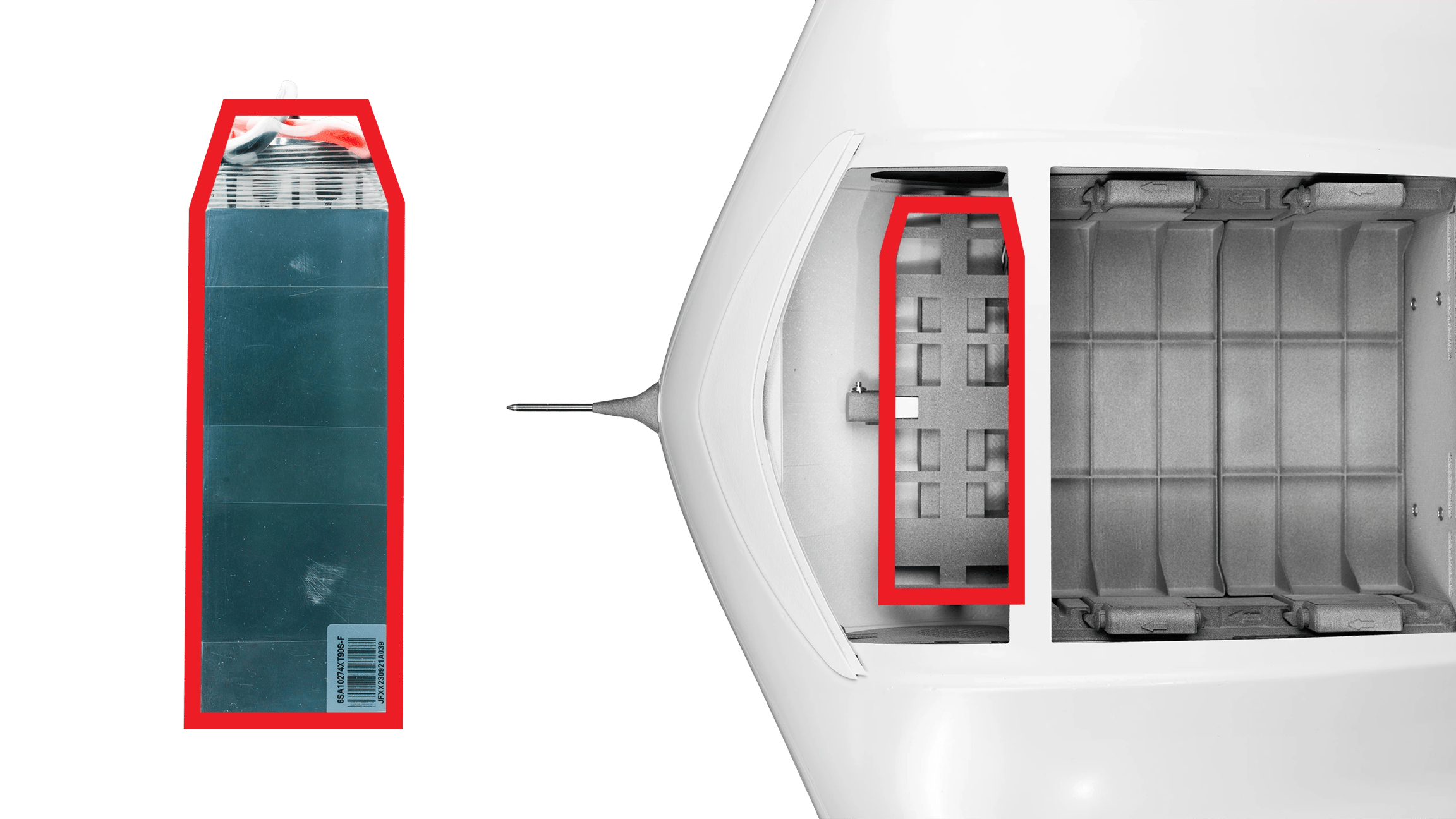

The tray has the same form and shape as the underside of the battery.&#x20;

<figure><img src="/files/WtYdqbgjnxv2u3blXfUh" alt=""><figcaption></figcaption></figure>

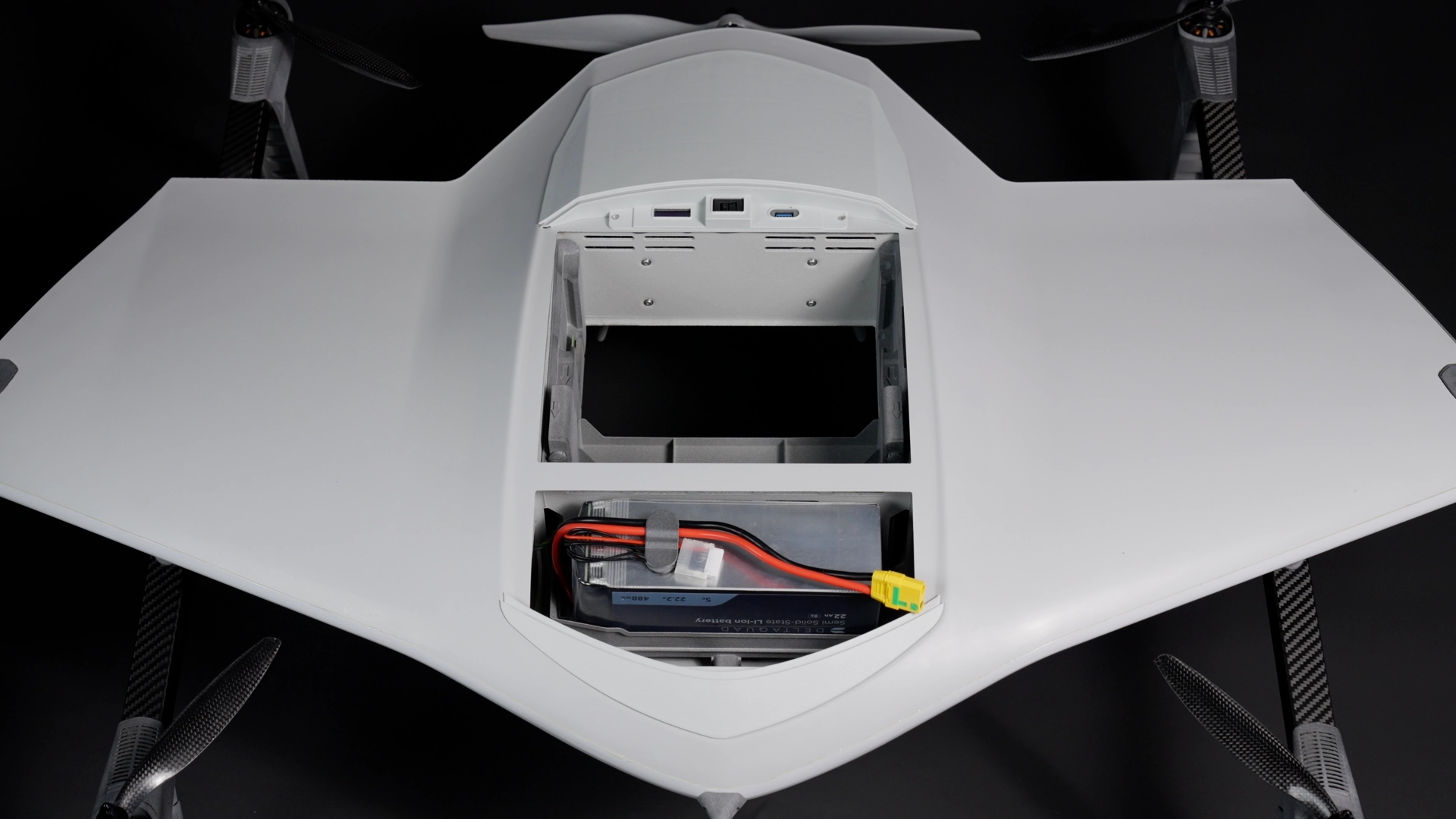

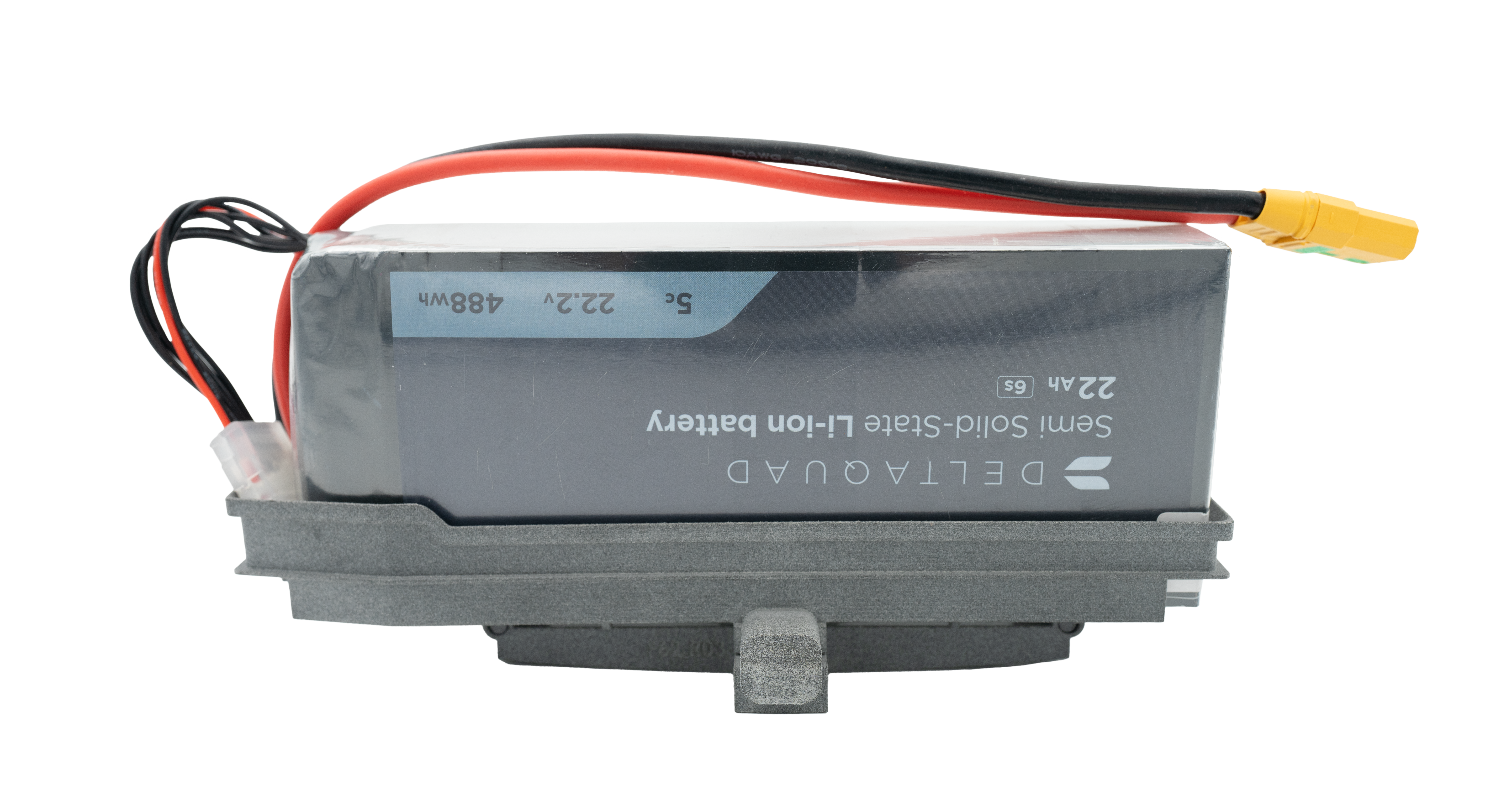

The battery must be placed in such a way that it fits on the tray.

<figure><img src="/files/TyuBBMfQwW3guVNsXeco" alt=""><figcaption></figcaption></figure>

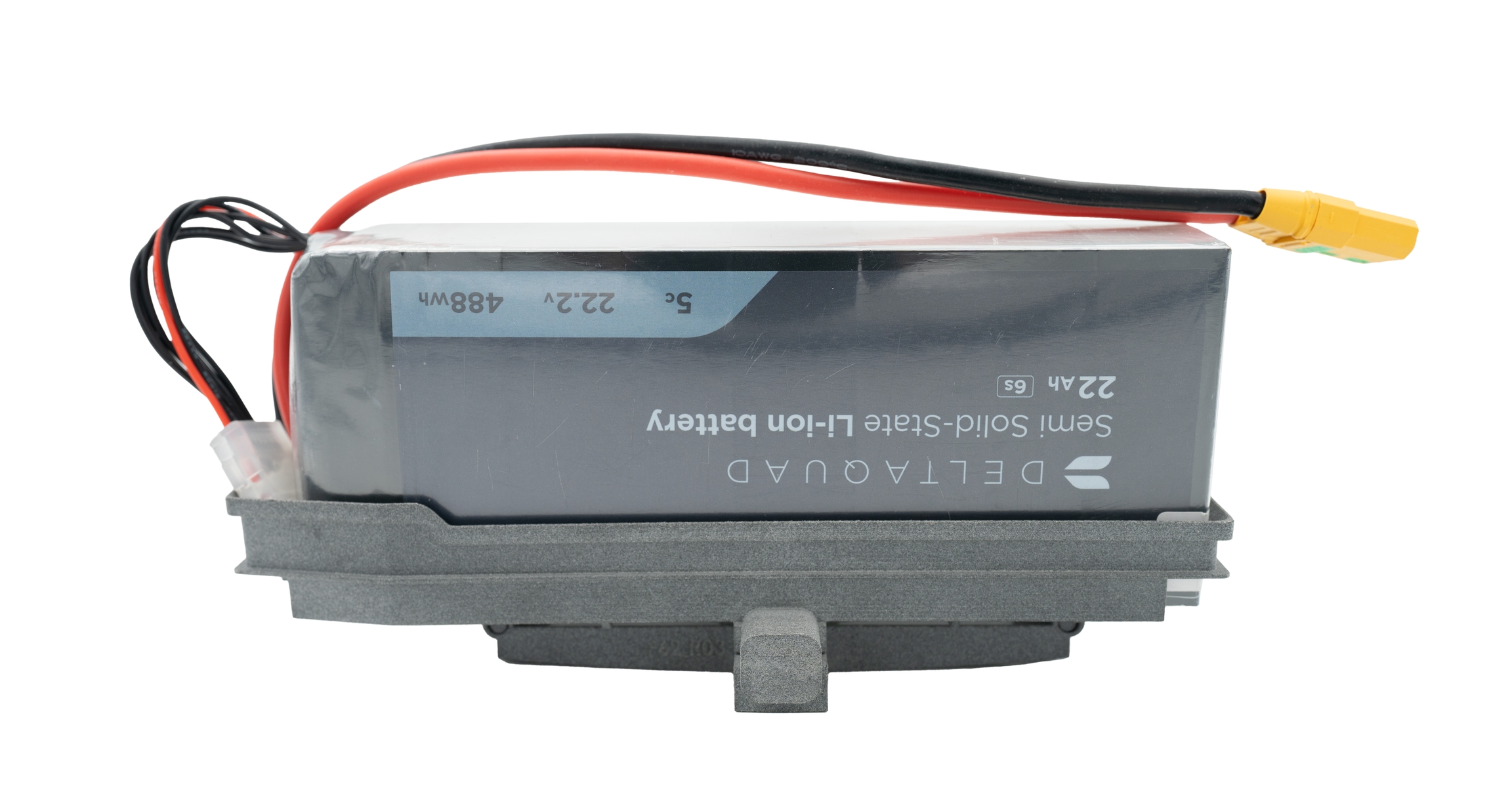

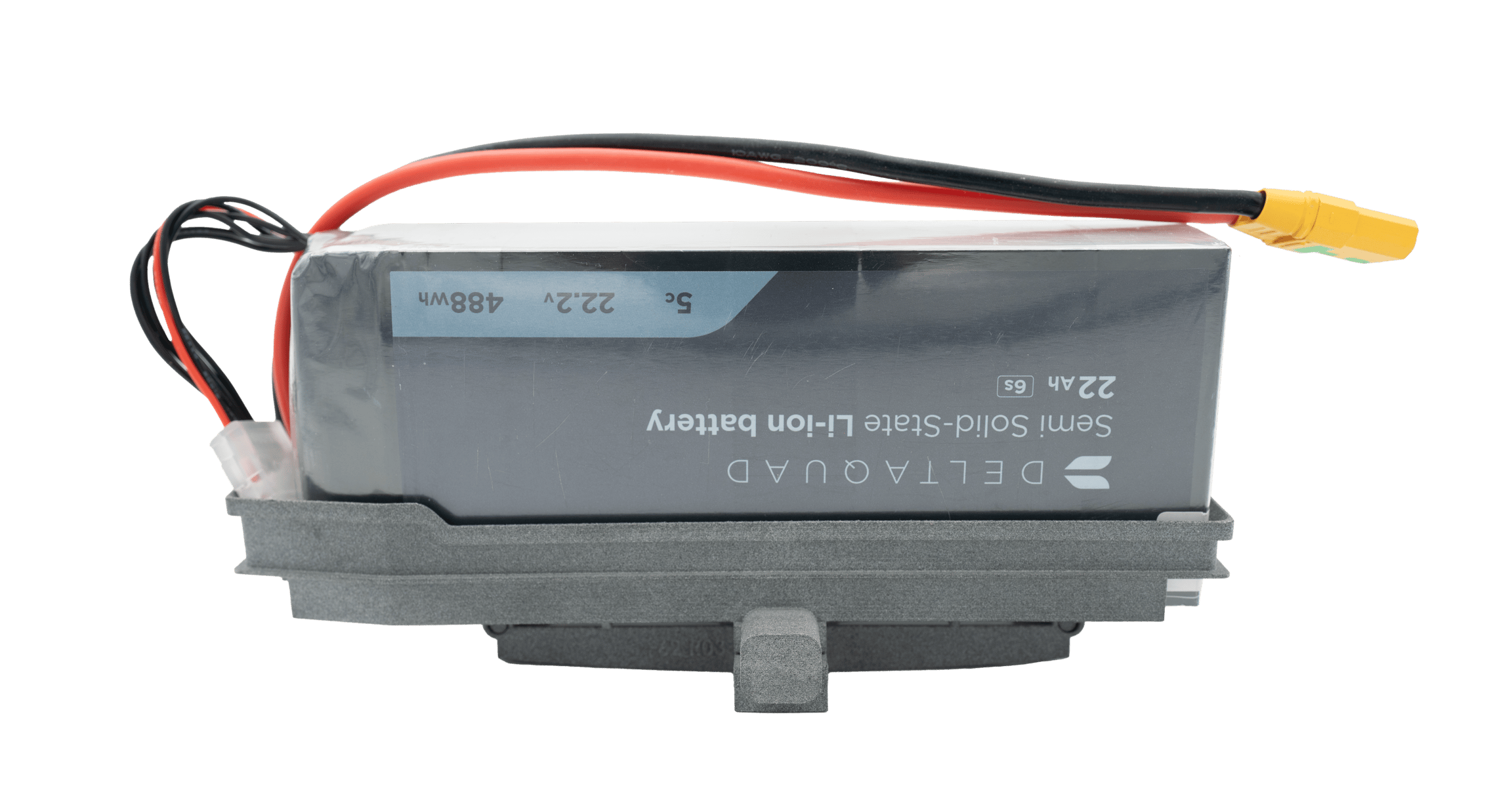

The thicker power cables must exit the bottom of the battery and lead over the top of the battery toward the XT90 socket of the DeltaQuad Evo.

<figure><img src="/files/FfsMnUg8mWUYhwYReJcR" alt="" width="563"><figcaption></figcaption></figure>

{% hint style="info" %}
The battery tray will move forward or backward to correct for the center of gravity depending on which payload is installed.&#x20;
{% endhint %}

{% hint style="warning" %}

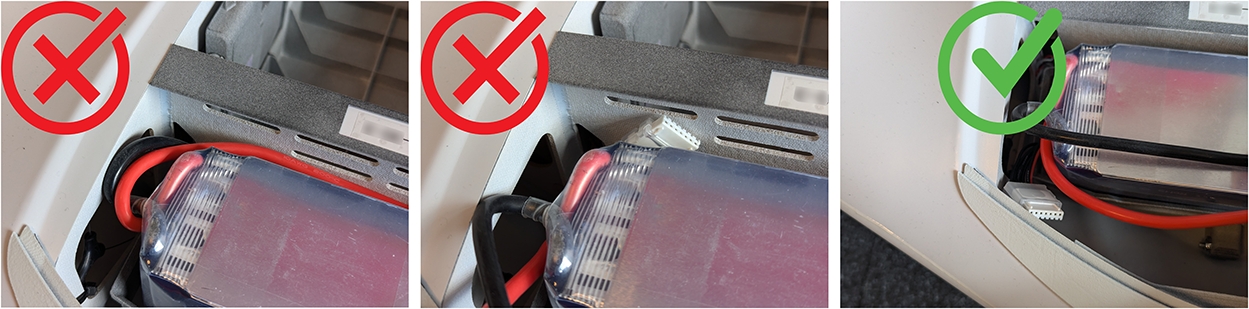

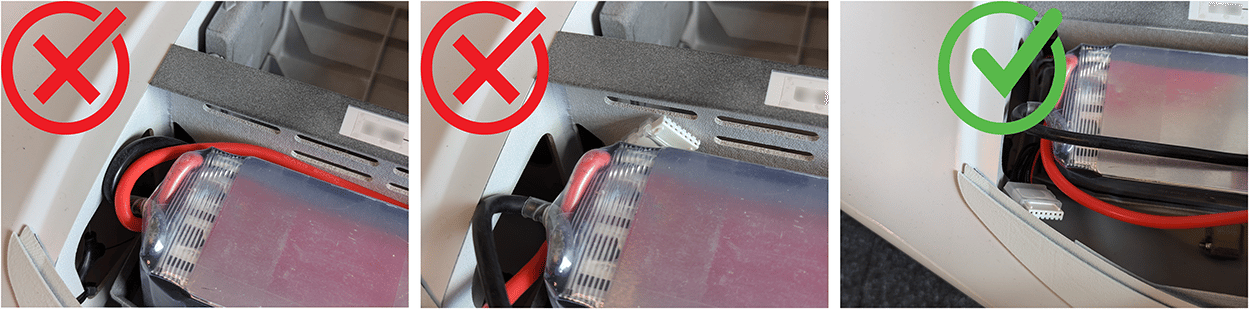

Always make sure that **no battery cable** is located between the battery and the back wall of the battery bay.
{% endhint %}

<figure><img src="/files/5icd7hpjtnsTRw4CzHDa" alt=""><figcaption></figcaption></figure>


---
