# Downloading log files via the GCS

This section explains how to download log files using the Ground Control Station (GCS).

* Power on the DeltaQuad Evo
* Assemble and turn on the GCS
* Wait until the connection between the vehicle and the GCS is established

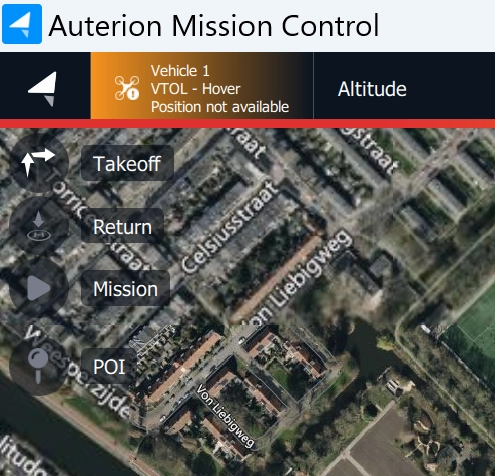

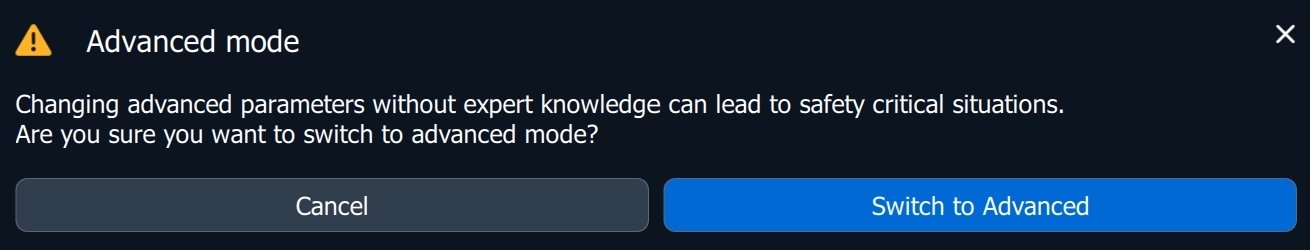

1. Open Auterion Mission Control (AMC) and switch to **Advanced Mode** by clicking the Auterion Menu icon in the upper left corner of the screen five times.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/SUioG1cFu5SEOFaSwFR4/AMC%20Menu.webp" alt="" width="248"><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/mpQCYUlsDjKBirabahrn/AMC%20Advanced%20Mode.webp" alt="" width="563"><figcaption></figcaption></figure>

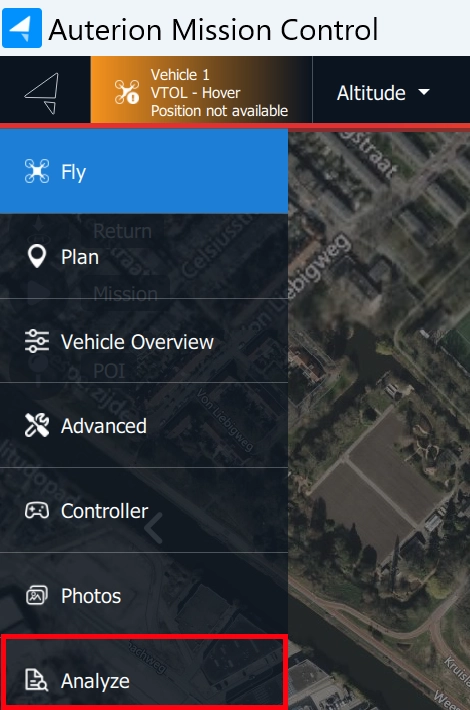

2. Click the Auterion Menu icon and select the **Analyze** tool.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/1gAtzipRVhsCyACZCe8i/Analyze%20tab%20b.webp" alt="" width="235"><figcaption></figcaption></figure>

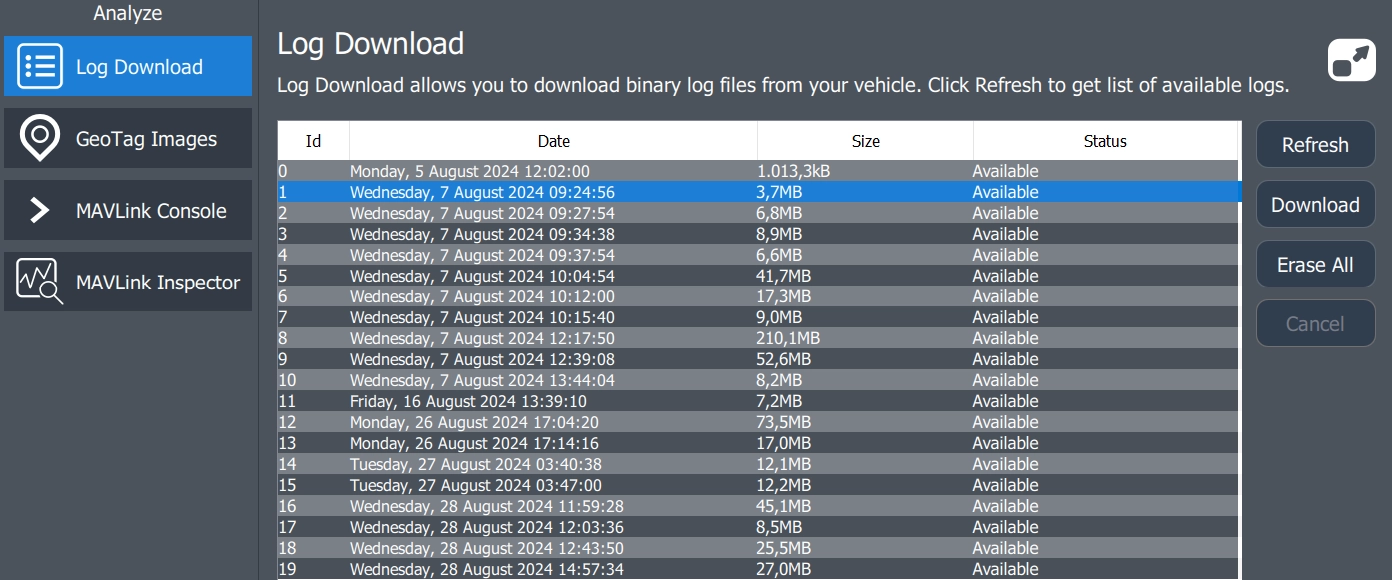

3. Under the first tab, **Log Download**,  you can download and erase log files from the vehicle. If no log files are available, click on **Refresh**. Select a log file or a batch of log files, you wish to download and click on **Download**.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/ARAqCWX3F6MavRmCEoEU/AMC%20log%202.webp" alt=""><figcaption></figcaption></figure>

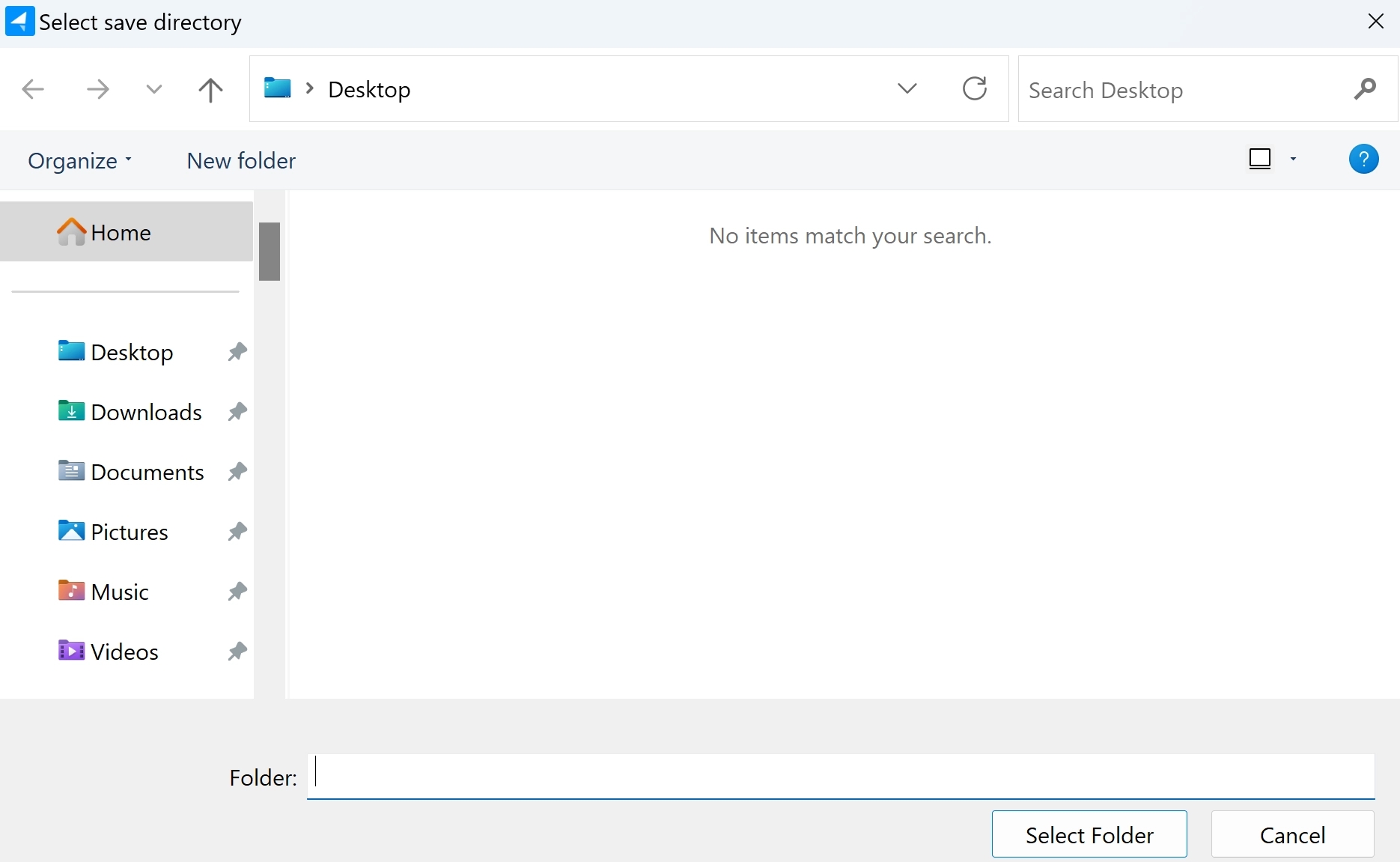

4. A window will open prompting you to select a folder on your computer to store the log file. Choose a location and click **Select Folder**.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/M77EVBRBBUN8NJRQ1SJJ/AMC%20dl%20location.webp" alt="" width="563"><figcaption></figcaption></figure>

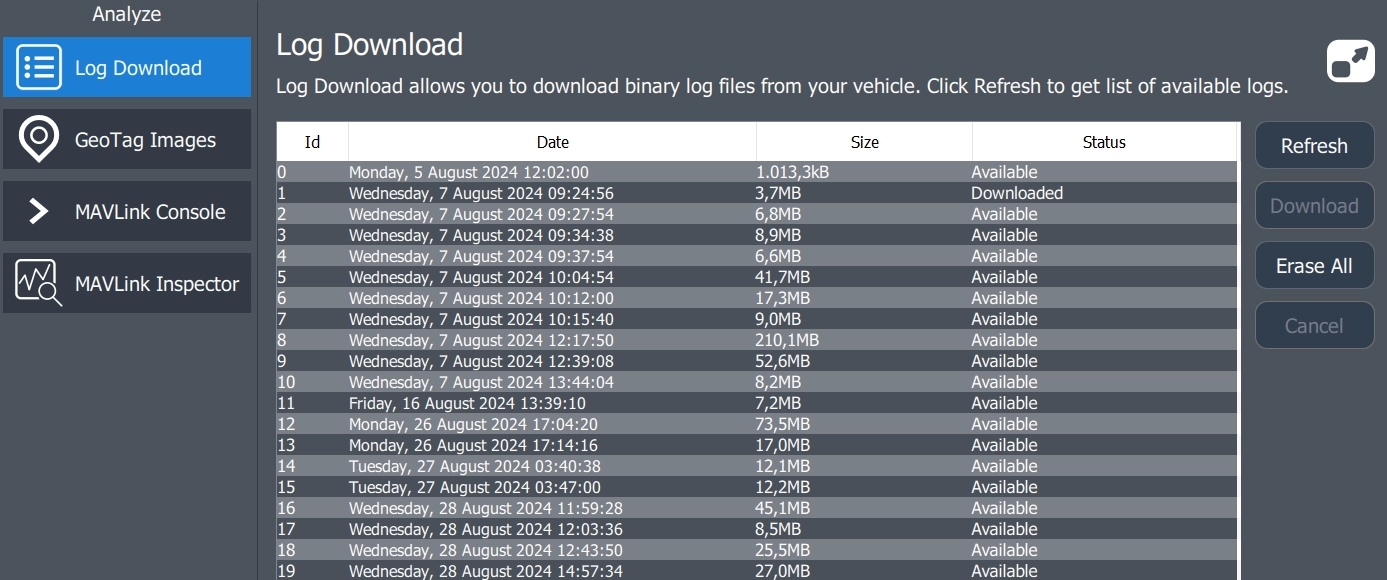

5. AMC will indicate a successful download by displaying **Downloaded** under **Status**.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/JK2lbmYThSBovJ6Pp2x5/AMC%20dl%20done%20b.webp" alt=""><figcaption></figcaption></figure>

You can find the log file in the storage location of your choice. For a log analysis please share the log file with the DeltaQuad support team **<support@deltaquad.com>**.


---
