# Diagnostics report

The following section describes how to compile and download the diagnostics report.

In some cases, it might be necessary to provide a diagnostic report of your DeltaQuad Evo for further analysis of the flight performance and overall functionality.

For this, you will need:

* A USB-A to USB-C cable
* A USB-A to USB-C adapter (provided with the DeltaQuad Evo)
* The DeltaQuad Evo with a flight battery
* A laptop

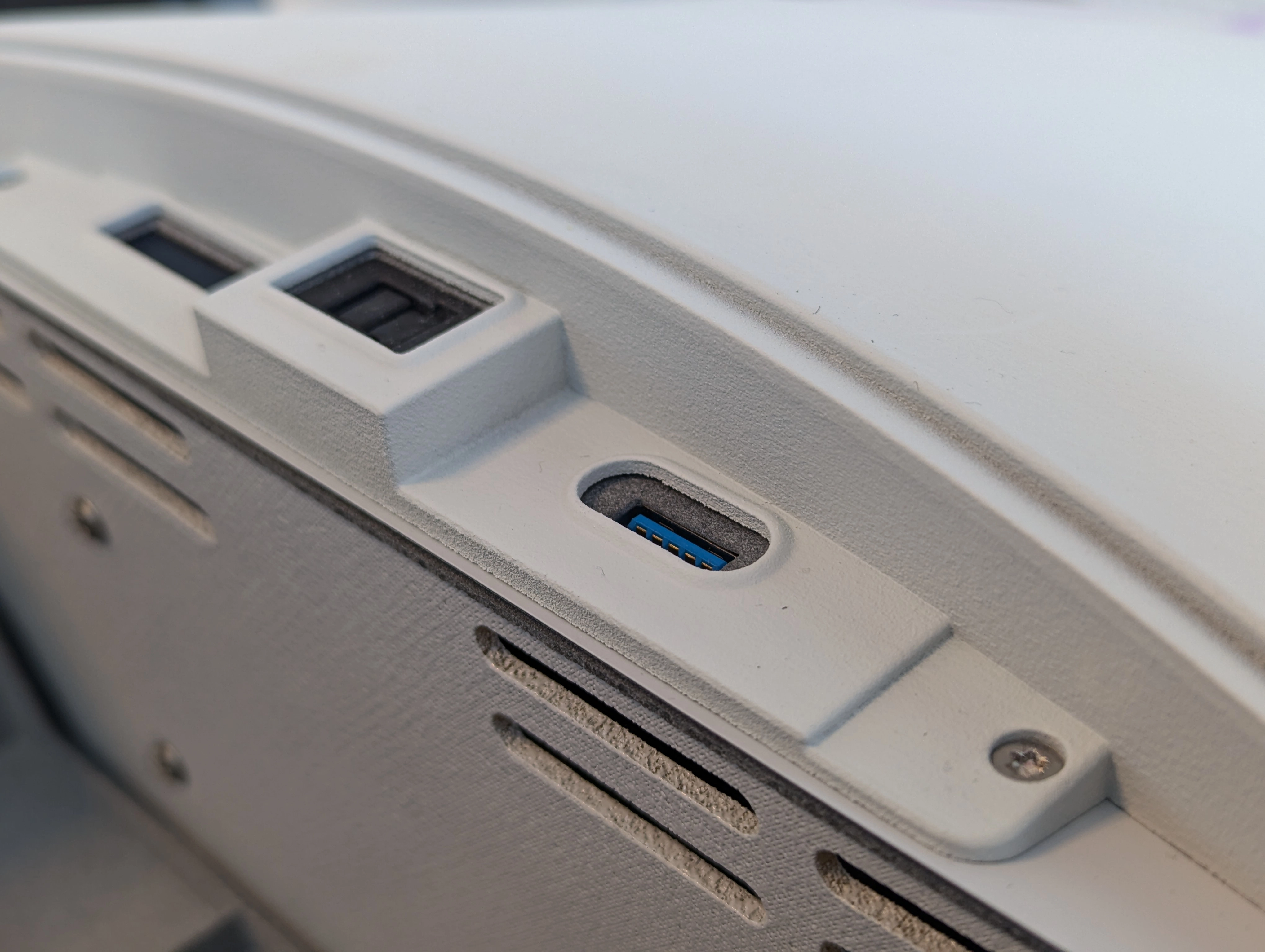

1. Remove the hatch of the DeltaQuad Evo. Above the avionics bay, where the hatch's closing mechanism and the LCD are located, you will find a USB socket.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/HjY4U5mq1ycbxzWShD9h/image.png" alt=""><figcaption></figcaption></figure>

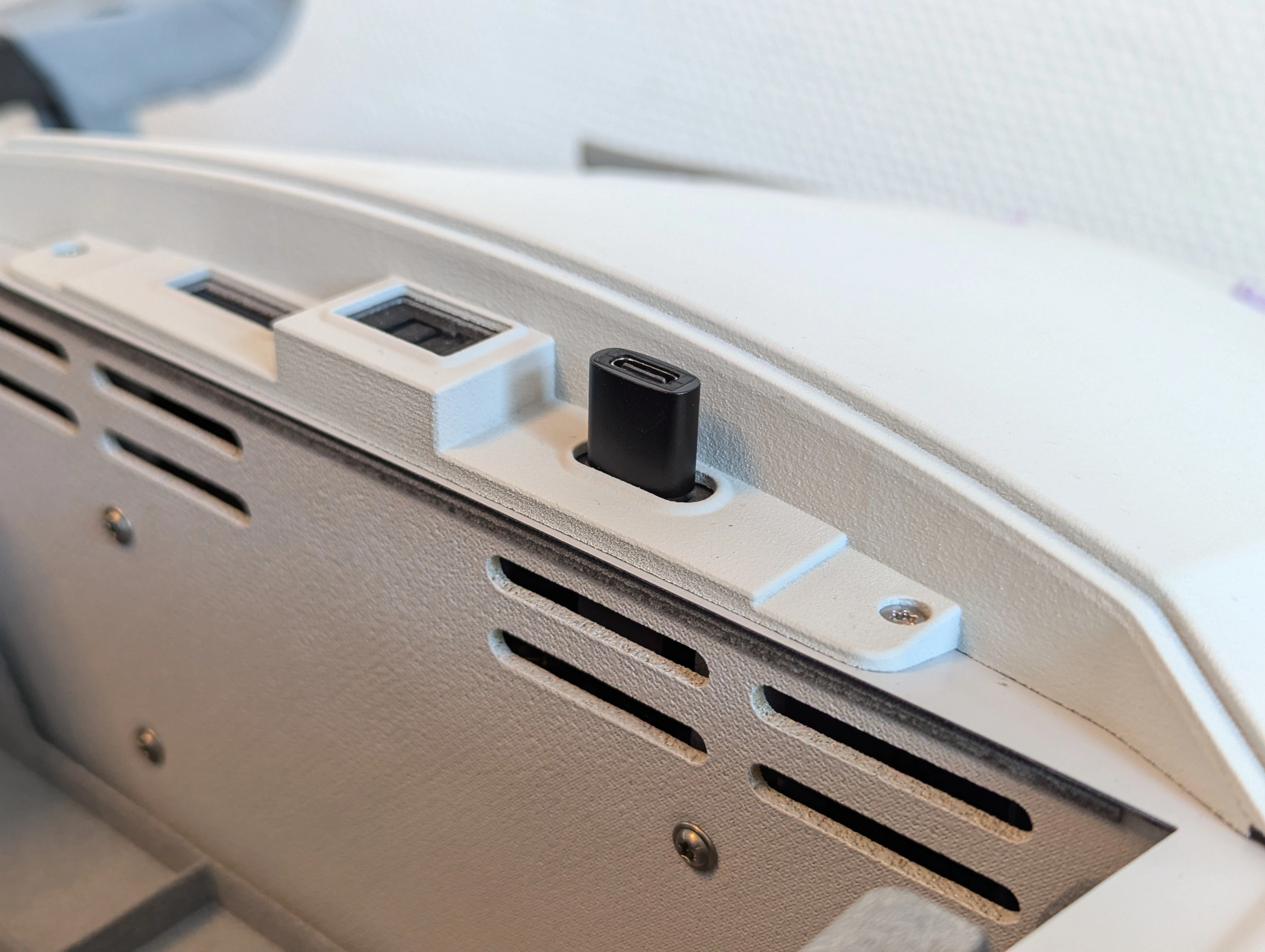

2. Install the USB-A to USB-C adapter, which is included in your vehicle's accessories. In some cases, it may already be plugged into the USB socket.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/03NGZ2aA5LoX2tboK2dQ/image.png" alt=""><figcaption></figcaption></figure>

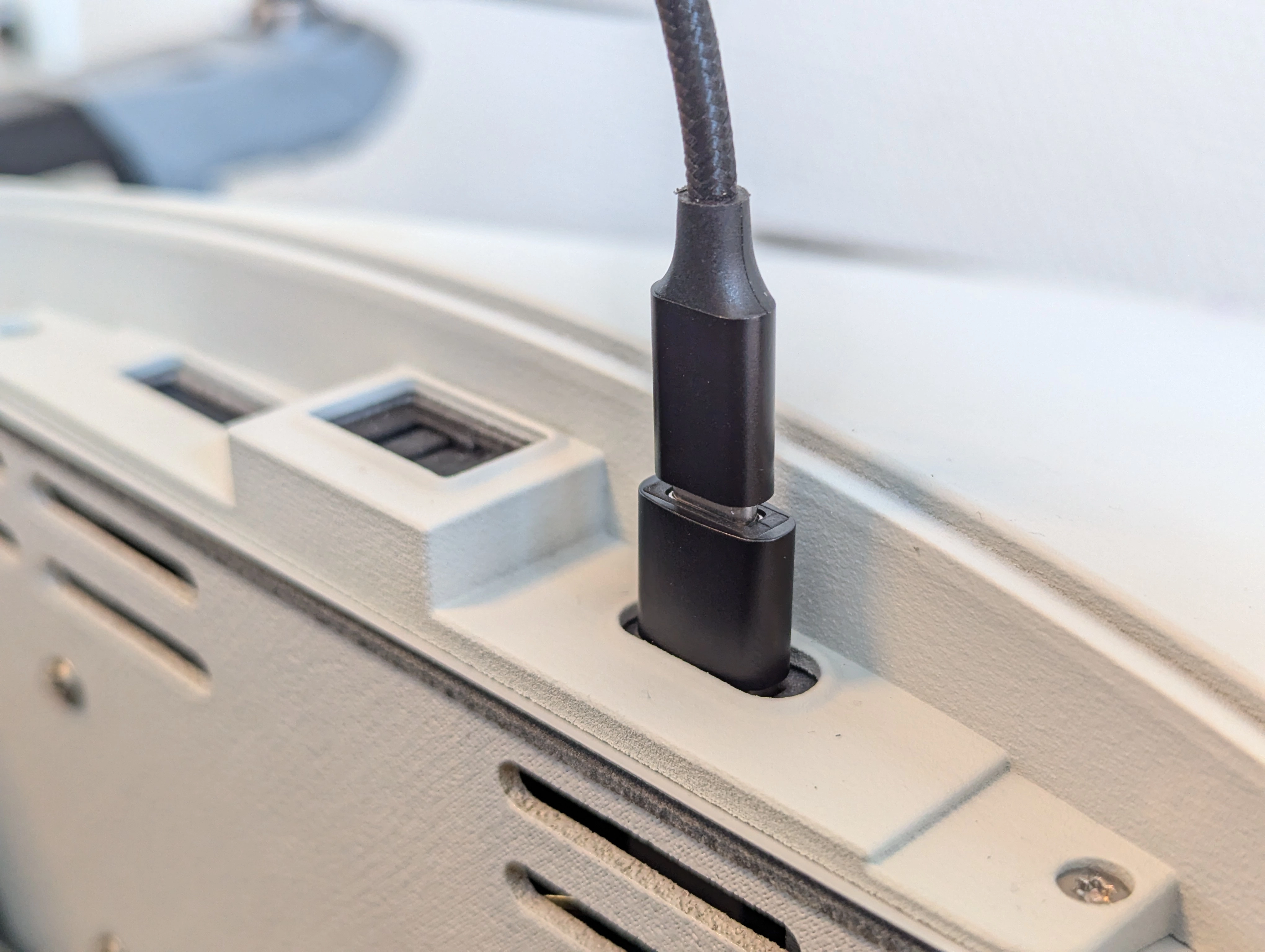

3. Connect the USB cable to the USB-C connector.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/YOqkif04turKkhDVxLkI/image.png" alt=""><figcaption></figcaption></figure>

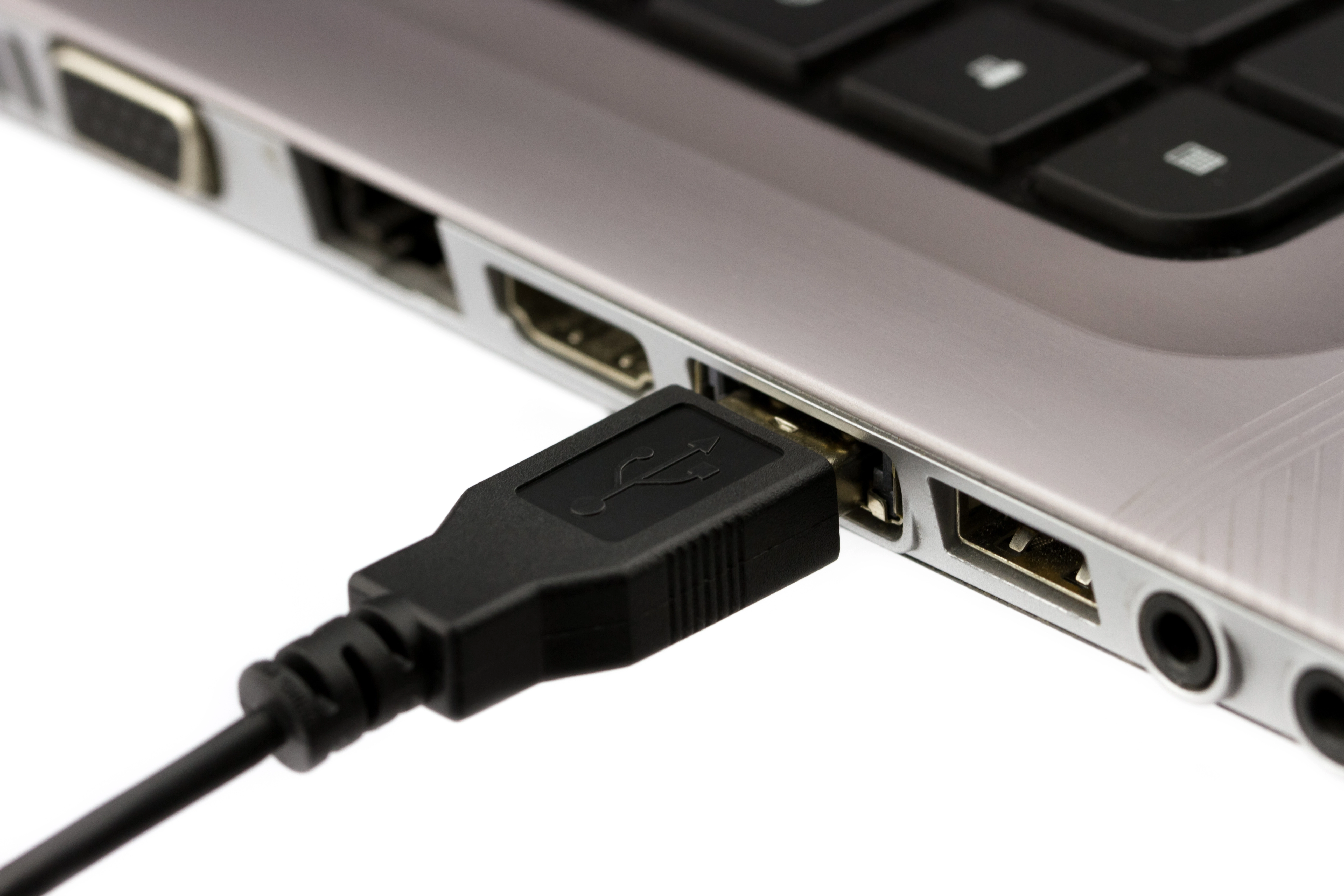

4. Connect the other end of the cable to your laptop.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/lZt51zq8O9neMKWlIQxz/image.png" alt=""><figcaption></figcaption></figure>

* Power on the laptop.
* Power on the DeltaQuad Evo.

{% hint style="warning" %}
Power on the DeltaQuad Evo only after connecting the USB cable to both, the vehicle and the laptop.
{% endhint %}

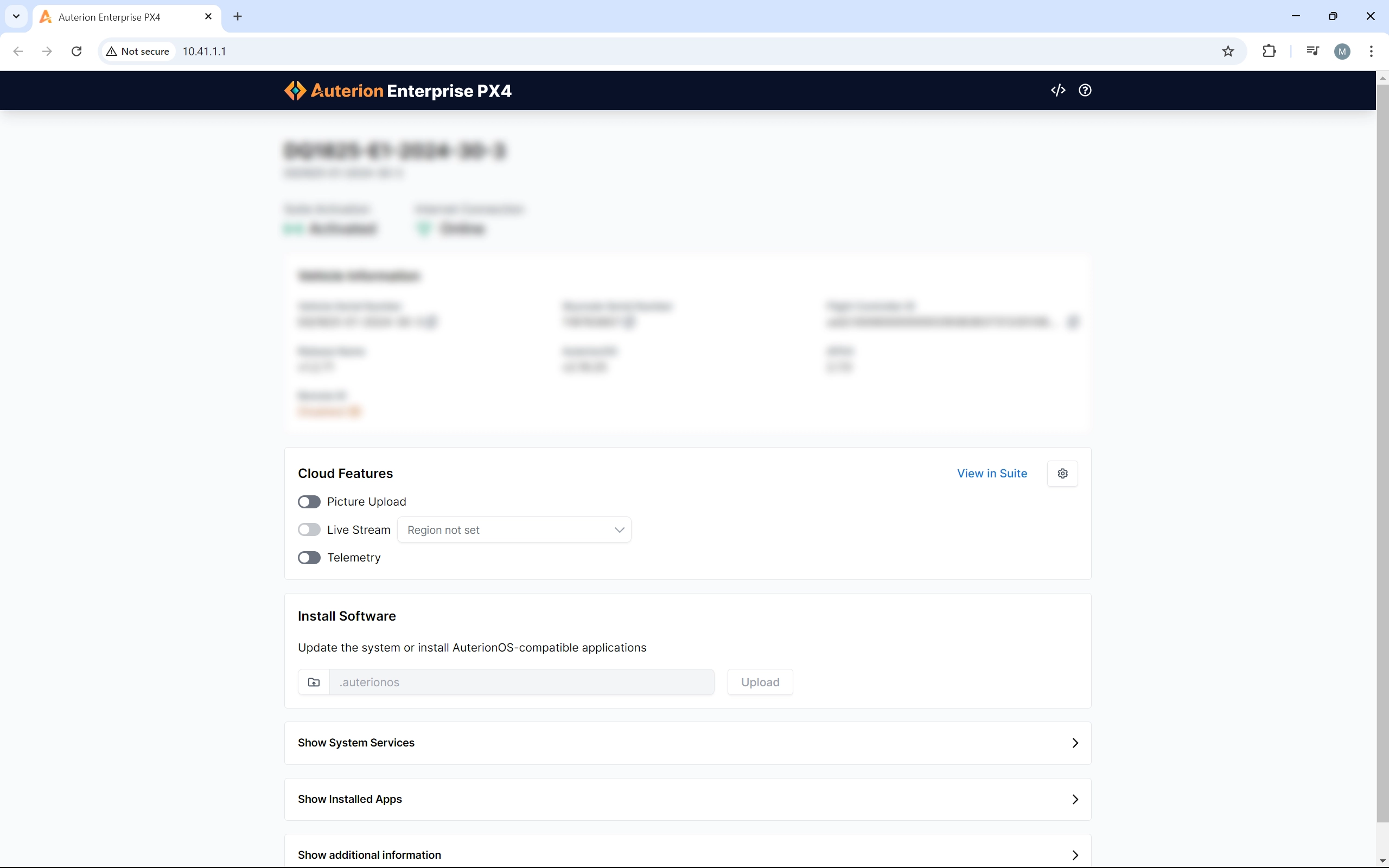

5. On the laptop open a browser and type in the following address: **<http://10.41.1.1>**

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/q26Fy9291EOJMqHJJ2xC/1.webp" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
If your computer can't connect to the vehicle after following the steps above, please try a different USB cable.
{% endhint %}

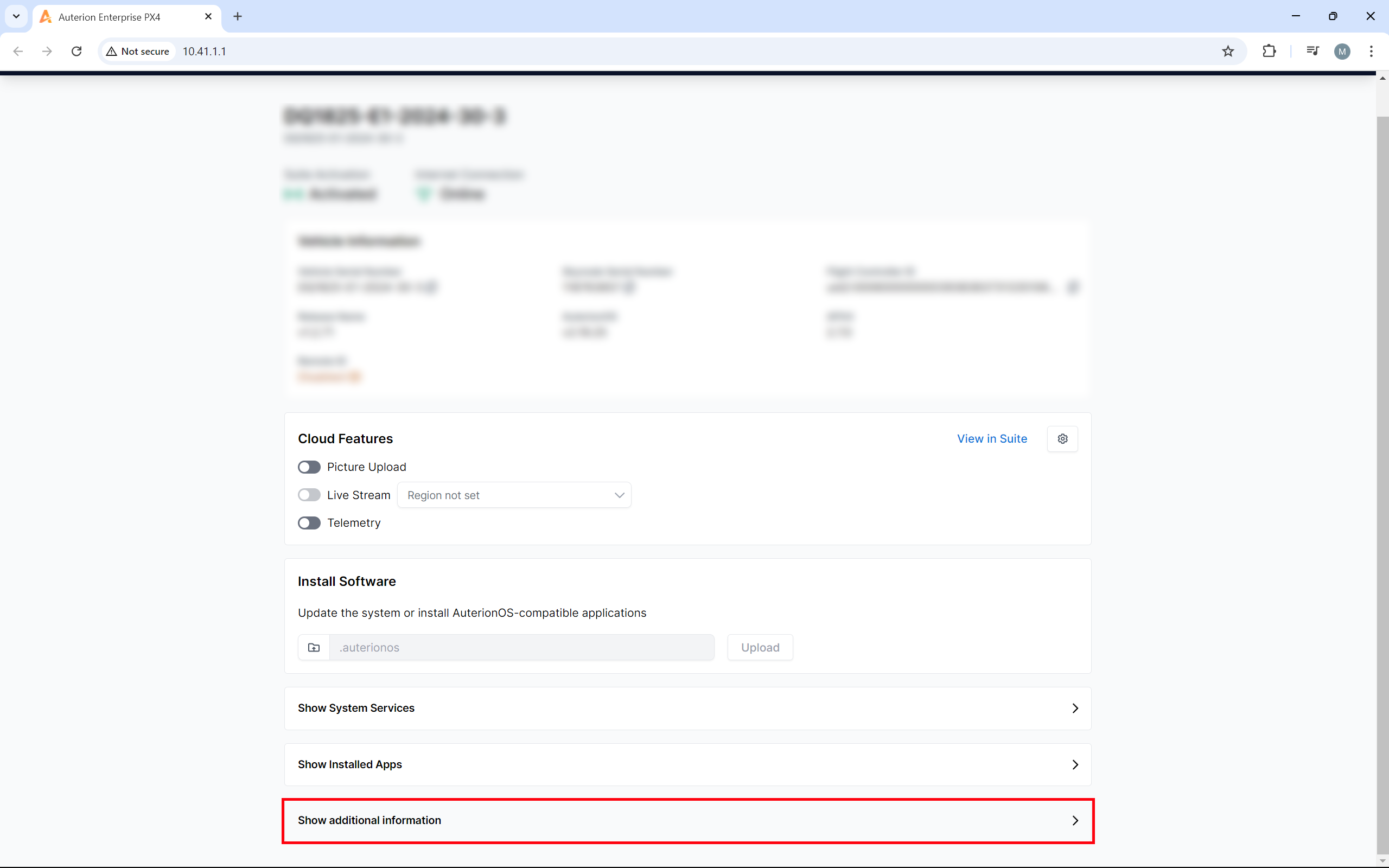

6. Scroll to the bottom of the page and click on **Show additional information**.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/wcAtlCamyvoyHdp10cUs/2a.png" alt=""><figcaption></figcaption></figure>

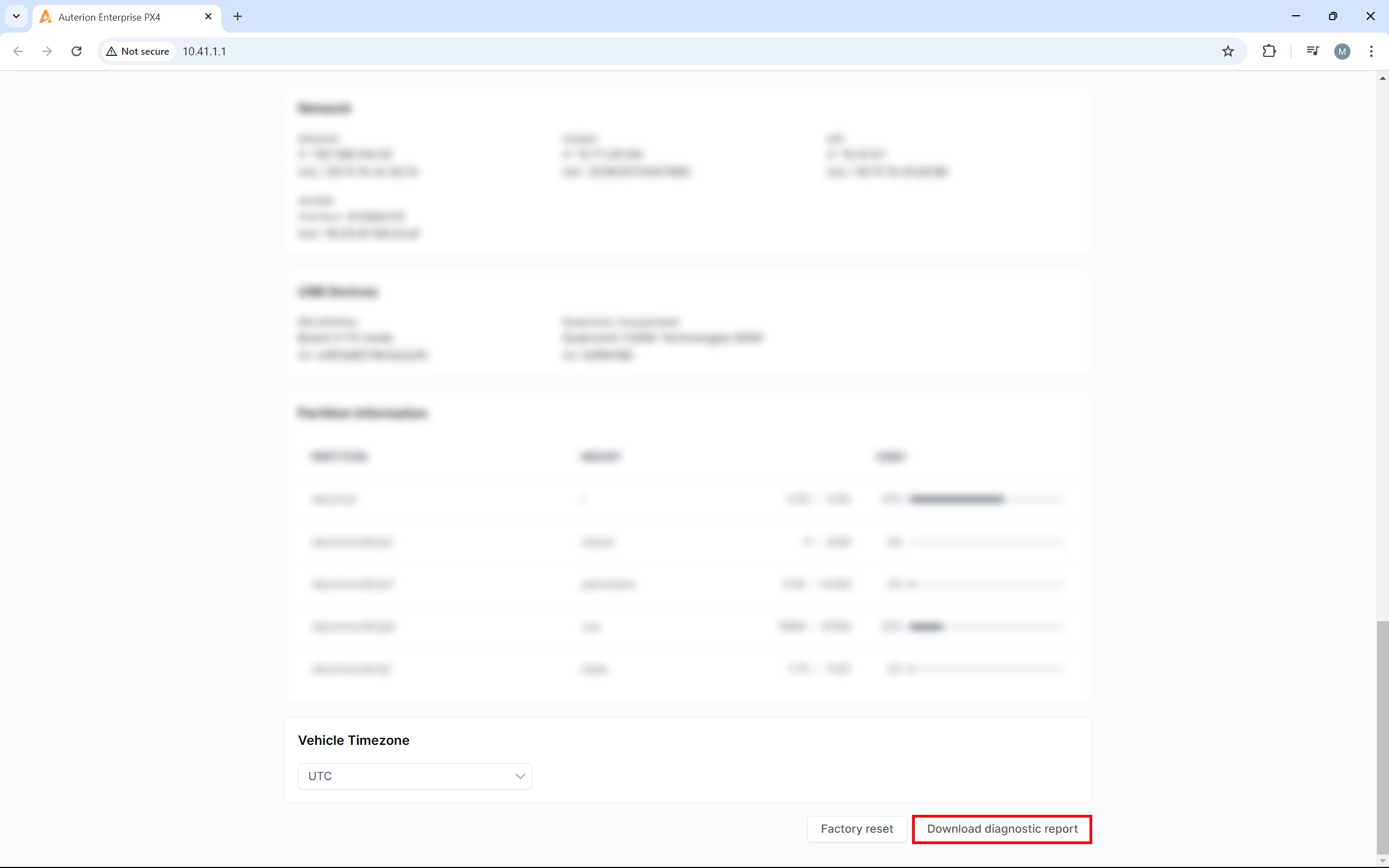

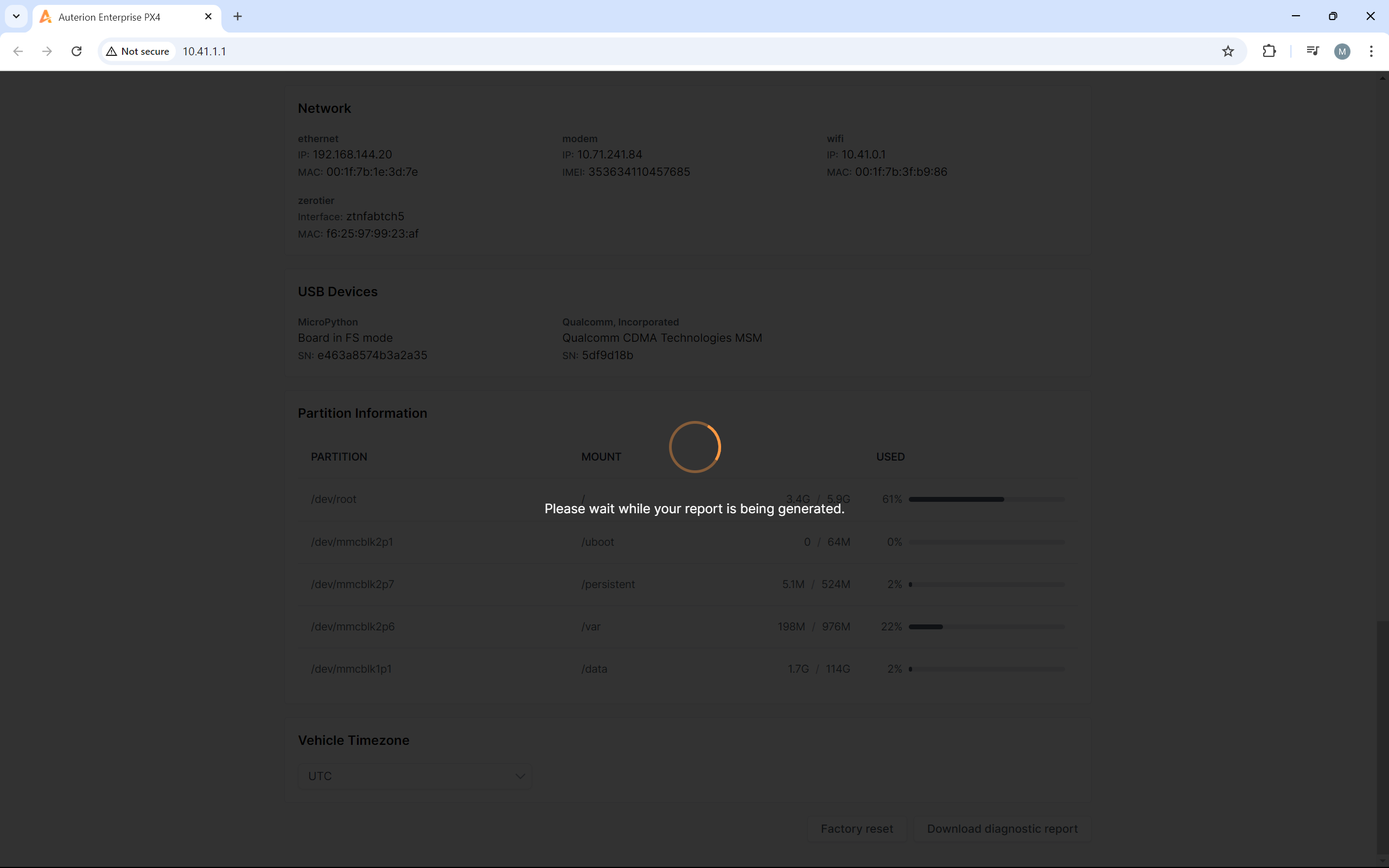

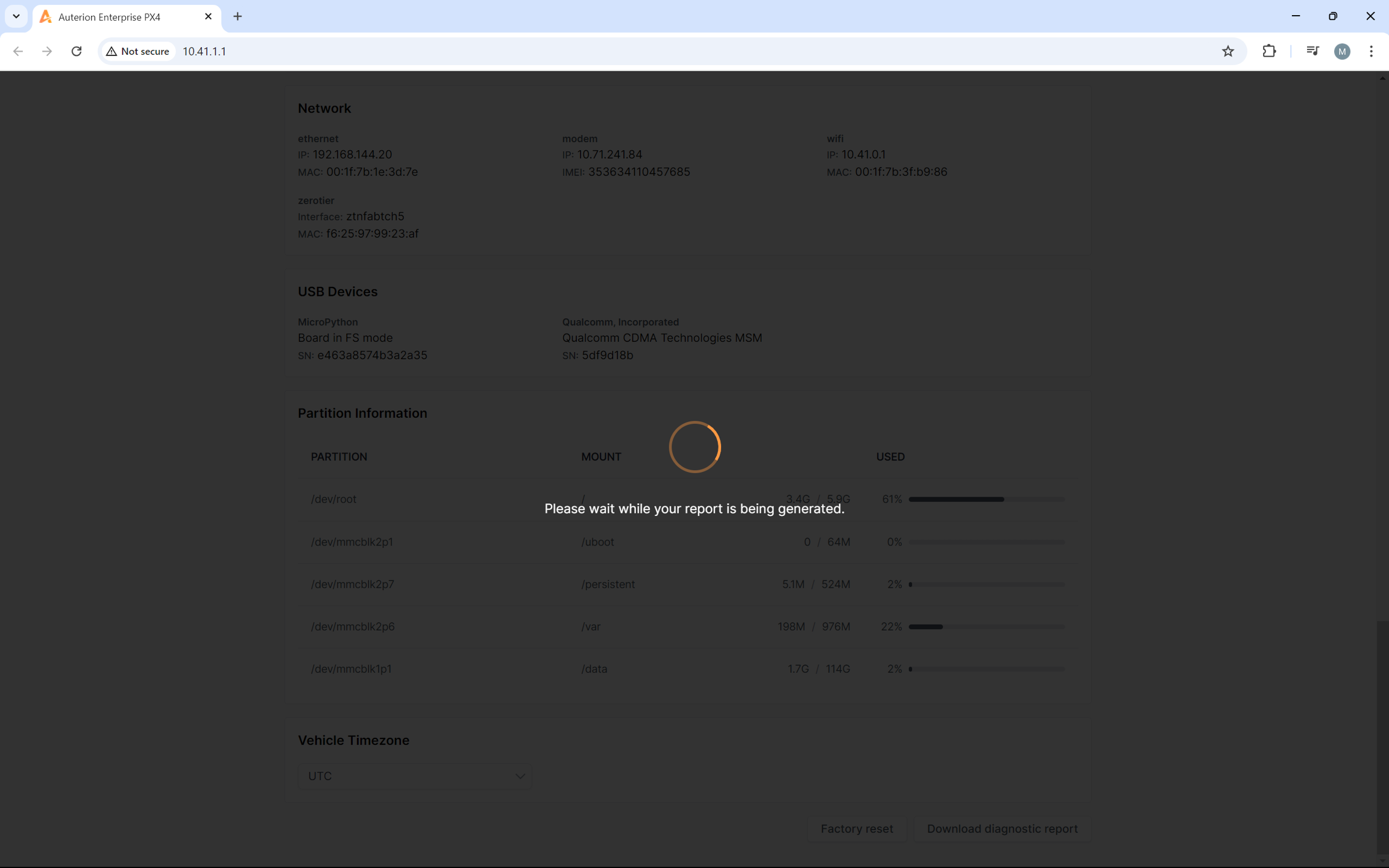

7. In the right corner at the bottom of the page click on **Download diagnostic report**. The report will be generated.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/C9niYz88jnEvJs9DAkOR/3a.webp" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/InHuRpdHHEyDb7RJetLU/4.png" alt=""><figcaption></figcaption></figure>

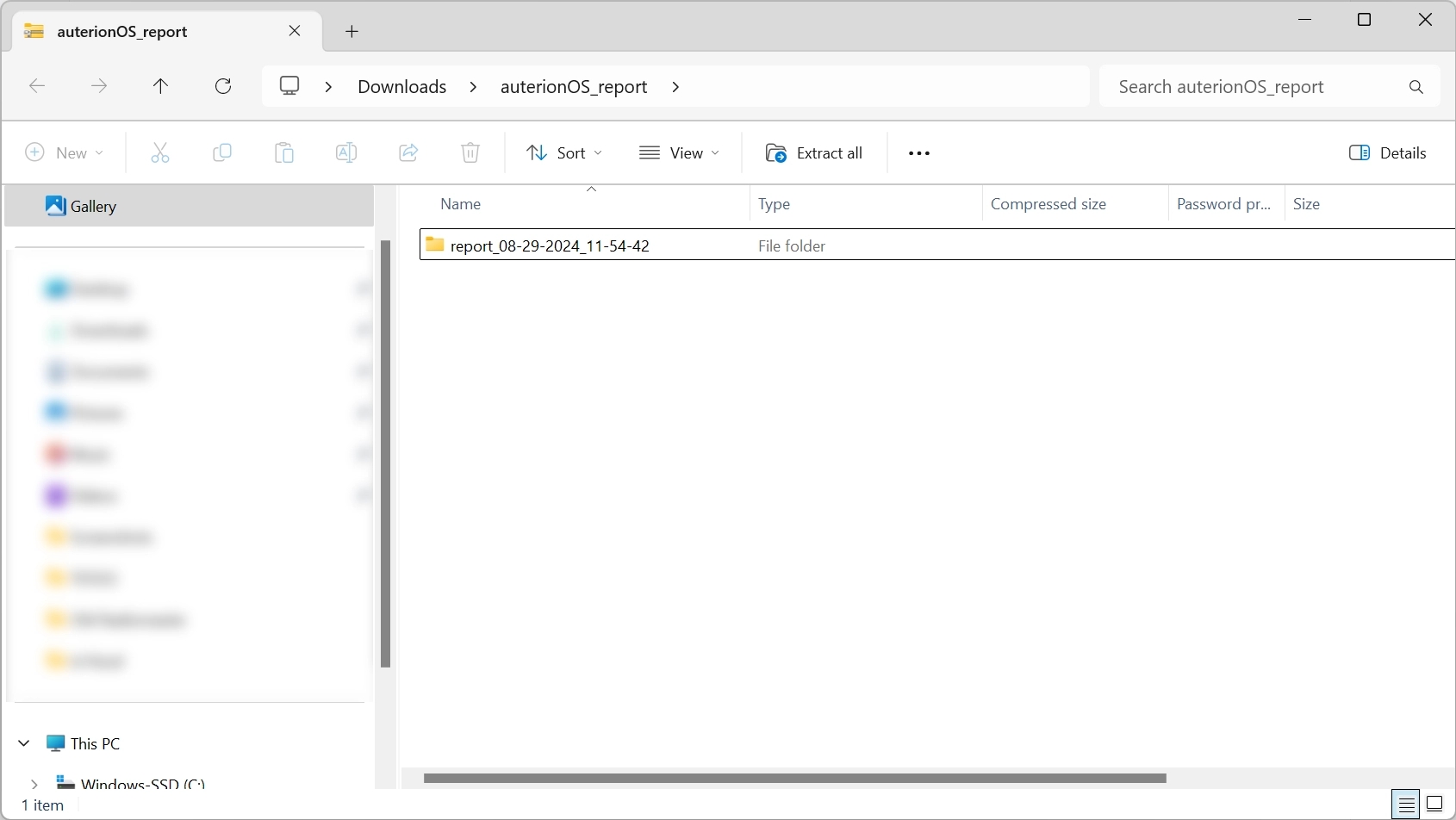

8. After the report has been generated a download will commence. You will find the diagnostics report in the download folder of your system.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/OdVXLkzWxRl6LvPYSSbH/5.webp" alt=""><figcaption></figcaption></figure>

Please share the diagnostics report with the DeltaQuad support team at **<support@deltaquad.com>**.


---
