# Wingtip Replacement

{% embed url="<https://youtu.be/IcuBMVlH55E>" %}

## Tools needed - Torx 10 (T10)

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/lsLLhOuCxU5jYIiE7nZj/Torx%20Screw%20&#x26;%20Icon_shape_DeltaQuad%20Evo_Operations%20Manual.png" alt="" width="375"><figcaption></figcaption></figure>

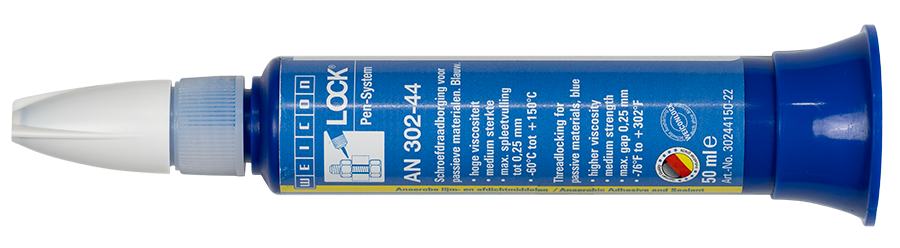

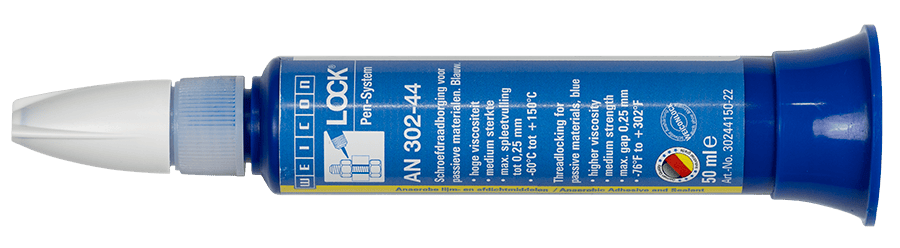

## Maintenance supplies needed - Threadlocker (medium strength)

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/9BEJng4LYmgO5cvVLJHH/Lock%20Tight_DeltaQuad%20Evo_Operations%20Manual_DSC09864.png" alt="" width="375"><figcaption></figcaption></figure>

## Preparation

1. Find a flat surface, such as a table, large enough to accommodate one of the DeltaQuad Evo's wings.
2. Take a wing of the DeltaQuad Evo out of the flight case.

{% hint style="info" %}
The wingtips are interchangeable and can be installed on either side.
{% endhint %}

## Changing a wingtip

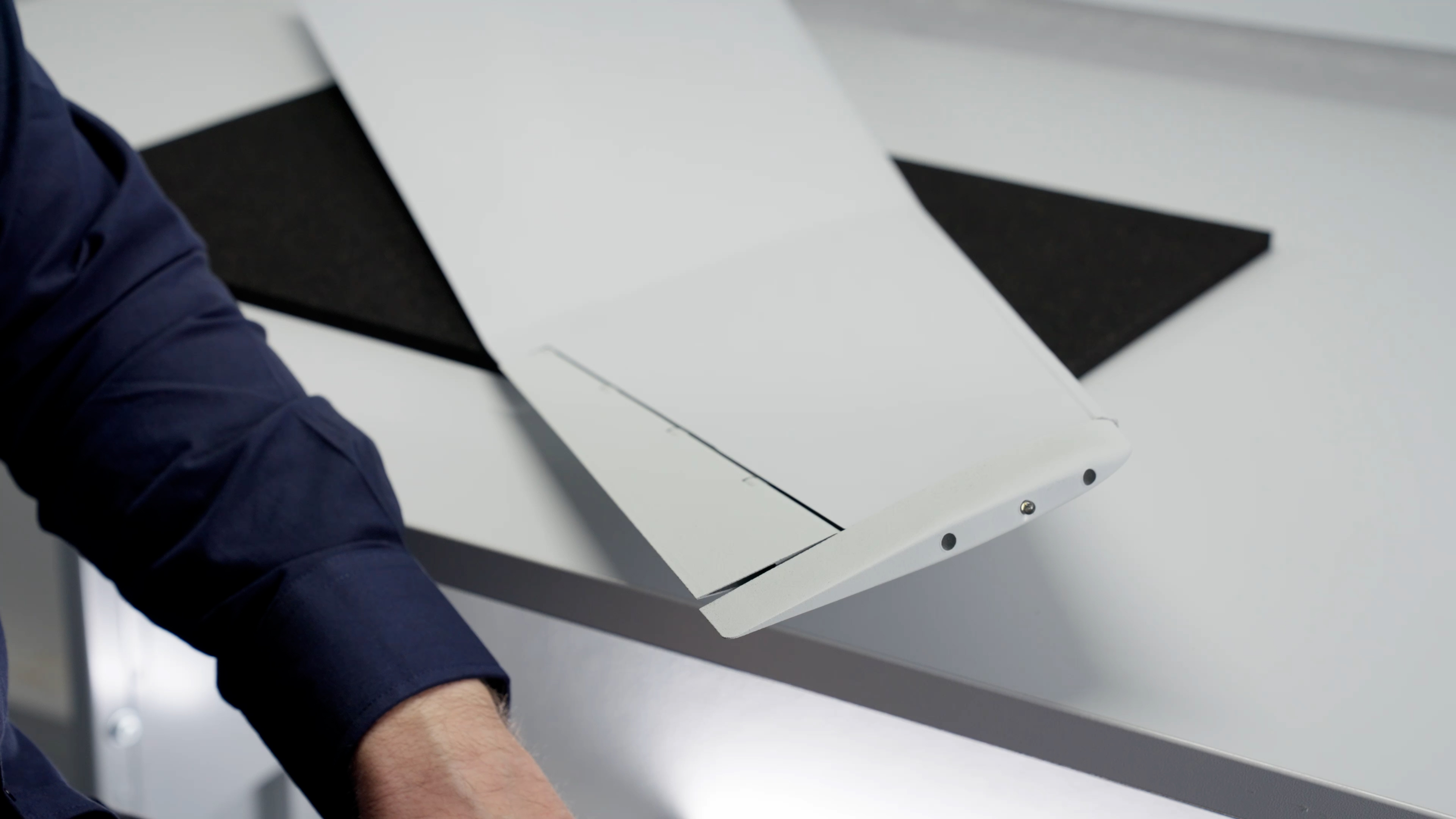

1. Position the wing on a table with the wingtip pointing upward to easily access the two screw holes.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/ROad70kuWt7R6MtEgLyC/image.png" alt=""><figcaption></figcaption></figure>

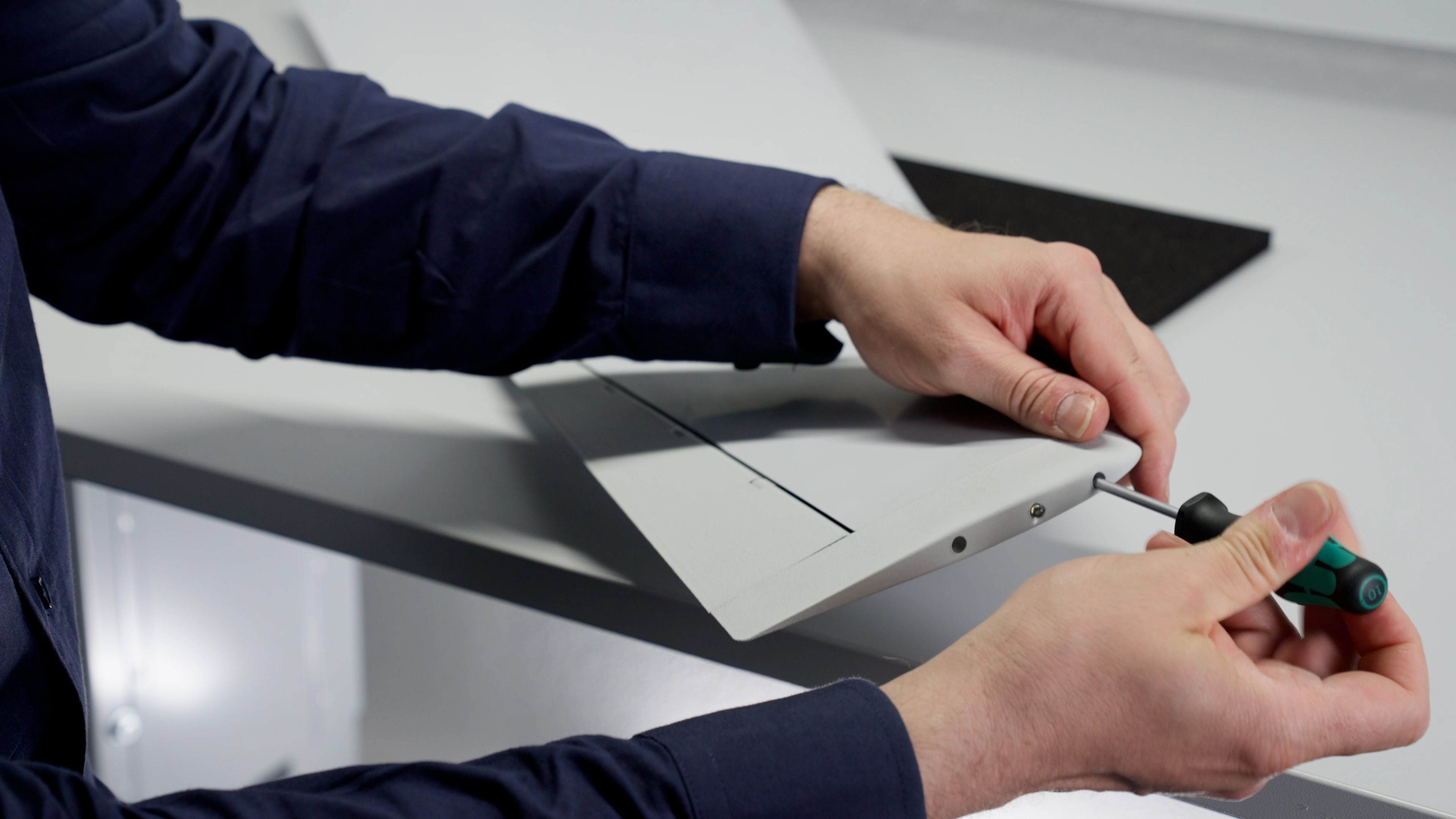

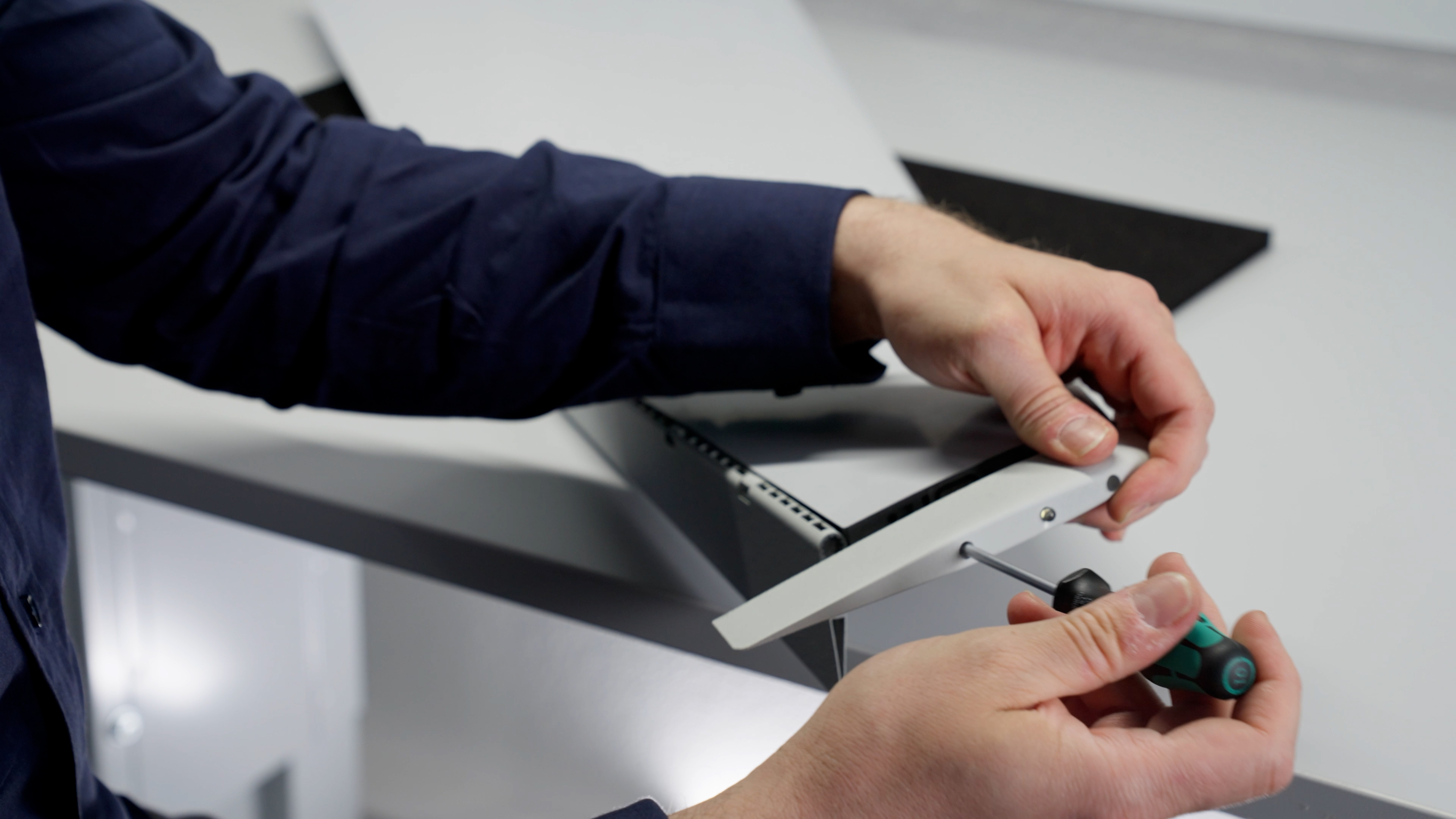

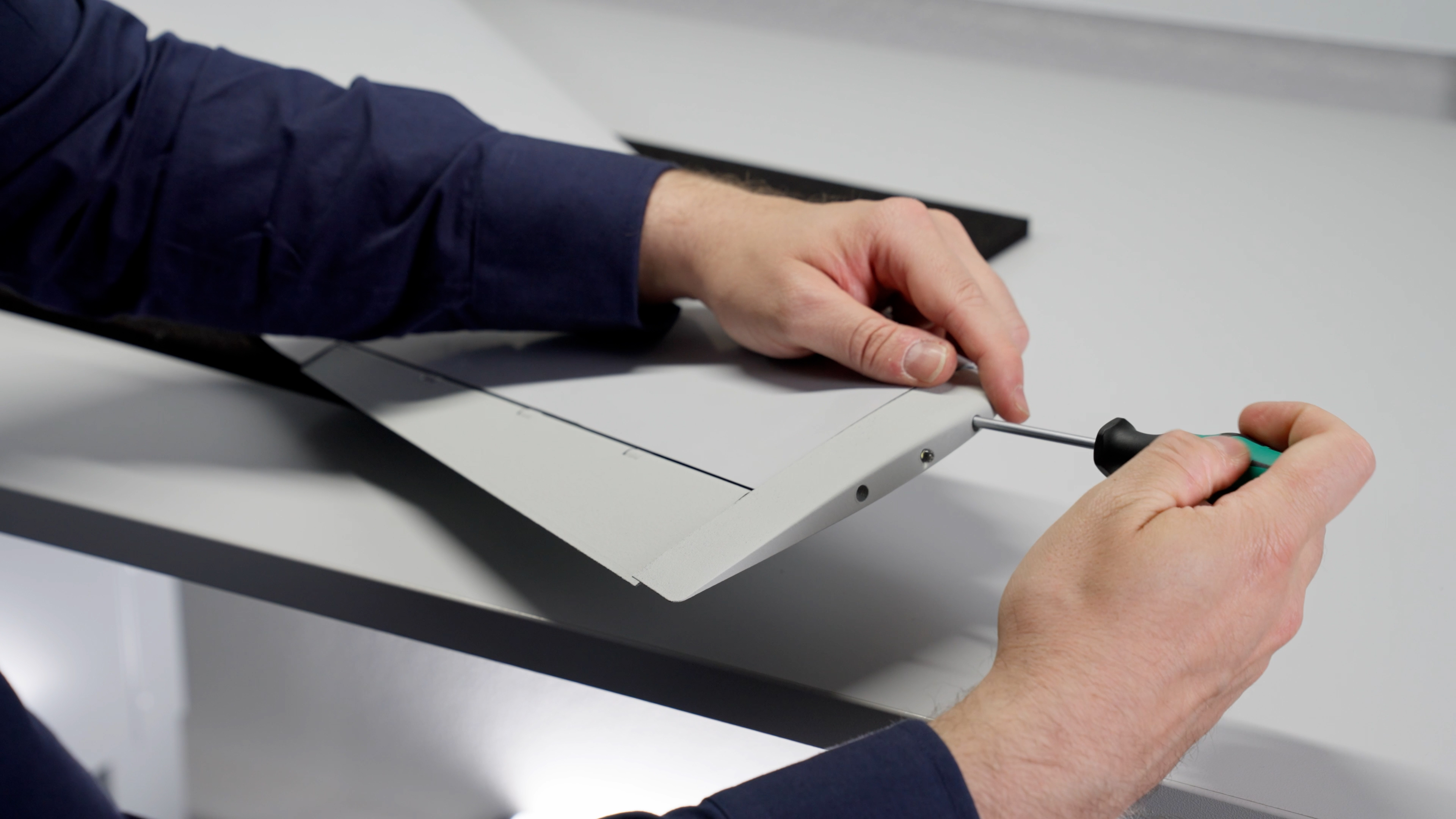

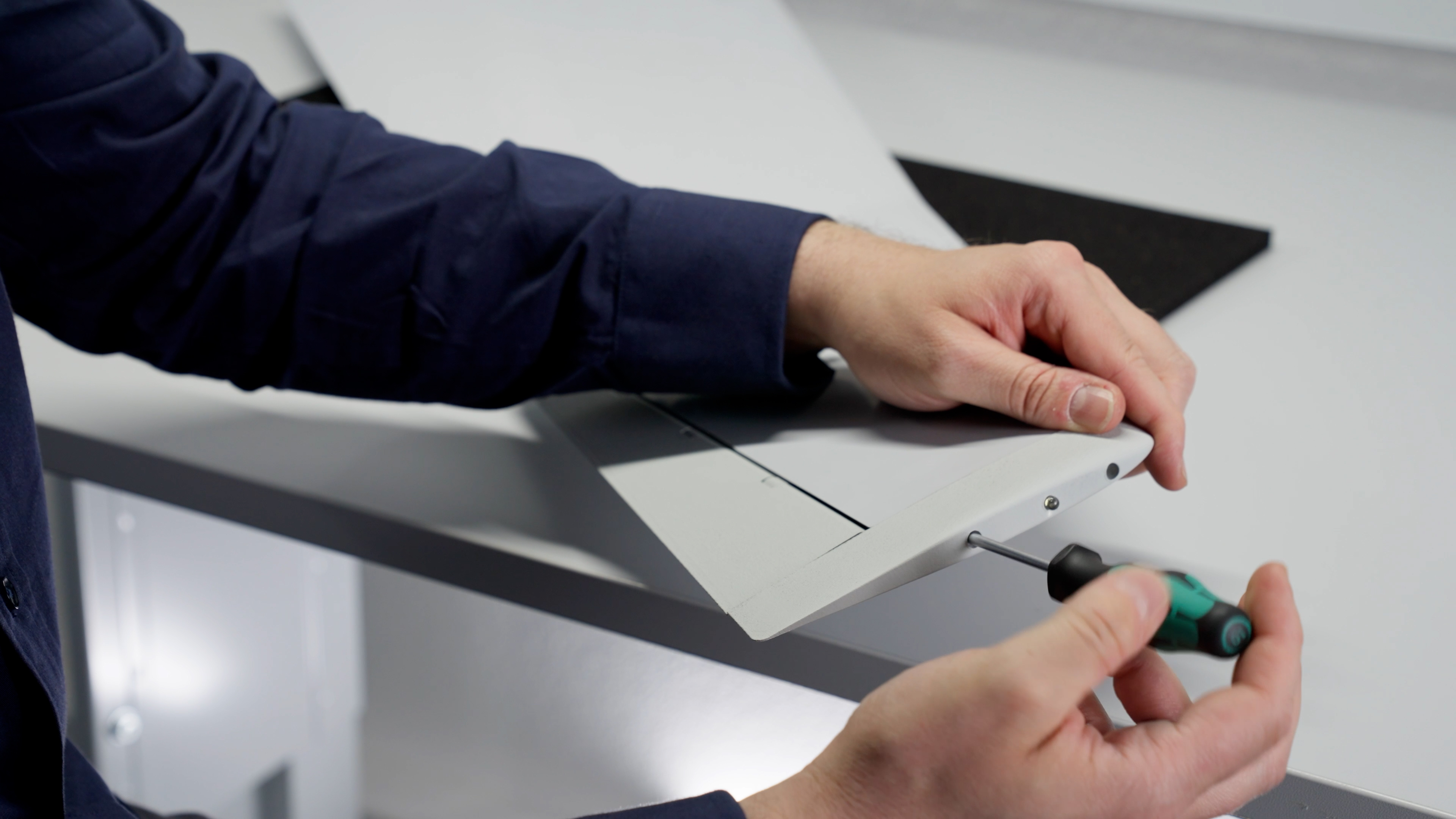

2. Use a Torx tool size 10 (T10) to remove the two screws from the wingtip.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/7e8TokvRhTezj3kcMSy1/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/lXPrIeVDvcBes7Sf9dW1/image.png" alt=""><figcaption></figcaption></figure>

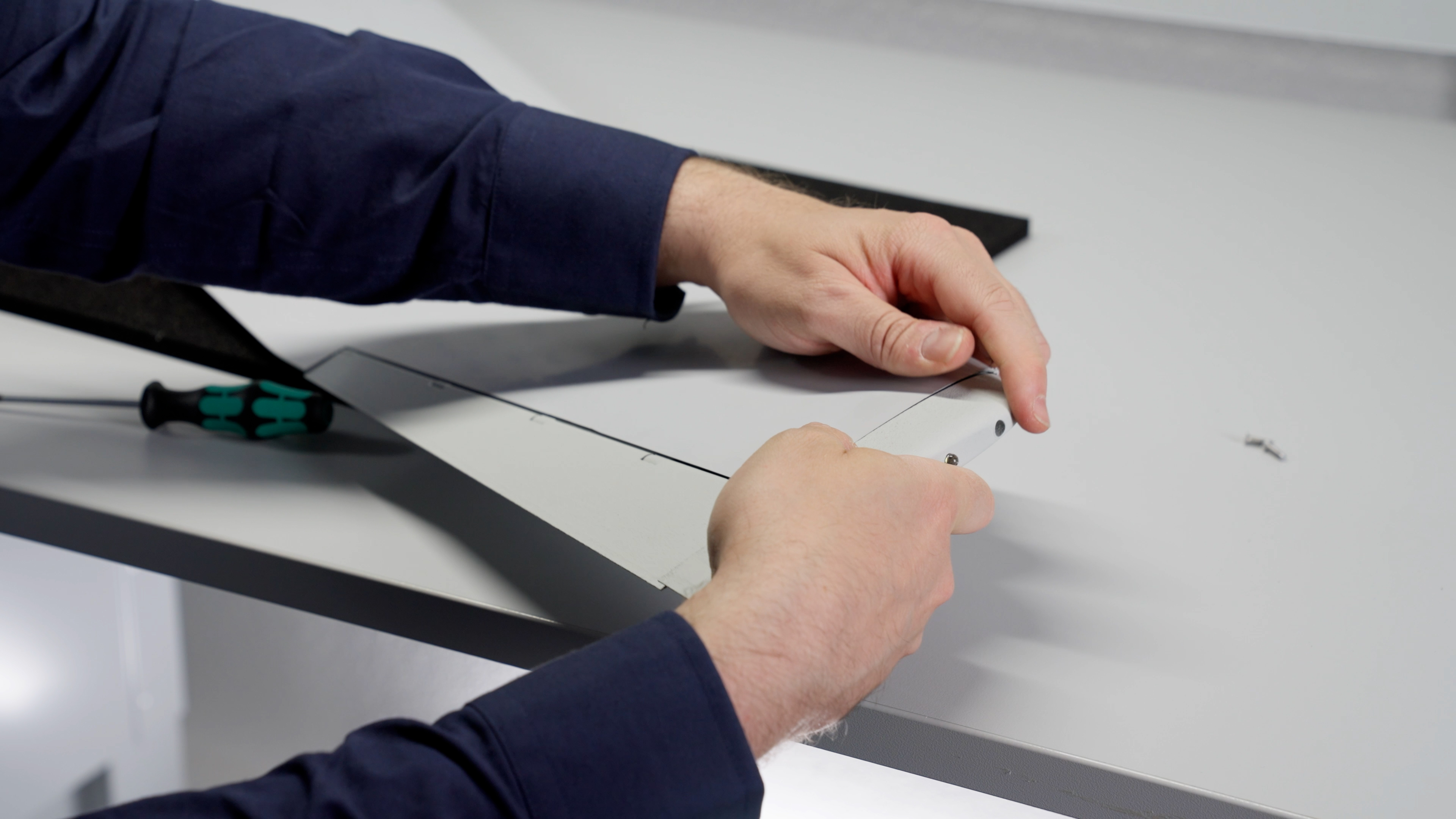

3. When removing the second screw, the wingtip should begin to loosen from its position where it was secured. Hold and remove the wingtip with the other hand.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/KOhdSADwPtxX1CjgZzbD/image.png" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
Before attaching the new wingtip make sure to use threadlocker on each tip of a screw.
{% endhint %}

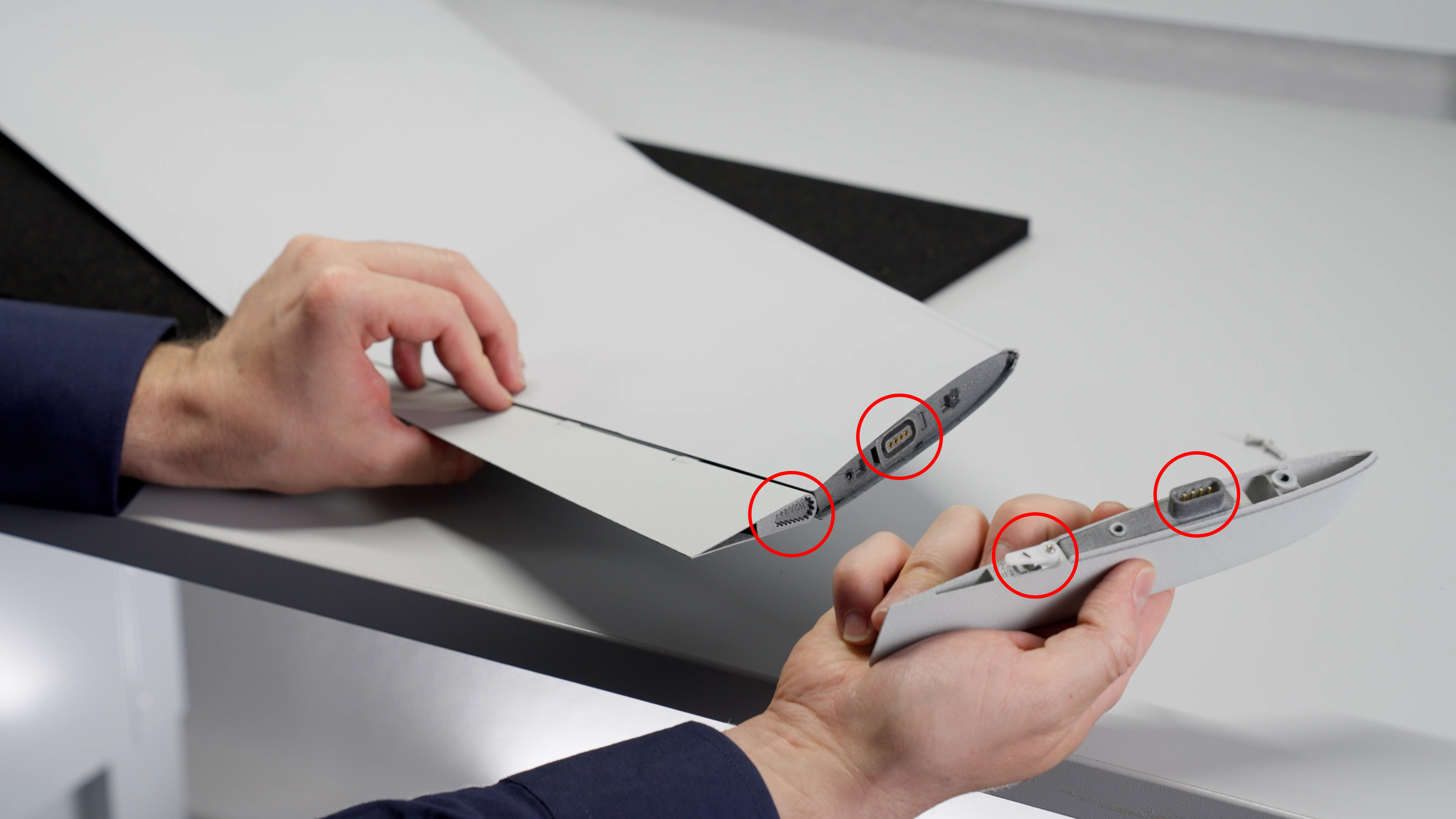

4. Take the new wingtip and attach it to the wing by aligning the connectors and servo arm with the mounting hole on the side of the elevon.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/rY3Iu2PmzmEDc1Vw42I4/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/qmHWej2DBc65JcnDOT4c/image.png" alt=""><figcaption></figcaption></figure>

5. Tighten both screws. Avoid using excessive force to prevent overtightening and potential damage.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/njSLr6kwAotbUjMf3ZH8/image.png" alt=""><figcaption></figcaption></figure>

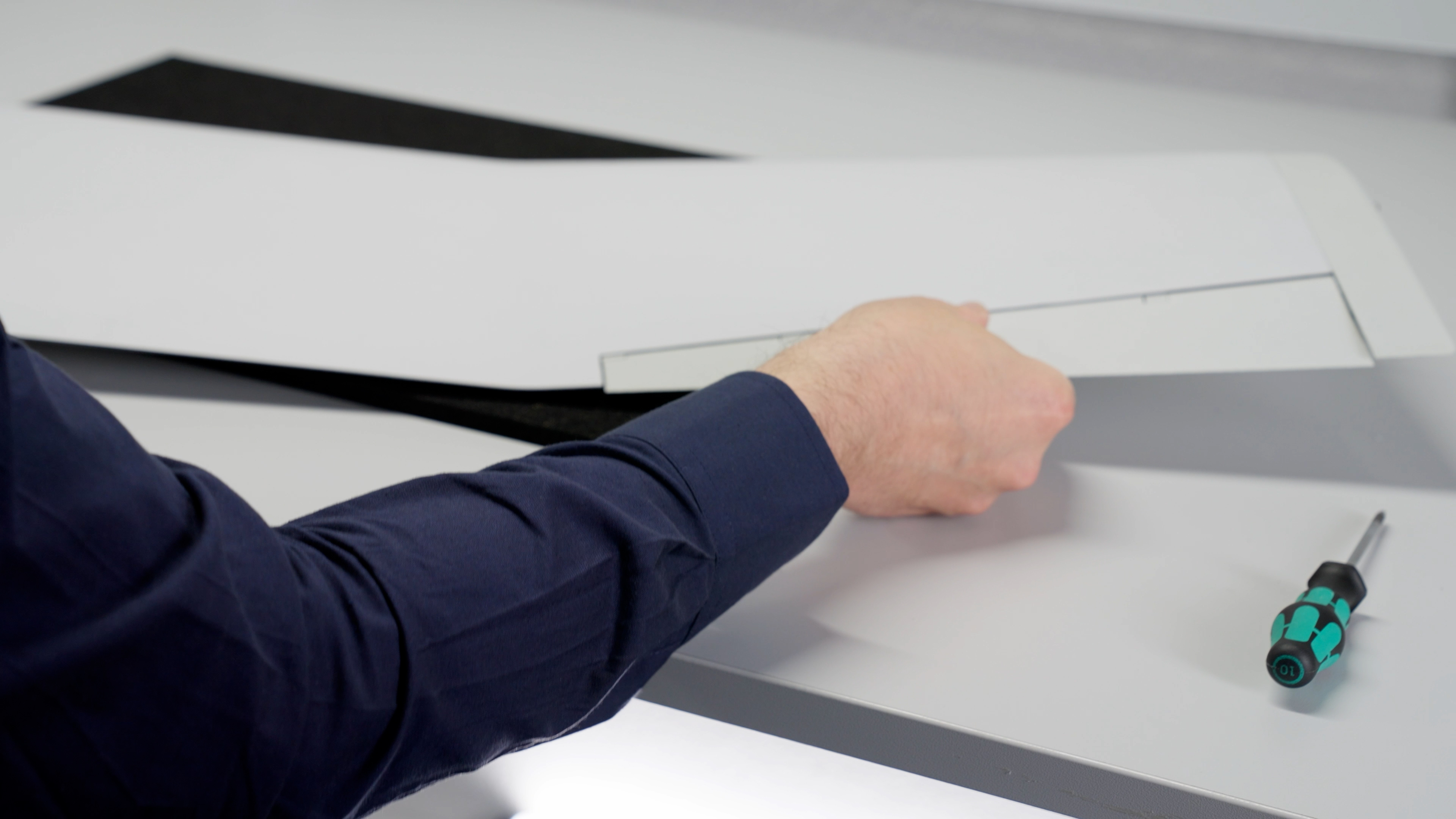

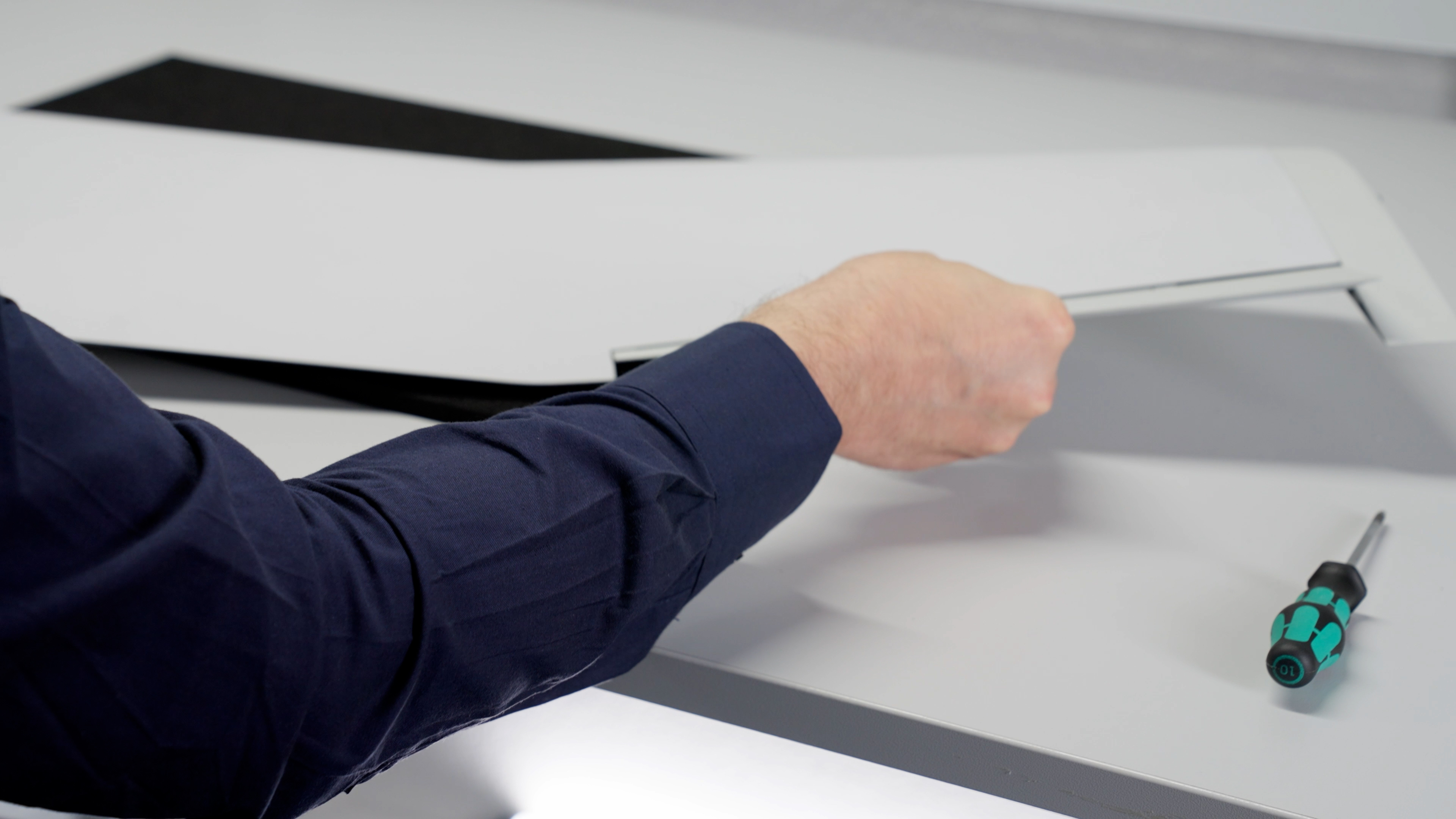

6. Ensure the wing is properly attached and secured. Test the elevon by carefully moving it upwards. The motor of the wingtip servo should produce a sound and offer slight resistance to the movement.

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/L9i8vSzJM8RLqGIGS6IO/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/KBsYYYTTfla4fXzYBpU6/blobs/4Utt30k9j2llNSrA4KfP/image.png" alt=""><figcaption></figcaption></figure>

The wingtip is now installed. Ensure that it is securely aligned and properly set in place. Double-check that all screws are snug but not overtightened to avoid any damage.&#x20;

If you should encounter problems during the installation process please contact **<support@deltaquad.com>** for further assistance.
