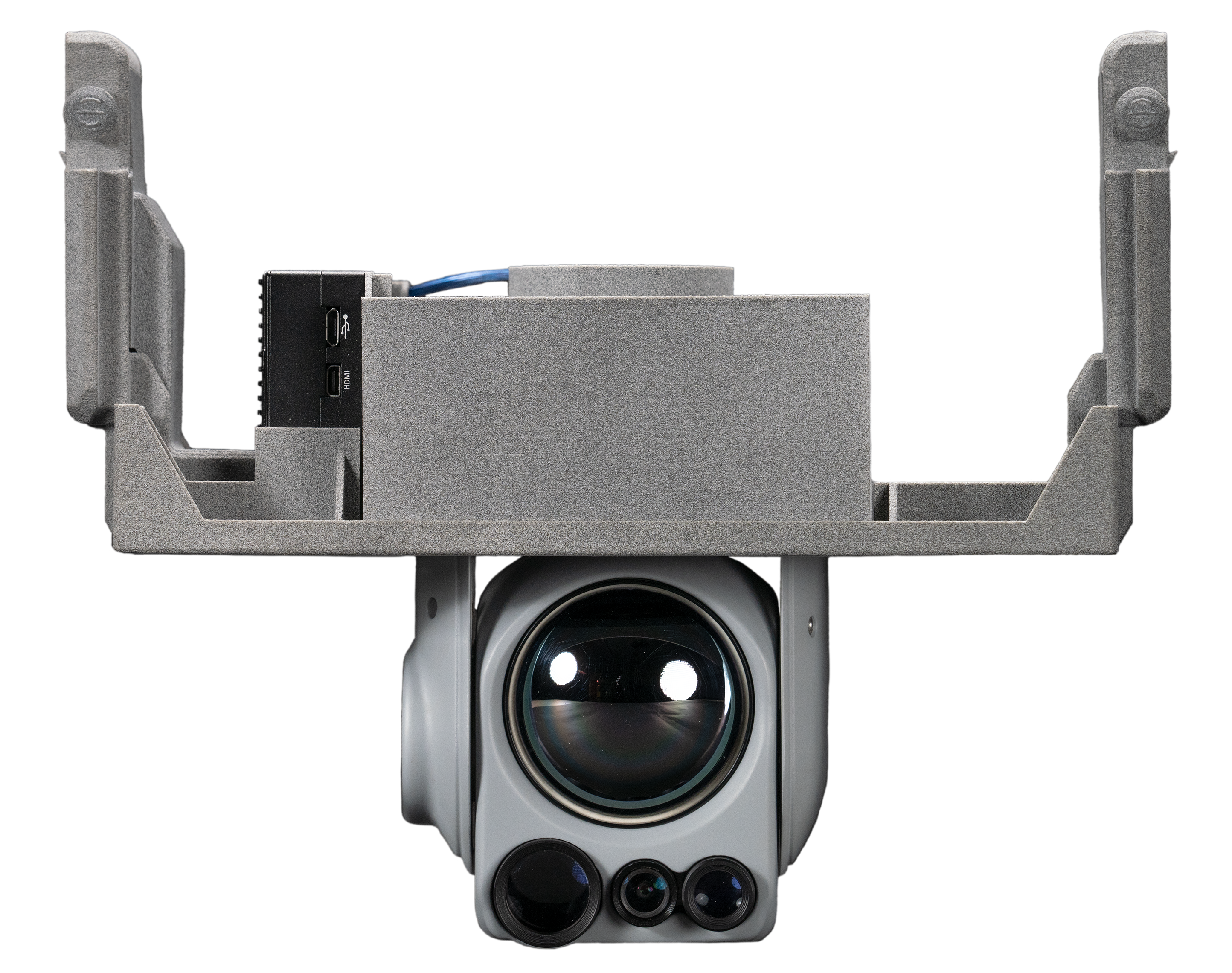

# Raptor

The Raptor is a lightweight long-range dual EO-IR stabilized camera turret. It features a significant IR range increase and a X80 EO zoom.

<figure><img src="https://814155445-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAPQBdKMBlJjf93sVHGiP%2Fuploads%2FHTHoXcWdvMQrSUk1veYF%2FEvo_Payload_NextVision%20Raptor%20360_Front_DSC04469.png?alt=media&#x26;token=9ca8e505-1089-4d54-8de8-df085518252b" alt=""><figcaption></figcaption></figure>

| ZOOM               | X80 (X40 + X2 digital)                  |
| ------------------ | --------------------------------------- |
| FOV                | 60° WFOV – 1.5° NFOV – 0.75° DFOV       |
| THERMAL RESOLUTION | 1280×720                                |
| PITCH FOR          | -45° to +80°                            |
| YAW/ROLL FOR       | -180° to +180° Optional 360° Continuous |
| WEIGHT             | 850 grams                               |
| DIMENSIONS         | D-90mm x H-120mm                        |
