# Configuring your camera

## Camera

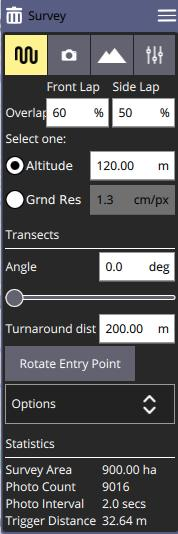

Selecting a known camera from the options dropdown allows you to generate a grid pattern based on the camera's specifications. All RGB cameras supported by the DeltaQuad are listed as known cameras.

* Landscape/Portrait - Specifies the orientation that the camera is placed on the vehicle.
* Image Overlap - This allows you to specify the amount of overlap you want between each image.
* Altitude - Selecting this value allows you to specify the altitude for the survey. The ground resolution will be calculated and shown for the specified altitude.
* Ground resolution - Selecting this value allows you to specify the ground resolution you want for each image. The altitude required to achieve this resolution is calculated and shown.

<figure><img src="/files/SyaBMUfN9cb2HLUGlzkV" alt=""><figcaption></figcaption></figure>

## Custom Camera

The custom camera option is similar to the known camera option. The difference is that you must specify the details for the camera specifications yourself.

* Sensor width/height - The size of the image sensor of the camera.
* Image width/height - The resolution of the image captured by the camera.
* Focal Length - The focal length of the camera lens.

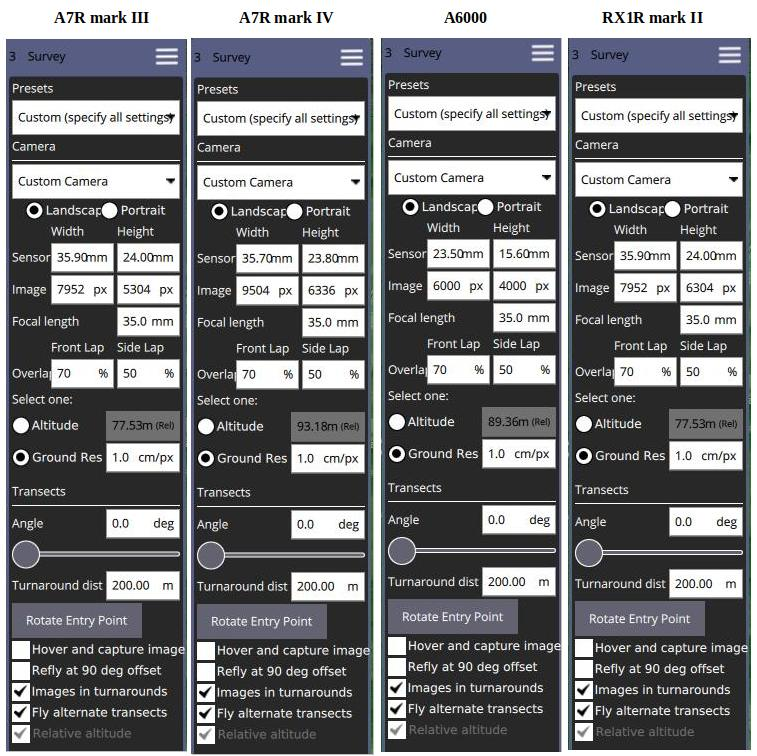

The following camera settings should be used corresponding to your camera model:

<figure><img src="/files/L1iZuvAJP9N8Ocl6v5p1" alt=""><figcaption></figcaption></figure>

## Camera settings

The following guidelines should be followed for Sony cameras:

<figure><img src="/files/K3jn6KnFxnnEJvJbI5if" alt=""><figcaption></figcaption></figure>

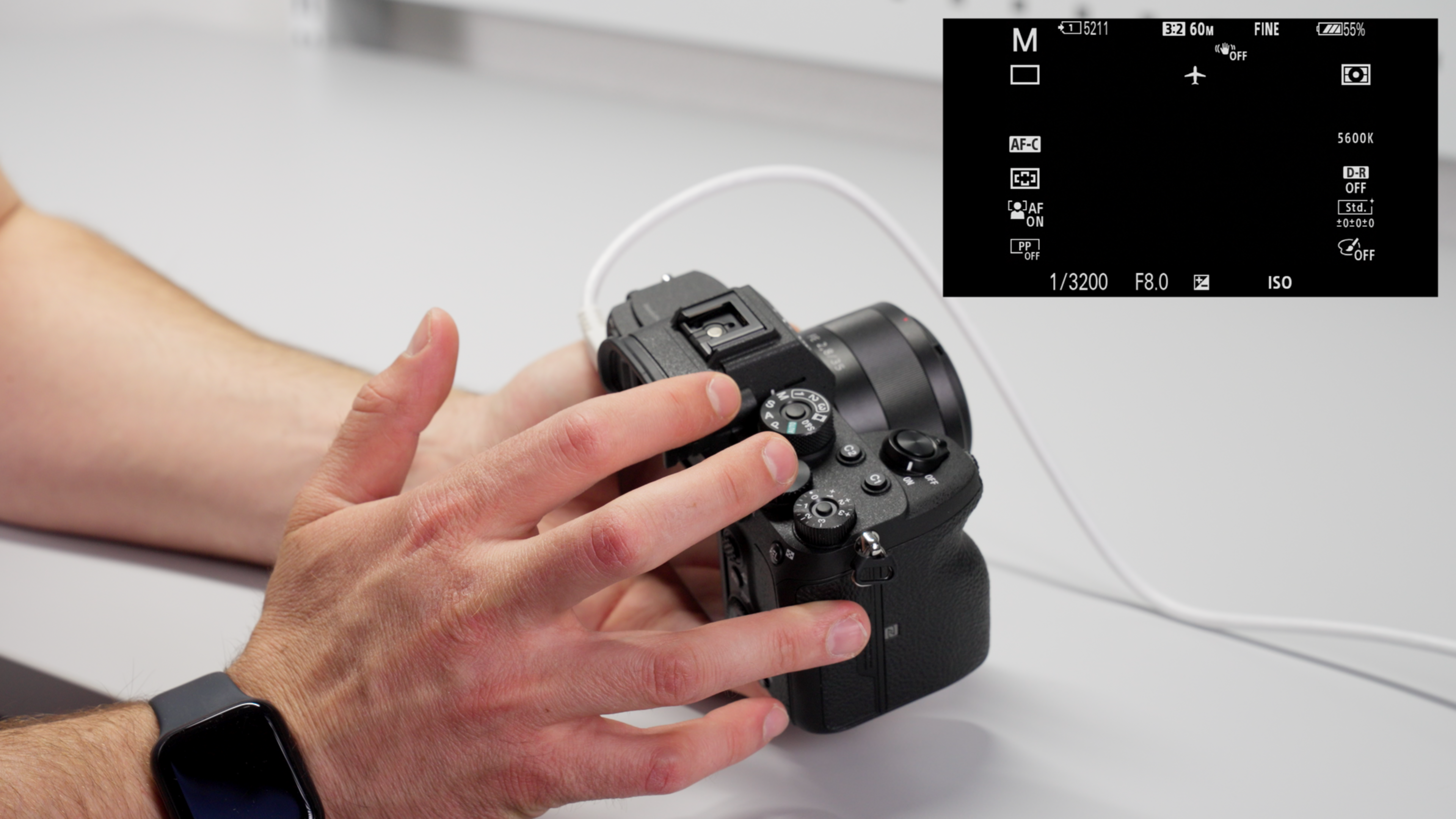

1. Set mode dial to "M"

<figure><img src="/files/302KnBiOQ6bSNzqbCMBx" alt=""><figcaption><p>Mode Dial: M</p></figcaption></figure>

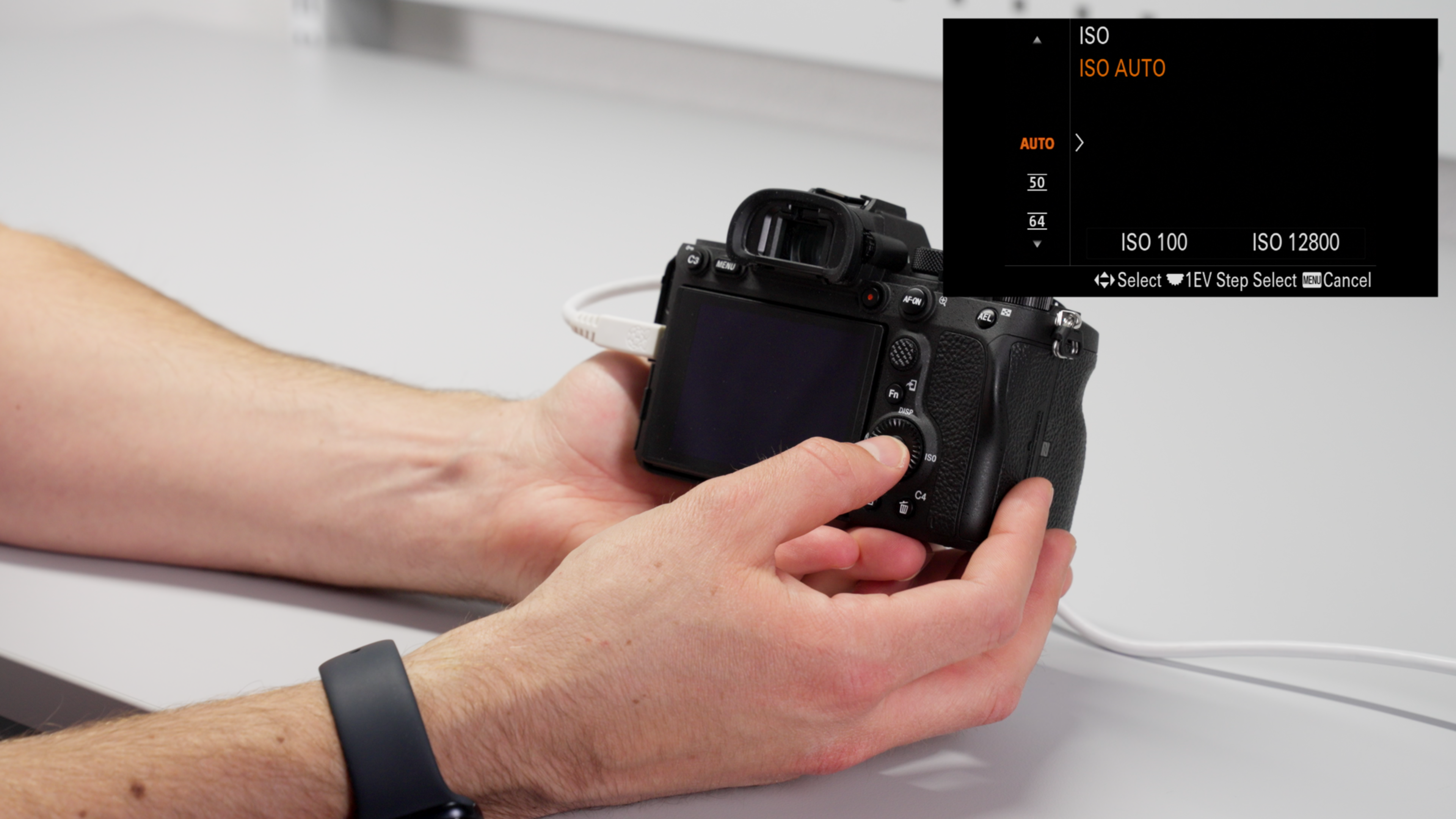

2. Set ISO to "Auto"

<figure><img src="/files/JWd099E8CkKhiOcRGeGQ" alt=""><figcaption></figcaption></figure>

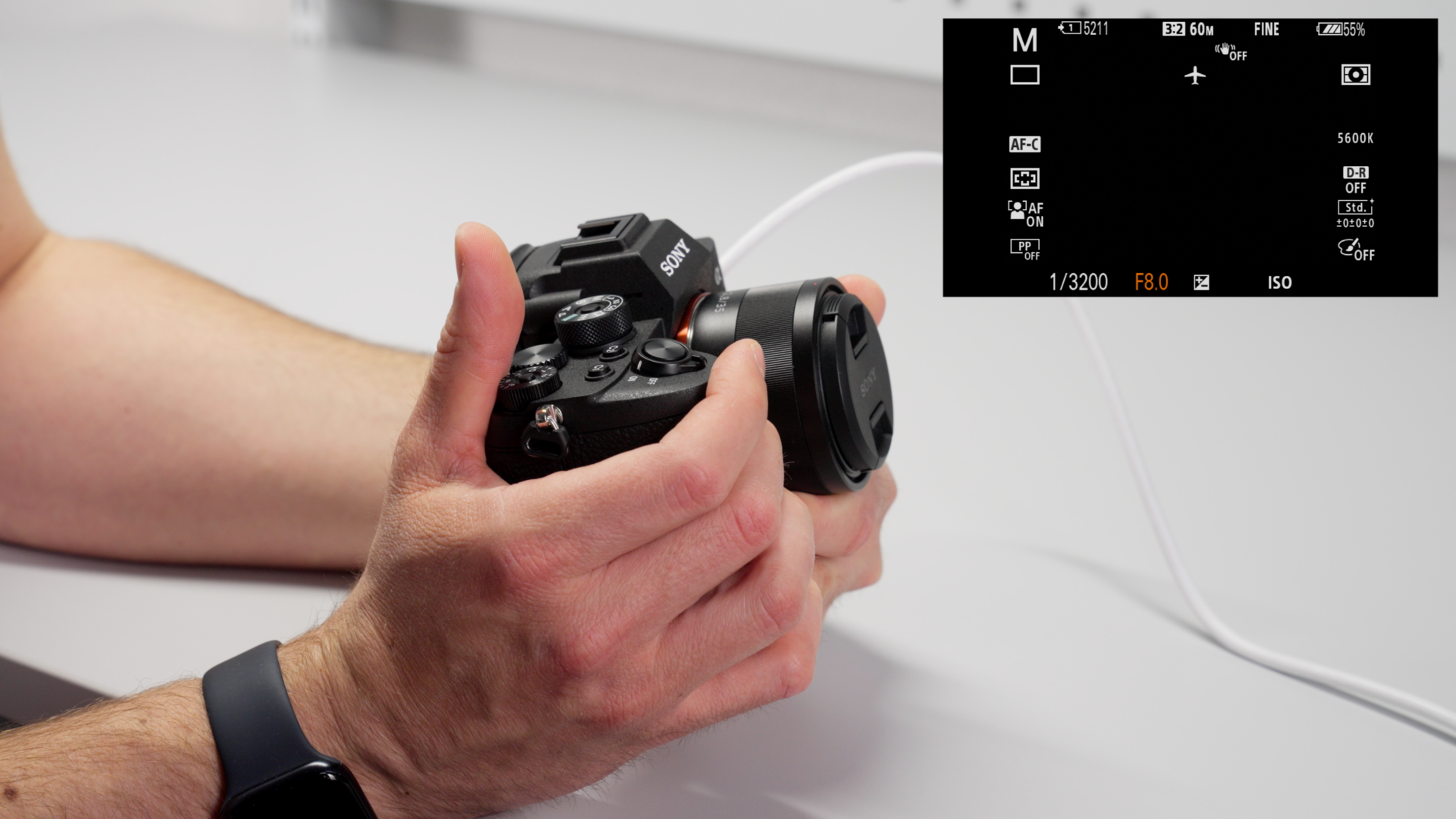

3. Set Aperture to "F8.0"

<figure><img src="/files/e55QQgplSiiBNXY2lRMO" alt=""><figcaption></figcaption></figure>

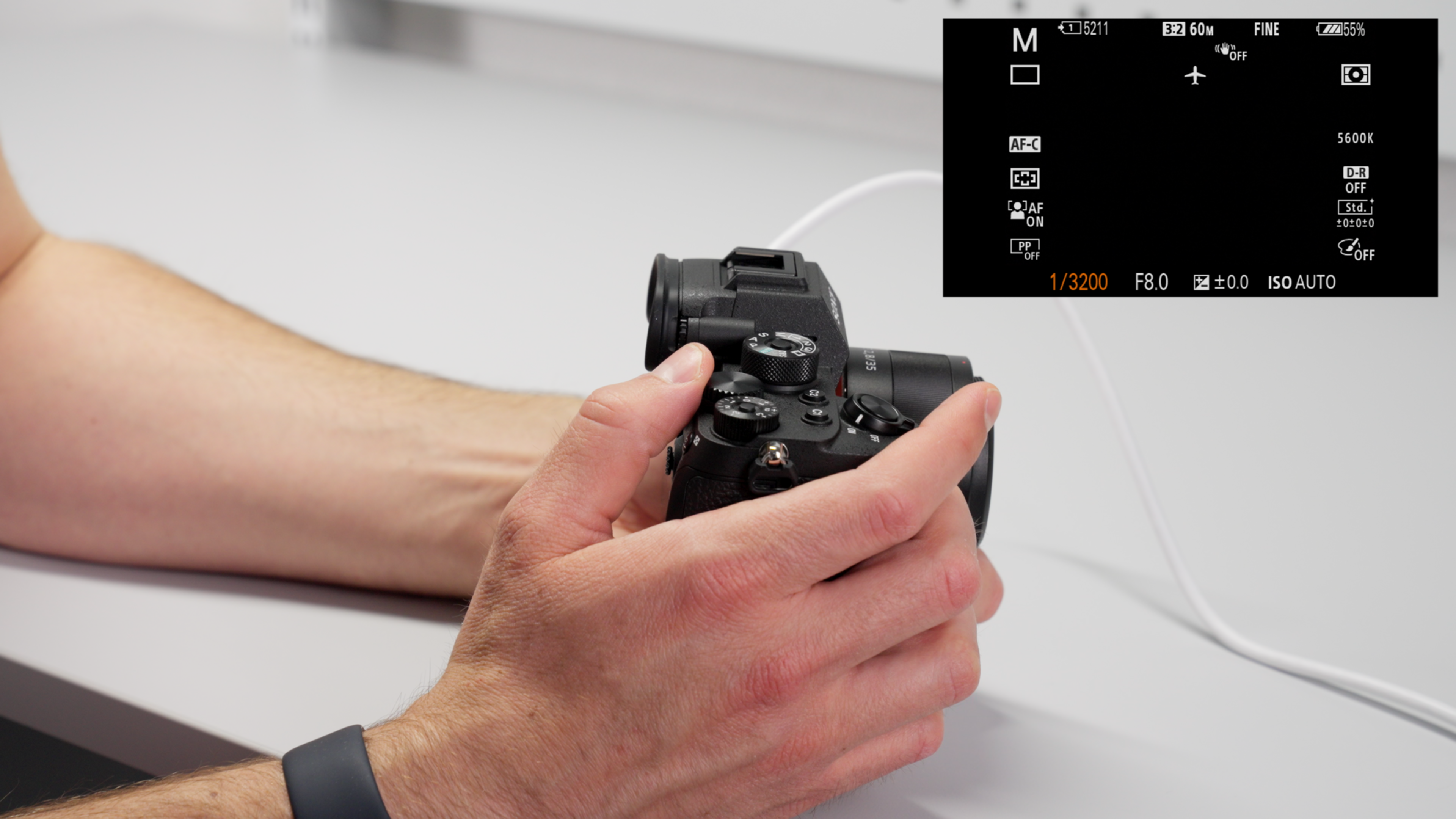

4. Set Shutter Speed to:

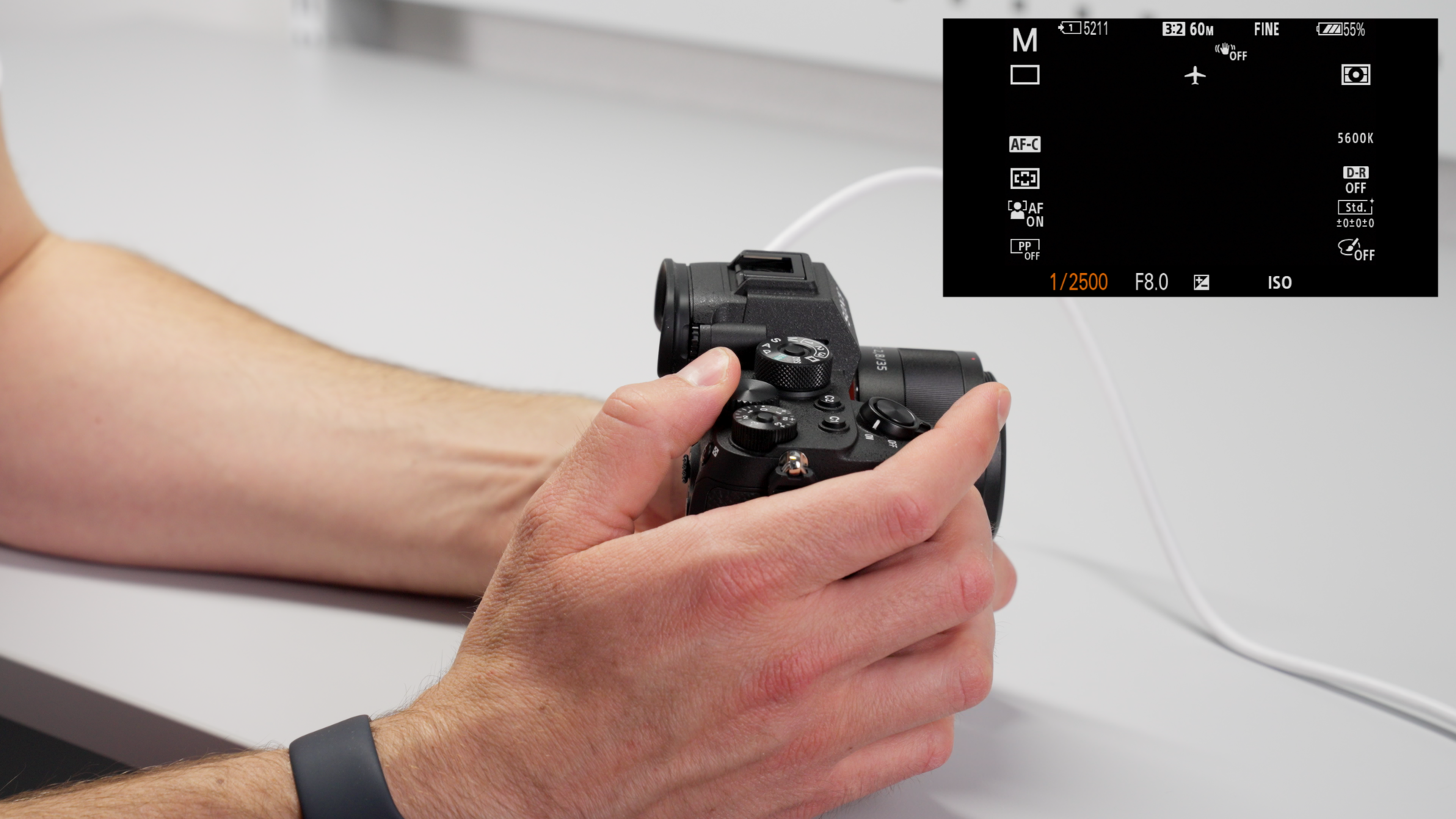

<figure><img src="/files/7CniHQNZv9DRu4IxclU0" alt=""><figcaption><p>Shutter Speed: <strong>1/2500 (Low Light)</strong></p></figcaption></figure>

<figure><img src="/files/hk5DKA5eVJn1jnIIiSNj" alt=""><figcaption><p>Shutter Speed: <strong>1/3200 (Medium Light)</strong></p></figcaption></figure>

<figure><img src="/files/6OyXJjKLSSYFDRKW0r0a" alt=""><figcaption><p>Shutter Speed: <strong>1/4000 (High Light)</strong></p></figcaption></figure>

5. Set File Format to "JPEG"
6. Set RAW File Type to "Compressed"
7. Set JPEG Image Size to "L:60M"
8. Set Aspect Ratio to "3:2"

<figure><img src="/files/j5H1APfE5x1J1NpEr2aO" alt=""><figcaption></figcaption></figure>

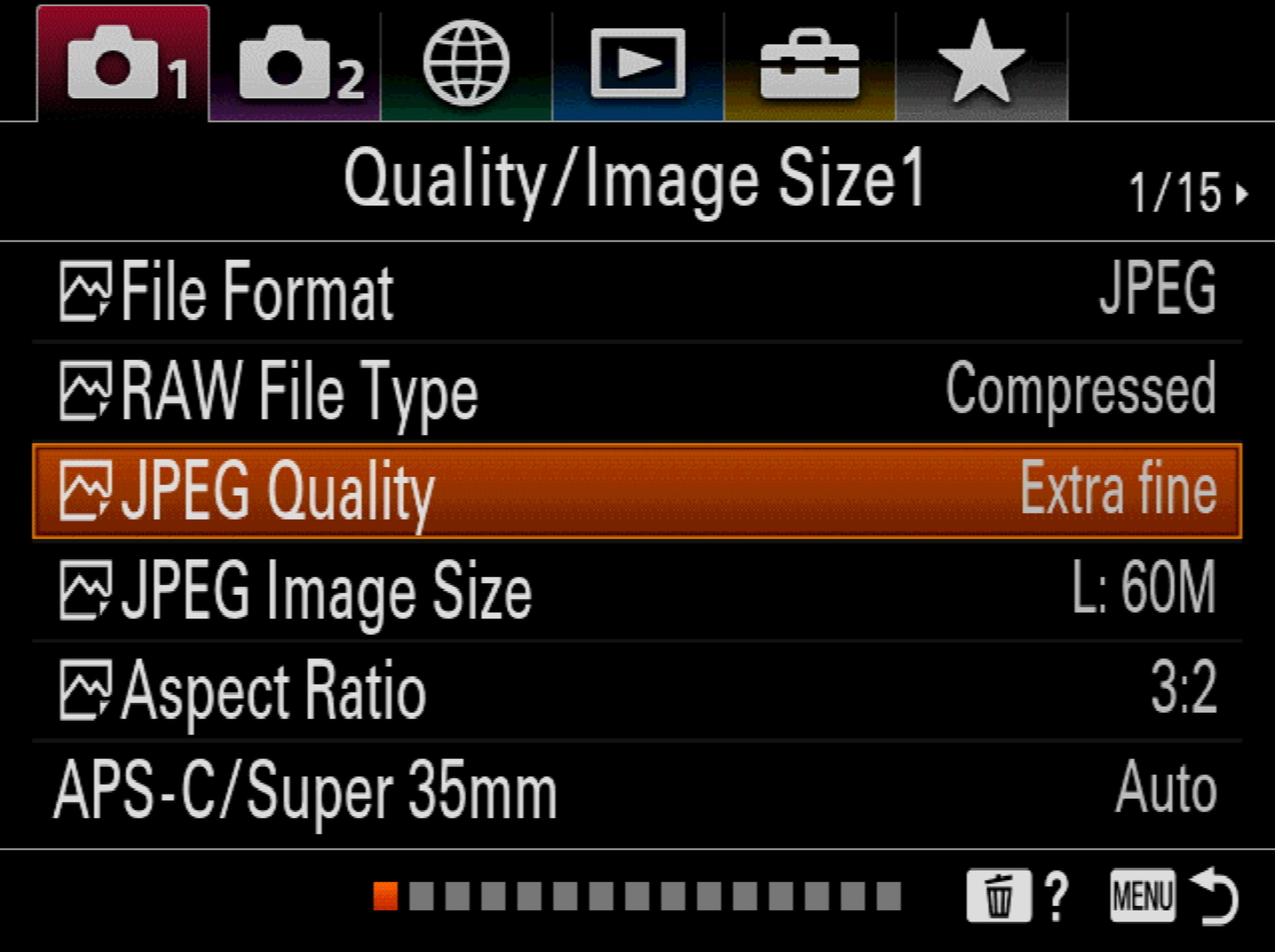

9. Set JPEG Quality to "Extra Fine"

<figure><img src="/files/Xen1WWAgU3j5NdN4W3EI" alt=""><figcaption></figcaption></figure>

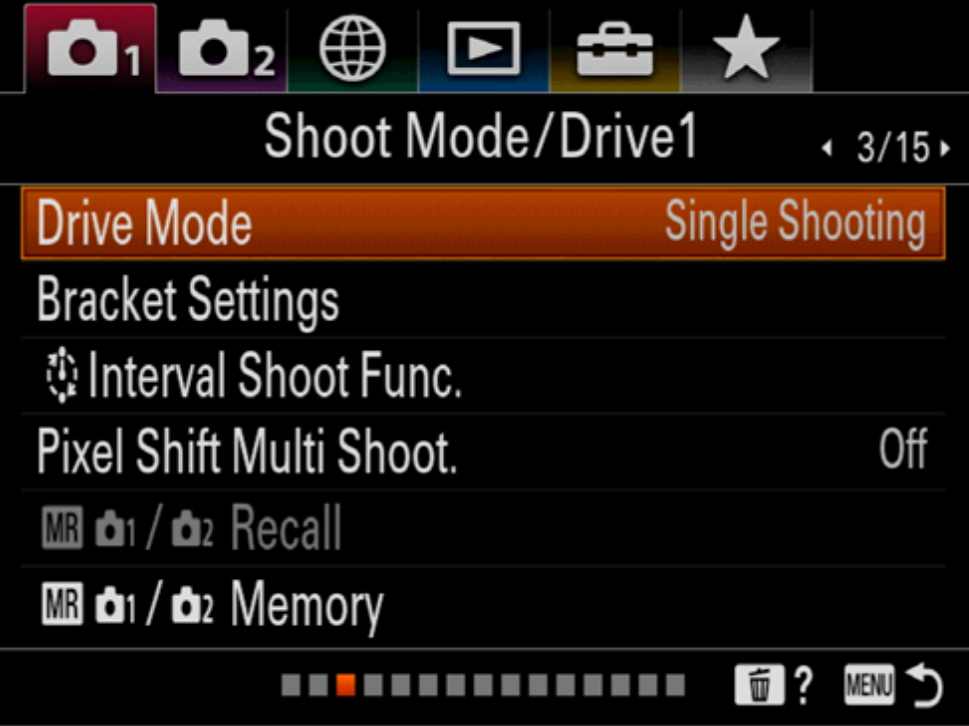

10. Set Drive Mode to "Single Shooting"

<figure><img src="/files/HBPXCAyyJbLINZ2HN3XD" alt=""><figcaption></figcaption></figure>

11. Set Focus Mode to Manual Focus to enable the Focus Ring

<figure><img src="/files/WxK2HHVUmvLNStVgnJZx" alt=""><figcaption></figcaption></figure>

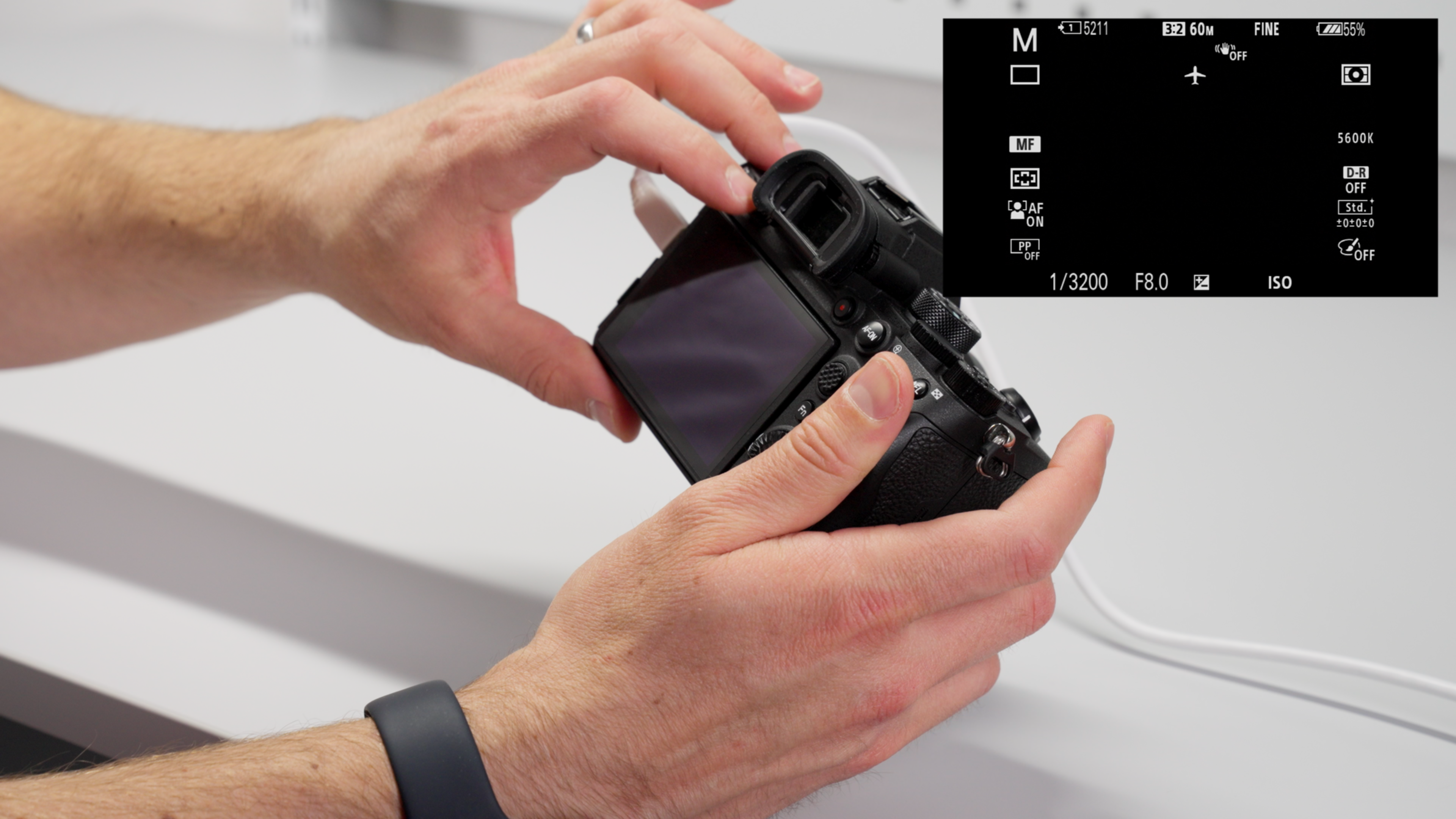

12. Click on the "Menu" button

<figure><img src="/files/0arqgpC3KJVhISp3MjLv" alt=""><figcaption></figcaption></figure>

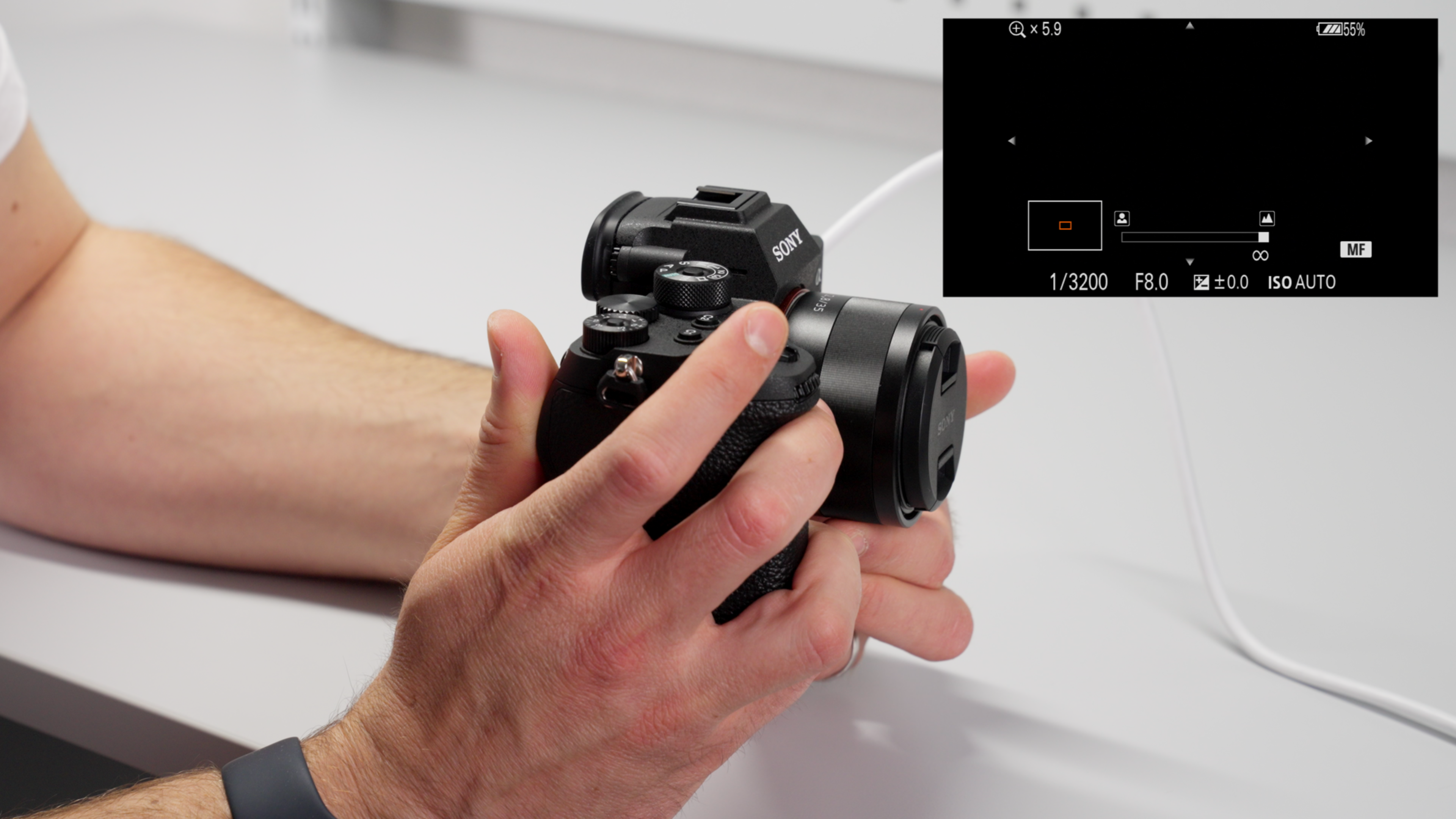

13. Rotate the Focus Ring till you reach "Infinity Focus"

<figure><img src="/files/Lu9kjQs5n5VDHc0brE8B" alt=""><figcaption></figcaption></figure>

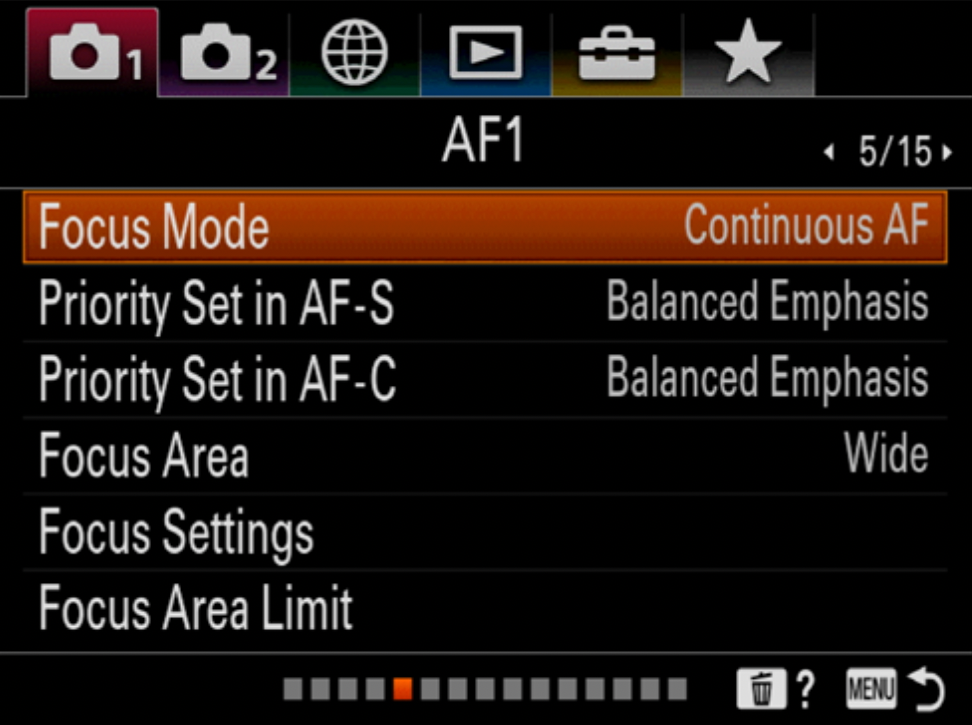

14. Click on the menu button again, and switch from Manual Focus to Continuous "Auto Focus"

<figure><img src="/files/SfHwmBKWYihkoeaqqMHx" alt=""><figcaption></figcaption></figure>

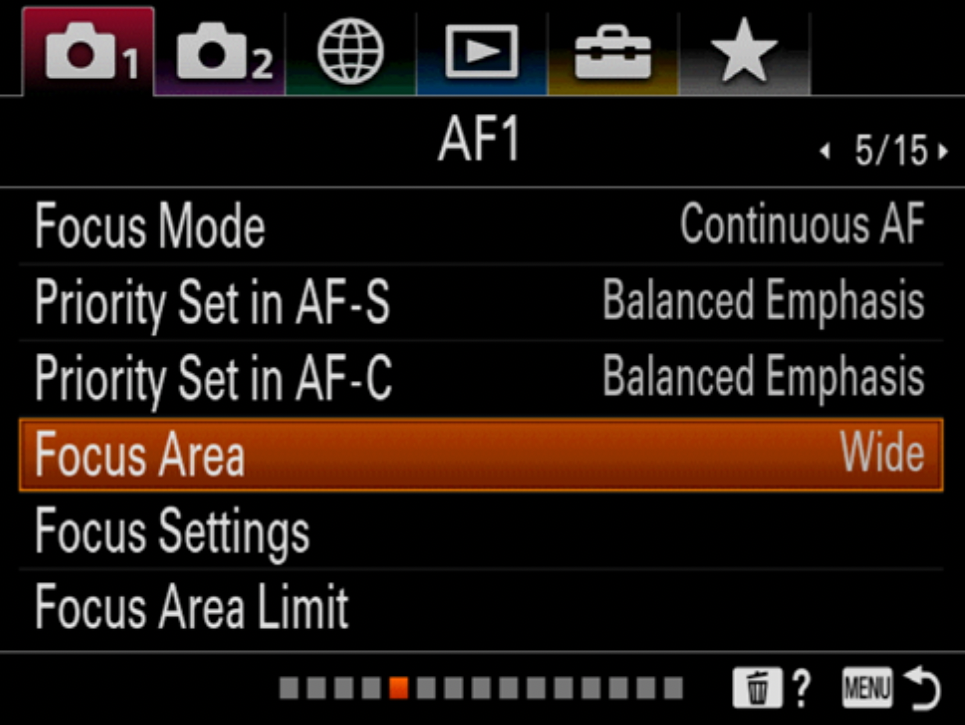

15. Set Focus Area to "Wide"

<figure><img src="/files/gpJh3toFbufJ0nWeaM7C" alt=""><figcaption></figcaption></figure>

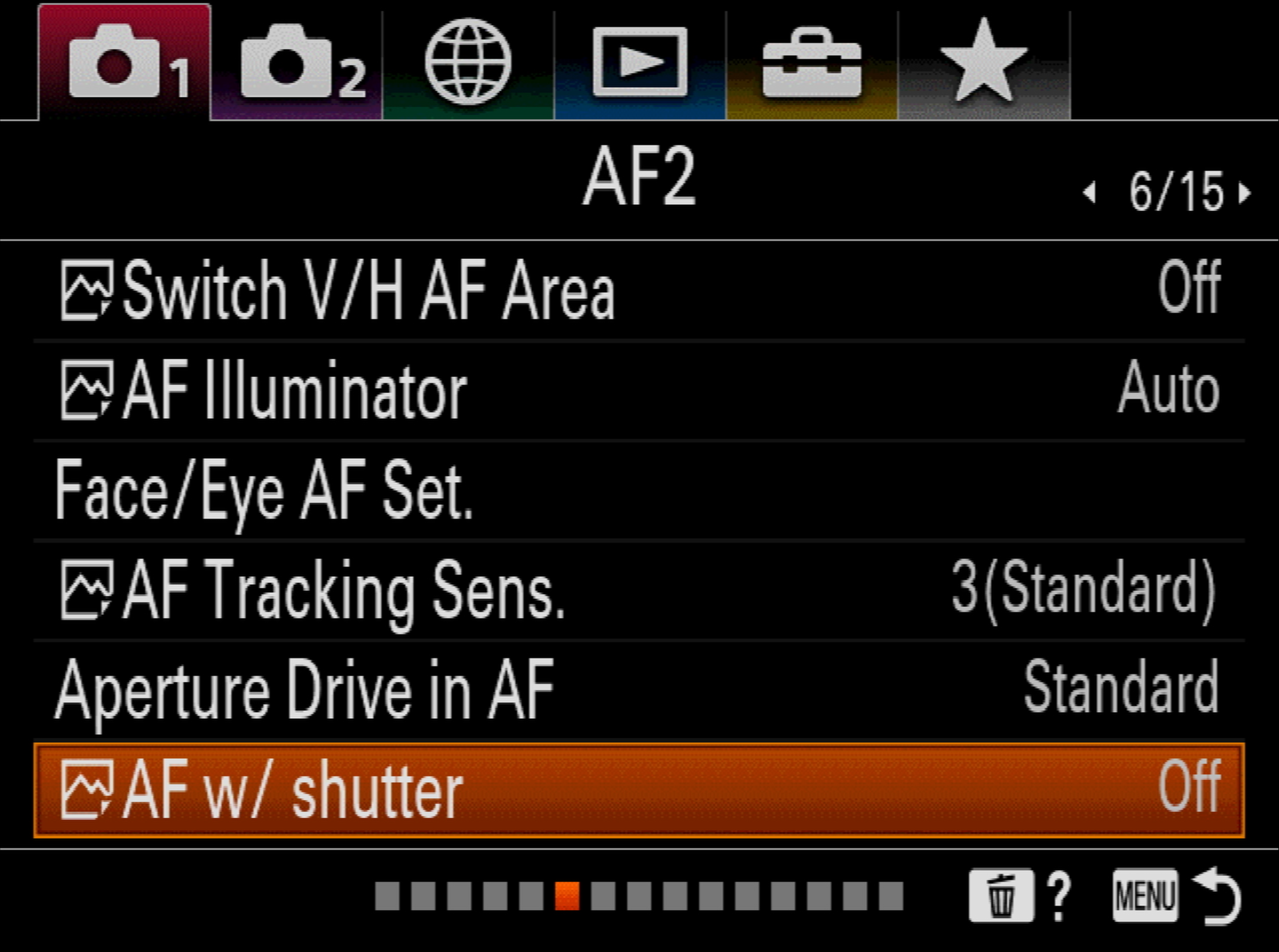

16. Set AF w/ shutter to "Off"

<figure><img src="/files/uuCoUPGXUSZivr1QBuAD" alt=""><figcaption></figcaption></figure>

17. Manually set white balance suitable for scene (The standard temperature for outdoor natural light is 5600K)

<figure><img src="/files/OFIwYtgwJEvVYW63Am4u" alt=""><figcaption></figcaption></figure>

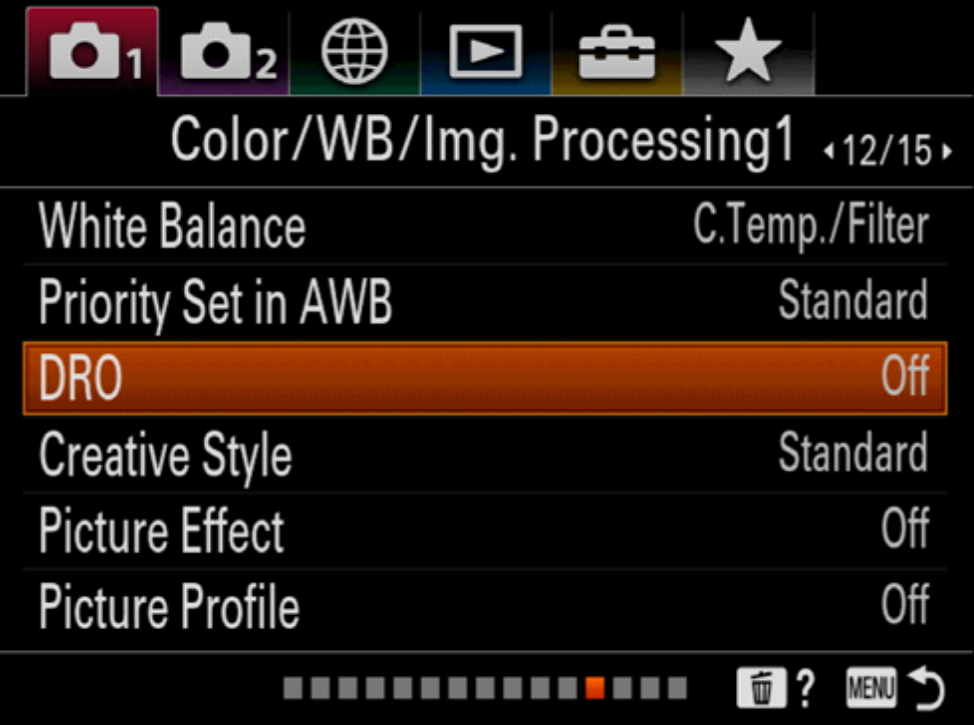

18. Set DRO to "Off"

<figure><img src="/files/n7oIHXXihlQ8xy8UbLpk" alt=""><figcaption></figcaption></figure>

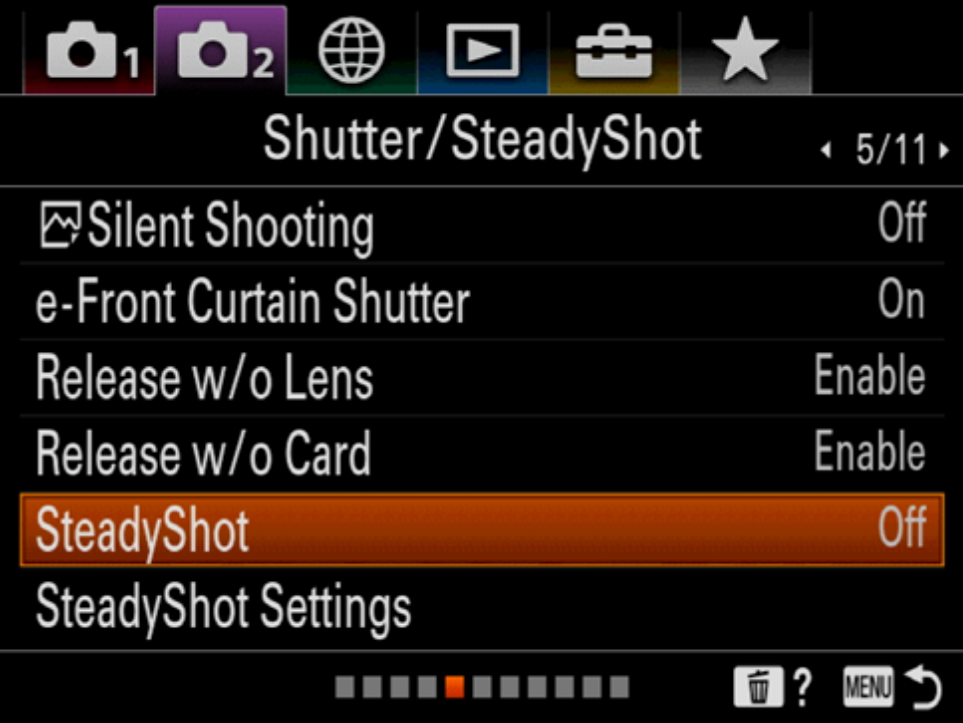

19. Set SteadyShot to "Off"

<figure><img src="/files/LTDHt8UQ4kTryRs61ahu" alt=""><figcaption></figcaption></figure>

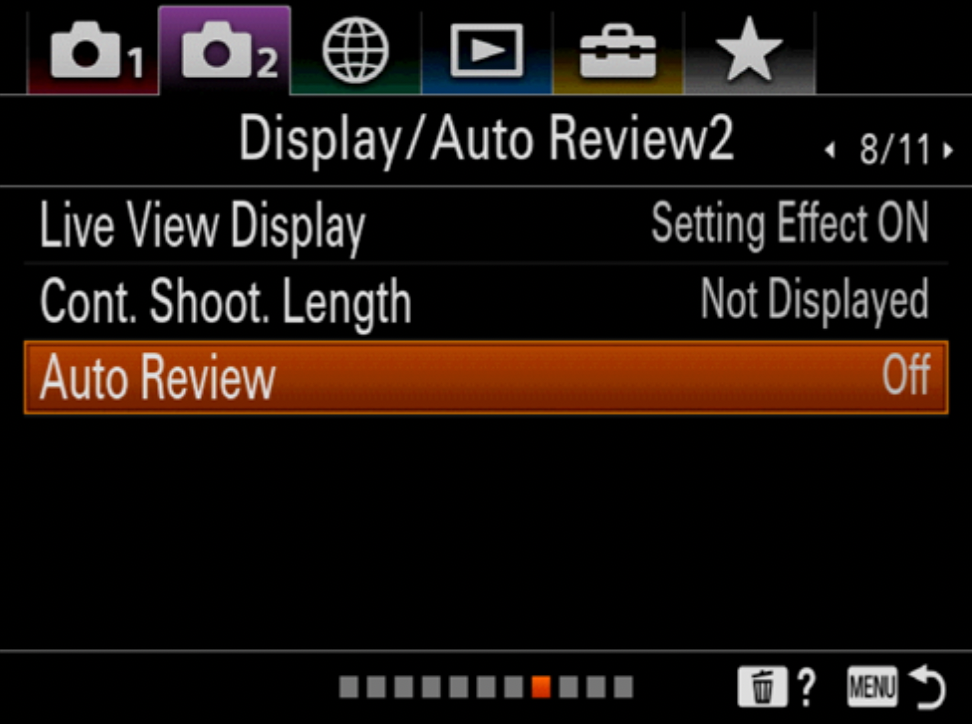

20. &#x20;Set Auto Review to "Off"

<figure><img src="/files/tuTnGUuU47sqHy4QjZLR" alt=""><figcaption></figcaption></figure>

21. Set Airplane Mode to "On"

<figure><img src="/files/syeFwOOQwV3cRHbTLBbd" alt=""><figcaption></figcaption></figure>

## Agrowing A7R4 QUAD

For the Agrowing A7R4 QUAD, a custom camera must be selected using the following settings:

<figure><img src="/files/iggHhjjzfmtqU5aR5Mmf" alt=""><figcaption></figcaption></figure>

For the Agrowing A7R4 QUAD camera please use the following settings:

* Set focus to Automatic Continuous (AF-C)
* Set AF on Shutter to OFF
* Set the camera to single-shooting mode
* Set Auto Review to OFF
* Set Focus Area to Wide
* Set Quality to Extra fine(for JPEG only)
* Set mode dial to Shutter Priority
* Set DRO to OFF
* Set Steady shot to OFF
* Set Release w/o Lens to Enable
* Set Release w/o Card to Disable
* Set Airplane mode to ON
* Set Pwr Save Start Time to 30min
* Set White balance to Auto
* Set shutter time to 1/1000 – 1/3200
* Set ISO to auto


---
